Evaluation of the contour of edentulous jaw sections in the transversal plane and the buccolingual vertical-level disparity in CBCT and panoramic radiography images: a retrospective comparative study

Ali Reza Ketabi  1   2 , Andree Piwowarczyk  3 , Matthias Christian Schulz  4 , Hans-Christoph Lauer  5 , Stefan Hassfeld  6
Affiliations
Comparative Study

Evaluation of the contour of edentulous jaw sections in the transversal plane and the buccolingual vertical-level disparity in CBCT and panoramic radiography images: a retrospective comparative study

Ali Reza Ketabi et al. Int J Implant Dent. .

Abstract

Purpose: This study investigates whether edentulous jaw sections in the planned implant position exhibit jaw contours funnel-shaped or exhibit pronounced retraction of the jaw (unusual jaw contours) in the transversal plane of the three-dimensional (3D) images, not visible in two-dimensional (2D) images.

Methods: A total of 335 patients with an edentulous section of the jaw that required dental implants were selected. Anonymised radiologic patients' data were collected, comprising cone-beam computed tomography (CBCT) images of the edentulous jaw sections. In the first stage, unusual jaw contours were examined, including funnel-shaped or pronounced retraction of the jaw and hypodense regions with an undercut and/or bone deficit. In the second stage, the variation in the height of the alveolar ridge between the lingual and buccal contour in the edentulous jaw sections was assessed.

Results: The CBCT images of an unusual jaw contour were observed in 8 cases (2.4%) in the maxilla on the left and 10 cases (3%) in the maxilla on the right. In the mandible, a jaw contour deviates in 39 cases (12.1%) on the left side and 39 cases (12.1%) on the right side. A height difference was detected in the upper jaw in 307 cases and the lower jaw in 265 cases. The discrepancy was 2.09 mm (± 2.25 mm) in the maxilla and 3.97 mm (± 3.45 mm) in the mandible.

Conclusions: The CBCT scan provides useful information to avoid complications in the preoperative planning phase and surgical planning in implant dentistry.

Keywords: Alveolar ridge contour; Available bone width; Cone-beam computed tomography; Dental implant; Diagnosis/clinical assessment; Lingual undercuts; Submandibular fossa.

PubMed Disclaimer

Conflict of interest statement

Ali Reza Ketabi, Andree Piwowarczyk, Matthias C. Schulz, Hans-Christoph Lauer and Stefan Hassfeld hereby declare that they have no conflict of interests.

Figures

Fig. 1
Fig. 1
A Initial panoramic radiography of the left mandible; B the determination of the planned implants in regions 34–37 using an orientation template
Fig. 2
Fig. 2
The same patient’s (Fig. 1) CBCT with the virtually planned implant in region 37 showed inconspicuous jaw contour
Fig. 3
Fig. 3
CBCT with virtually planned implant planning in region 35 showing a funnel-shaped contour of the jaw and a pronounced retraction of the jaw contour from the lingual side. The funnel-shaped jaw contour is invisible in the panoramic radiography. Perforation of the jaw can be prevented through CBCT images
Fig. 4
Fig. 4
Panoramic radiography image showing A a distinct hypodense lesion and B a translucent area. The depiction of the same region in CBCT (C)
Fig. 5
Fig. 5
CBCT coronally slice: A and B lingual and buccal lines parallel to the implant axis, C and D lines perpendicular to A and B in order to determine the vertical distance (VD), K jawbone, I of the virtually planned implant
Fig. 6
Fig. 6
Frequency distribution of the height discrepancy of the maxilla calculated in 1-mm steps
Fig. 7
Fig. 7

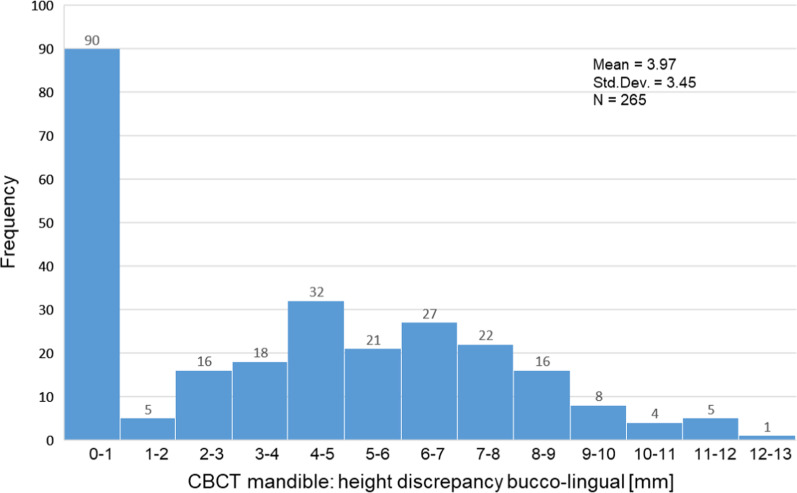

Frequency distribution of the height discrepancy of the mandible calculated in 1-mm steps
