. 2022 Dec 30;16(1):361.
doi: 10.3390/ma16010361.

Analysis of Influencing Factors of Cementitious Material Properties of Lead-Zinc Tailings Based on Orthogonal Tests

Ziyi Yin  1 , Rui Li  1 , Hang Lin  1 , Yifan Chen  1 , Yixian Wang  2 , Yanlin Zhao  3
Affiliations

Analysis of Influencing Factors of Cementitious Material Properties of Lead-Zinc Tailings Based on Orthogonal Tests

Ziyi Yin et al. Materials (Basel). .

Abstract

At present, the treatment of tailings is mostly carried out in the form of stacking in tailings ponds, resulting in a huge waste of mineral resources and a major threat to the environment and ecology. Using tailings instead of a part of the cement to make cementitious materials is an effective way to reduce the accumulation of tailings. In this paper, lead-zinc tailings-based cementitious materials were prepared by using lead-zinc tailings, fly ash, and ordinary Portland cement, and the effects of four factors on the mechanical properties of lead-zinc tailings, as well as fly ash content, cement content, and water-binder ratio were studied by orthogonal experiments. The corresponding relationship between the factors and the properties of cementitious materials was determined, and the optimization and prediction of the raw material ratio of lead-zinc tailings-based cementitious materials were realized. The test showed the ratio of raw materials to be at the lowest price ratio. Synchronously the ratio that meets the minimum strength requirements was predicted. When the proportion of fly ash:lead and zinc tailings:cement = 30:40:30 and the water-binder ratio was 0.4, the predicted compressive strength of the prepared cementitious material achieved 22.281 MPa, which meets the strength requirements, while the total content of lead-zinc tailings and fly ash was the highest at this time.

Keywords: cementitious material; compressive strength; lead–zinc tailings; orthogonal experimental design; response surface analysis.

PubMed Disclaimer

Conflict of interest statement

On behalf of all authors, the corresponding author states that there are no conflict of interest.

Figures

Figure 1
Figure 1
Particle size distribution curve of Pb–Zn tailings.
Figure 2
Figure 2
XRD patterns of lead–zinc tailings samples.
Figure 3
Figure 3

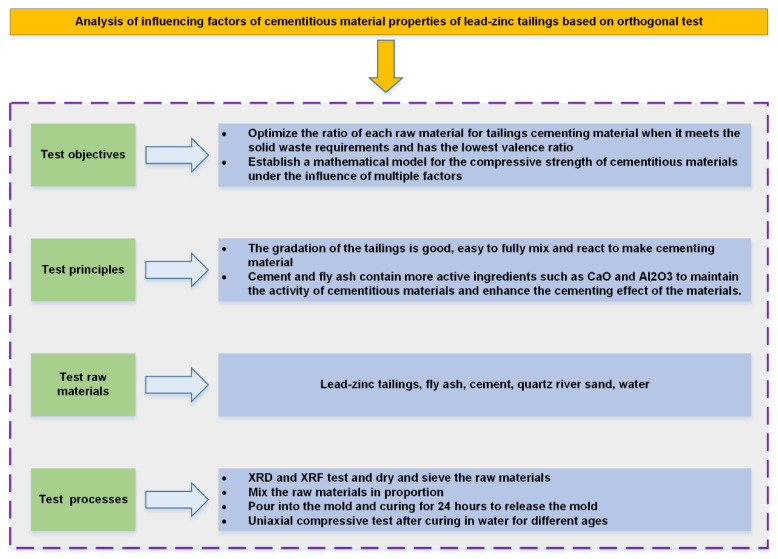

Test Design.
Figure 4
Figure 4

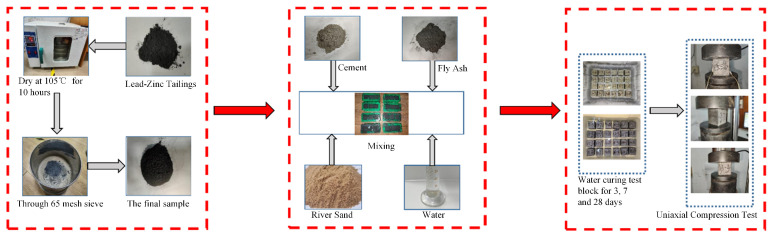

Test procedures.
Figure 5
Figure 5

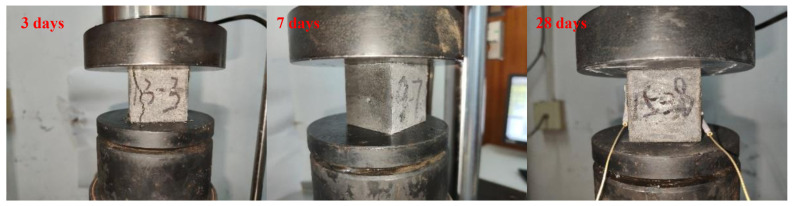

Uniaxial compressive strength test of 3 days, 7 days, and 28 days test block curing.
Figure 6
Figure 6
The change diagram of compressive strength at 3 days, 7 days, and 28 days curing of each factor.
Figure 7
Figure 7
Comparison of predicted and actual values of compressive strength for different curing days.
Figure 7
Figure 7
Comparison of predicted and actual values of compressive strength for different curing days.
Figure 8
Figure 8
Effect of AB on compressive strength.
Figure 9
Figure 9
Effect of BC on compressive strength.
See this image and copyright information in PMC
