Beyond sequence: Structure-based machine learning

Abstract

Recent breakthroughs in protein structure prediction demarcate the start of a new era in structural bioinformatics. Combined with various advances in experimental structure determination and the uninterrupted pace at which new structures are published, this promises an age in which protein structure information is as prevalent and ubiquitous as sequence. Machine learning in protein bioinformatics has been dominated by sequence-based methods, but this is now changing to make use of the deluge of rich structural information as input. Machine learning methods making use of structures are scattered across literature and cover a number of different applications and scopes; while some try to address questions and tasks within a single protein family, others aim to capture characteristics across all available proteins. In this review, we look at the variety of structure-based machine learning approaches, how structures can be used as input, and typical applications of these approaches in protein biology. We also discuss current challenges and opportunities in this all-important and increasingly popular field.

Keywords: Deep learning; Machine learning; Protein structures.

Graphical abstract

Fig. 1

Common steps in structure-based machine learning. A) Starting from a set of protein sequences, structural models can either be retrieved from the PDB or constructed using computational approaches. B) A number of different feature extraction, feature engineering, or pre-trained embedding approaches can then be used C) to extract a matrix representation of the input, with the rows as data points and columns representing features or embedding values. D) This matrix forms the input for ML models resulting in predictions of classes, regression values, or unsupervised clustering and dimensionality reduction. E) Prediction results, combined with the trained model, can be used to inspect and interpret regions of the protein structure relevant for the task at hand.

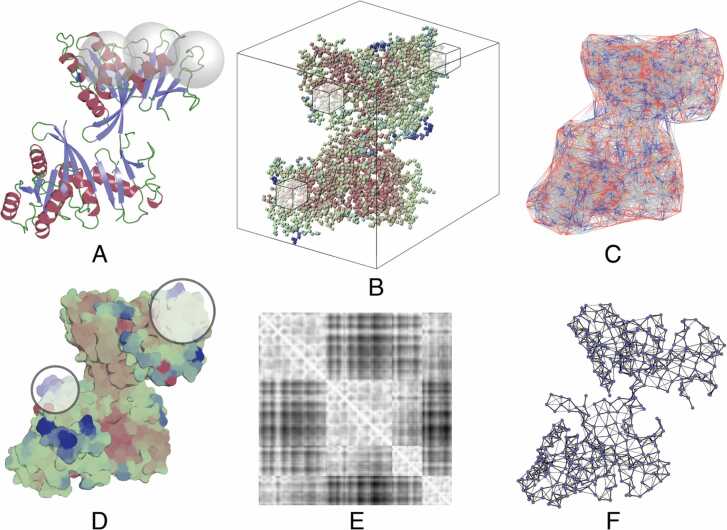

Fig. 2

Different approaches for computational representation of a protein structure which go beyond features of individual residues. For A-D features or representations calculated across individual blocks (respectively: spheres, grids, polyhedra, surface patches) are used as input to ML, while for E-F, the entire matrix or graph is often used in methods specifically designed for these kinds of inputs. A Overlapping spheres B 3D voxel grids C Geometric tesselations D Molecular surface representations E Distance/contact maps F Graph representations.
