. 2023 Jan 9;28(2):650.
doi: 10.3390/molecules28020650.

Visible-Light-Enhanced Antibacterial Activity of Silver and Copper Co-Doped Titania Formed on Titanium via Chemical and Thermal Treatments

Kanae Suzuki  1 , Misato Iwatsu  2 , Takayuki Mokudai  3 , Maiko Furuya  2 , Kotone Yokota  2 , Hiroyasu Kanetaka  2 , Masaya Shimabukuro  4 , Taishi Yokoi  4 , Masakazu Kawashita  4
Affiliations

Visible-Light-Enhanced Antibacterial Activity of Silver and Copper Co-Doped Titania Formed on Titanium via Chemical and Thermal Treatments

Kanae Suzuki et al. Molecules. .

Abstract

Dental implants made of titanium (Ti) are used in dentistry, but peri-implantitis is a serious associated problem. Antibacterial and osteoconductive Ti dental implants may decrease the risk of peri-implantitis. In this study, titania (TiO2) co-doped with silver (Ag) at 2.5 at.% and copper (Cu) at 4.9 at.% was formed on Ti substrates via chemical and thermal treatments. The Ag and Cu co-doped TiO2 formed apatite in a simulated body fluid, which suggests osteoconductivity. It also showed antibacterial activity against Escherichia coli, which was enhanced by visible-light irradiation. This enhancement might be caused by the synergistic effect of the release of Ag and Cu and the generation of •OH from the sample. Dental implants with such a Ag and Cu co-doped TiO2 formed on their surface may reduce the risk of peri-implantitis.

Keywords: antibacterial activity; copper; silver; titania; visible-light-responsive photocatalysis.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

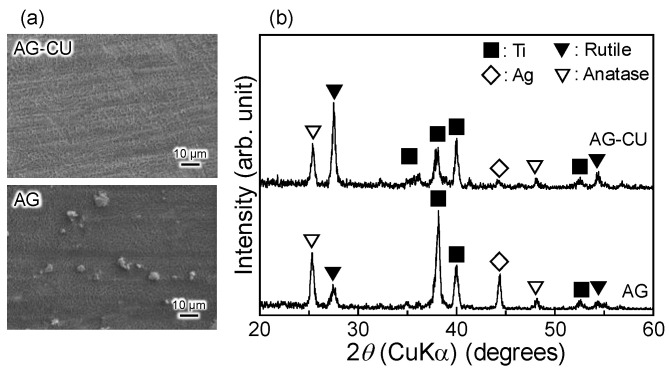

(a) SEM images and (b) TF-XRD patterns of samples.
Figure 2
Figure 2
(a) Ag 3d and (b) Cu 2p electron energy region spectra of samples.
Figure 3
Figure 3
(a) SEM images and (b) TF-XRD patterns of samples after immersion in SBF for 7 days.
Figure 4
Figure 4
Ag and Cu ion release behavior from samples in PBS. (a) Accumulated-released amounts of Ag or Cu vs. soaking period and (b) accumulated-released amounts of Ag or Cu vs. square root of soaking period.
Figure 5
Figure 5
Number of viable bacteria for samples under conditions with and without visible-light irradiation. Bars with different letters (lowercase a–c for no visible-light irradiation group and uppercase A and B for visible-light irradiation group) are significantly different (p < 0.01). Asterisk (*) represents significant differences (p < 0.01) between no visible-light irradiation and visible-light irradiation.
See this image and copyright information in PMC

References

    1. Atieh M.A., Alsabeeha N.H.M., Faggion C.M., Duncan W.J. The frequency of peri-implant diseases: A systematic review and meta-analysis. J. Periodontol. 2013;84:1586–1598. doi: 10.1902/jop.2012.120592. - DOI - PubMed
    1. Lee C.T., Huang Y.W., Zhu L., Weltman R. Prevalences of peri-implantitis and peri-implant mucositis: Systematic review and meta-analysis. J. Dent. 2017;62:1–12. doi: 10.1016/j.jdent.2017.04.011. - DOI - PubMed
    1. Dreyer H., Grischke J., Tiede C., Eberhard J., Schweitzer A., Toikkanen S.E., Glockner S., Krause G., Stiesch M. Epidemiology and risk factors of peri-implantitis: A systematic review. J. Periodont. Res. 2018;53:657–681. doi: 10.1111/jre.12562. - DOI - PubMed
    1. Kotsakis G.A., Olmedo D.G. Peri-implantitis is not periodontitis: Scientific discoveries shed light on microbiome-biomaterial interactions that may determine disease phenotype. Periodontol. 2000. 2021;86:231–240. doi: 10.1111/prd.12372. - DOI - PubMed
    1. Salvi G.E., Cosgarea R., Sculean A. Prevalence and mechanisms of peri-implant diseases. J. Dent. Res. 2017;96:31–37. doi: 10.1177/0022034516667484. - DOI - PubMed
