. 2022 May 19;5(1):63.
doi: 10.1038/s42004-022-00678-4.

Iridium-catalyzed enantioselective synthesis of chiral γ-amino alcohols and intermediates of (S)-duloxetine, (R)-fluoxetine, and (R)-atomoxetine

Chengyu Liu  1 , Lei Zhang  1 , Liming Cao  1 , Yan Xiong  2 , Yueyue Ma  3 , Ruihua Cheng  4   5 , Jinxing Ye  6   7
Affiliations

Iridium-catalyzed enantioselective synthesis of chiral γ-amino alcohols and intermediates of (S)-duloxetine, (R)-fluoxetine, and (R)-atomoxetine

Chengyu Liu et al. Commun Chem. .

Abstract

Chiral γ-amino alcohols are the prevalent structural motifs and building blocks in pharmaceuticals and bioactive molecules. Enantioselective hydrogenation of β-amino ketones provides a straightforward and powerful tool for the synthesis of chiral γ-amino alcohols, but the asymmetric transformation is synthetically challenging. Here, a series of tridentate ferrocene-based phosphine ligands bearing modular and tunable unsymmetrical vicinal diamine scaffolds were designed, synthesized, and evaluated in the iridium-catalyzed asymmetric hydrogenation of β-amino ketones. The system was greatly effective to substrates with flexible structure and functionality, and diverse β-tertiary-amino ketones and β-secondary-amino ketones were hydrogenated smoothly. The excellent reactivities and enantioselectivities were achieved in the asymmetric delivery of various chiral γ-amino alcohols with up to 99% yields, >99% ee values, and turnover number (TON) of 48,500. The gram-scale reactions with low catalyst loading showed the potential application in industrial synthesis of chiral drugs, such as (S)-duloxetine, (R)-fluoxetine, and (R)-atomoxetine.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Fig. 1
Fig. 1. The designed ligand for asymmetric hydrogenation of β-amino ketones.
a Drugs and potential analgesic agent containing γ-amino alcohol units. b Methods for the synthesis of chiral γ-amino alcohols. c The designed ligand for asymmetric hydrogenation of β-amino ketones.
Fig. 2
Fig. 2. Asymmetric hydrogenation of various N-Boc-β-amino ketones with Ir–(RC,SP,RC)-L6 catalyst.
Reaction conditions: 0.4 mmol scale, 0.05 mol% [Ir(COD)Cl]2, 0.105 mol% (RC,SP,RC)-L6, 5 mol% NaOtBu, 2.0 mL toluene, room temperature (25–30 °C). Isolated yields. The ee determined by HPLC. aat 60 °C.
Fig. 3

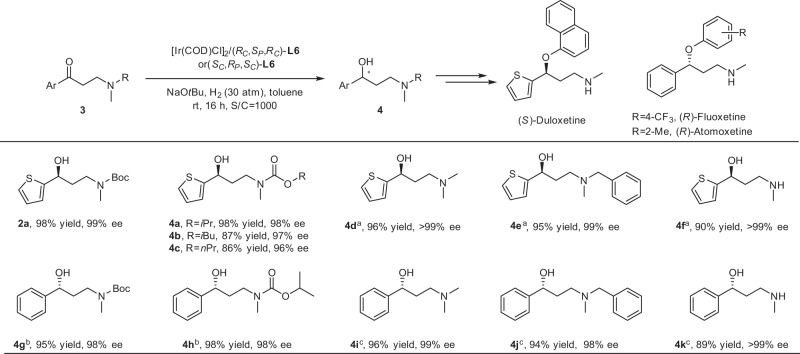

Fig. 3. Asymmetric synthesis of chiral intermediates of (S)-duloxetine, (R)-fluoxetine, and (R)-atomoxetine.
Reaction conditions: 0.4 mmol scale, 0.05 mol% [Ir(COD)Cl]2, 0.105 mol% (RC,SP,RC)-L6, 5 mol% NaOtBu, 2.0 mL toluene, room temperature (25–30 °C). Isolated yields. The ee determined by HPLC. a0.4 mmol 3·HCl, 0.44 mmol NaOtBu. bIr–(SC,RP,SC)-L6 as catalyst. c0.4 mmol 3·HCl, 0.44 mmol NaOtBu, Ir–(SC,RP,SC)-L6 as catalyst.
Fig. 4
Fig. 4. Asymmetric hydrogenation of various β-tertiary-amino ketones with Ir-(RC,SP,RC)-L6 catalyst.
aCondition A: 0.4 mmol 5·HCl, 0.05 mol% [Ir(COD)Cl]2, 0.105 mol% (RC,SP,RC)-L6, 0.44 mmol NaOtBu, 3.0 mL toluene, room temperature (25–30 °C). bCondition B: 0.4 mmol 5, 0.05 mol% [Ir(COD)Cl]2, 0.105 mol% (RC,SP,RC)-L6, 5 mol% NaOtBu, 3.0 mL toluene, room temperature (25–30 °C). Isolated yields. The ee determined by HPLC.
Fig. 5

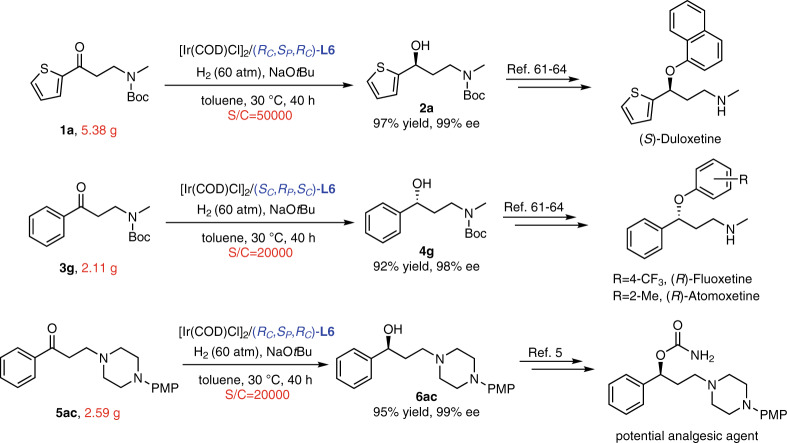

Fig. 5. Gram-scale reactions.
The asymmetric hydrogenation of 1a, 3g, and 5ac with high S/C.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Robertson DW, Krushinski JH, Fuller RW, Leander JD. The absolute configurations and pharmacological activities of the optical isomers of fluoxetine, a selective serotonin-uptake inhibitor. J. Med. Chem. 1988;31:1412–1417. doi: 10.1021/jm00402a027. - DOI - PubMed
    1. Chumpradit S, et al. Iodinated tomoxetine derivatives as selective ligands for serotonin and norepinephrine uptake sites. J. Med. Chem. 1992;35:4492–4497. doi: 10.1021/jm00101a029. - DOI - PubMed
    1. Nowakowska E, Kus K, Chodera A. Pharmacological activity of fluoxetine. Acta Physiol. Hung. 1996;84:445–447. - PubMed
    1. Kirwin JL, Goren JL. Duloxetine: A dual serotonin-norepinephrine reuptake inhibitor for treatment of major depressive disorder. Pharmacotherapy. 2005;25:396–410. doi: 10.1592/phco.25.3.396.61600. - DOI - PubMed
    1. Chae E, et al. Synthesis and pharmacological evaluation of carbamic acid 1-phenyl-3-(4-phenyl-piperazine-1-yl)-propyl ester derivatives as new analgesic agents. Bioorg. Med. Chem. Lett. 2012;22:2434–2439. doi: 10.1016/j.bmcl.2012.02.023. - DOI - PubMed
