. 2023 Jan 19;13(1):e9750.
doi: 10.1002/ece3.9750. eCollection 2023 Jan.

Descriptions of a new genus and a new species, Grylloprimevala jilina (Grylloblattidae) from China

Lin Zhou  1   2 , Qi Chen  1   2 , Haoqin Ke  1 , Zizhuo Wang  1 , Jie Peng  1 , Donghui Wu  1 , Ying Liu  1   2 , Jiang Feng  1   3 , Bingzhong Ren  1
Affiliations

Descriptions of a new genus and a new species, Grylloprimevala jilina (Grylloblattidae) from China

Lin Zhou et al. Ecol Evol. .

Abstract

We erected a new genus (Grylloprimevala Zhou & Ren gen. nov.) and defined a new species (Grylloprimevala jilina Zhou & Ren sp. nov.) from a natural cave in the primeval forest of Jilin Province, China, according to the morphological, behavioral, and molecular evidence. Grylloprimevala gen. nov. is distinguishable from other genera of Grylloblattodea primarily by morphological characters, including the slightly concave posterior margin of the pronotum and no poorly sclerotized zones, six intramarginal and nine intermarginal setae on the cervical sclerite, one tooth on the lacinia, no pulvilli on tarsal segments, and a symmetrical epiproct with a pointed triangular and middle-depressed median projection on the posterior margin. Based on the morphological features mentioned above, we further identified a new species, G. jilina sp. nov. At the aspect of behavior, G. jilina sp. nov. displays the typical characteristics of troglobites, including degraded visual senses, developed body surface sensors, and predation between individuals. Furthermore, molecular phylogenetic analyses also supported the morphological delimitation of G. jilina sp. nov. due to the separate clade of G. jilina sp. nov. Our results provide materials for the determination and conservation of Grylloblattodea in China.

Keywords: Grylloblattidae; Grylloblattodea; diversity; morphology; new species; phylogeny.

PubMed Disclaimer

Conflict of interest statement

The authors have no relevant financial or nonfinancial interest to disclose.

Figures

FIGURE 1
FIGURE 1
(a–f) Type localities, habitus, and structural characteristics of Grylloprimevala jilina sp. nov. (a) (1) habitat; (2) collection location. (b) (3) habitus, dorsal view; (4) anterior part of head, dorsal view; (5) head, dorsal view. A1, first antennomere; A2, second antennomere; A3, third antennomere; Cl, clypeus; DR, dark red funnel‐shaped structure. (c) (6) labrum, dorsal view; (7) tongue, dorsal view; (8) labium, dorsal view; (9) right mandible, dorsal view; (10) left mandible, dorsal view; (11) right maxillae, dorsal view; (12) right maxillae, ventral view; (13) left maxillae, dorsal view. Ge, galea; Gl, glossa; LL, left lacinia; LM, left mandible; LP, labial palp; Lr, labrum; MP, maxillary palp; Pg, paraglossa; RL, right lacinia; RM, right mandible; To, tongue. (d) (14) pronotum, mesonotum and metanotum, dorsal view; (15) cervical sclerites and basisternum, ventral view; (16) posterior part of abdominal, dorsal view; (17) posterior part of abdominal, ventral view; (18) posterior part of abdominal, ventral view; Bs1, first basisternite; Bs2, second basisternite; Bs3, 3rd basisternite; CS, cervical sclerite; Ep, epiproct; LC, left coxopodite; Ms, mesonotum; Mt, metanotum; Pr, pronotum; RC, right coxopodite. (e) (19) foreleg, dorsal view; (20) midleg, dorsal view; (21) hindleg, dorsal view; (22) spines, ventral view; (23) anterior part of tarsus, ventral view. (f) (24) abdominal tergites and cerci, dorsal view; (25) abdominal sternites, ventral view.
FIGURE 2
FIGURE 2

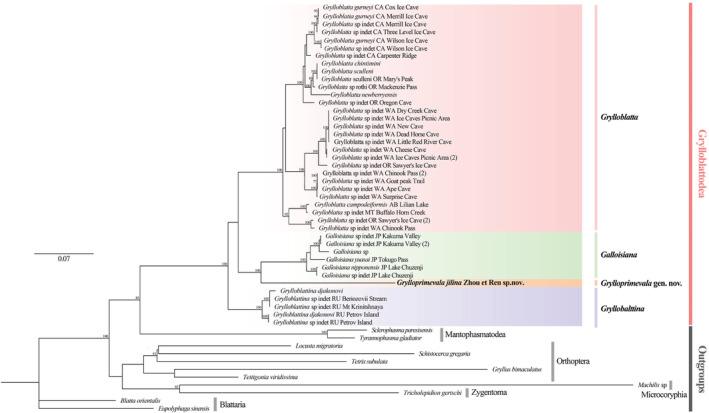

Systematic relationships of different genera among the Grylloblattidae. Build the maximum likelihood tree, set the bootstrap replications to 1000.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Aristov, D. , & Zessin, W. (2009). Mallorcagryllus hispanicus n. gen. et sp. ‐ eine neue Grylloblattide (Insecta: Grylloblattida: Blattogryllidae) aus dem Buntsandstein der Insel Mallorca, Spanien. Virgo, Mitteilungsblatt des Entomologischen Vereins Mecklenburg, 12(1), 30–33.
    1. Bai, M. , Jarvis, K. , Wang, S.‐Y. , Song, K.‐Q. , Wang, Y.‐P. , Wang, Z.‐L. , Li, W.‐Z. , Wang, W. , & Yang, X.‐K. (2010). A second new species of ice crawlers from China (Insecta: Grylloblattodea), with thorax evolution and the prediction of potential distribution. PLoS One, 5(9), e12850. - PMC - PubMed
    1. Crampton, G. (1926). A comparison of the neck and prothoracic sclerites throught the orders of insects from the standpoint of phylogeny. Transactions of the American Entomological Society, 52(3), 199–248.
    1. Cui, Y. Y. , Shih, C. K. , & Ren, D. (2019). Notoptera‐rock crawlers and ice crawlers. In Ren D., Shih C. K., Gao T. P., Wang Y. J., & Yao Y. Z. (Eds.), Rhythms of insect evolution: Evidence from the Jurassic and cretaceous in northern China (pp. 137–147). John Wiley & Sons, Ltd.
    1. Eberhard, M. J. B. , Schoville, S. D. , & Klass, K. D. (2018). Biodiversity of Grylloblattodea and Mantophasmatodea. In Foottit R. G. & Adler P. H. (Eds.), Insect biodiversity: Science and society, II (pp. 335–357). Wiley Blackwell.
