. 2020 Winter;15(1):31-37.
doi: 10.22037/iej.v15i1.25386.

Root and Canal Morphology of Maxillary Teeth in an Iranian Subpopulation Residing in Western Iran Using Cone-Beam Computed Tomography

Nafiseh Nikkerdar  1 , Mohammad Asnaashari  2 , Atena Karimi  1 , Solmaz Araghi  3 , Shahin Seifitabar  4 , Amin Golshah  5
Affiliations

Root and Canal Morphology of Maxillary Teeth in an Iranian Subpopulation Residing in Western Iran Using Cone-Beam Computed Tomography

Nafiseh Nikkerdar et al. Iran Endod J. 2020 Winter.

Abstract

Introduction: Accurate information regarding the morphology of roots and canals is a prerequisite for successful endodontic treatment. This study aimed to assess the number of roots and canals and canal type of maxillary teeth according to the Vertucci's classification in an Iranian subpopulation residing in Western Iran using cone-beam computed tomography (CBCT).

Methods and materials: In this cross-sectional study, a total of 1750 teeth were evaluated on CBCT scans taken for purposes other than this study. For each tooth, 250 axial, sagittal and coronal sections with 1 mm slice thickness were evaluated using NNT Viewer software. The number of roots and canals and canal type according to the Vertucci's classification were determined and reported. Data were analyzed using descriptive and analytical statistics via Fisher's exact test and Chi square test. All data analyses were performed using SPSS version 18.

Results: All of the maxillary anterior teeth were single-rooted, and Vertucci's type I was the most common canal type. Maxillary premolars were mostly single-rooted and Vertucci's type I was the most common type except for the first maxillary premolars, in which type V had the highest frequency. Maxillary molars mostly had three roots and two canals in the mesiobuccal root and one canal in the distobuccal and palatal roots.

Conclusion: Although the number of roots in this cross-sectional study was similar to the findings of previous studies, canal type was significantly different from the results of previous studies. The result of this study can help clinicians in efficient root canal treatment of teeth.

Keywords: Cone-Beam Computed Tomography; Maxilla; Root Canal Morphology.

PubMed Disclaimer

Conflict of interest statement

‘None declared’.

Figures

Figure 1
Figure 1

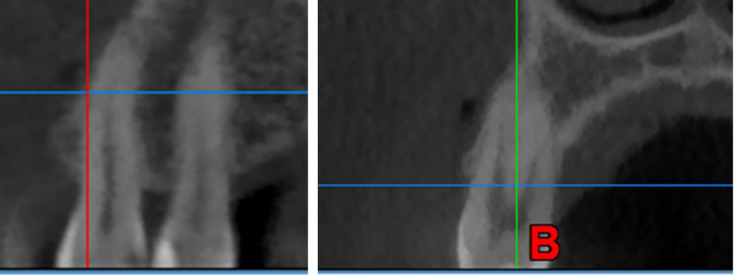

Determination of canal type: A) on coronal views; B) on saggital views
Figure 2
Figure 2
Determination of canal type on axial views: A) maxillary premolar at the orifice (one canal can be seen); B) the same tooth at the mid-root (main canal is divided into two branches); C) the same tooth at the apex (two canals can be seen)
Figure 3
Figure 3
The Vertucci’s classification to determine the root canal morphology and canal type
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Yu X, Guo B, Li KZ, Zhang R, Tian YY, Wang H, et al. Cone-beam computed tomography study of root and canal morphology of mandibular premolars in a western Chinese population. BMC Med Imaging. 2012;12:18. - PMC - PubMed
    1. Plotino G, Tocci L, Grande NM, Testarelli L, Messineo D, Ciotti M, et al. Symmetry of root and root canal morphology of maxillary and mandibular molars in a white population: a cone-beam computed tomography study in vivo. J Endod. 2013;39(12):1545–8. - PubMed
    1. Rouhani A, Bagherpour A, Akbari M, Azizi M, Nejat A, Naghavi N. Cone-beam computed tomography evaluation of maxillary first and second molars in Iranian population: a morphological study. Iran Endod J. 2014;9(3):190–4. - PMC - PubMed
    1. Kim Y, Lee SJ, Woo J. Morphology of maxillary first and second molars analyzed by cone-beam computed tomography in a korean population: variations in the number of roots and canals and the incidence of fusion. J Endod. 2012;38(8):1063–8. - PubMed
    1. Weng XL, Yu SB, Zhao SL, Wang HG, Mu T, Tang RY, et al. Root canal morphology of permanent maxillary teeth in the Han nationality in Chinese Guanzhong area: a new modified root canal staining technique. J Endod. 2009;35(5):651–6. - PubMed
