Identifying congenital generalized lipodystrophy using deep learning-DEEPLIPO

Abstract

Congenital Generalized Lipodystrophy (CGL) is a rare autosomal recessive disease characterized by near complete absence of functional adipose tissue from birth. CGL diagnosis can be based on clinical data including acromegaloid features, acanthosis nigricans, reduction of total body fat, muscular hypertrophy, and protrusion of the umbilical scar. The identification and knowledge of CGL by the health care professionals is crucial once it is associated with severe and precocious cardiometabolic complications and poor outcome. Image processing by deep learning algorithms have been implemented in medicine and the application into routine clinical practice is feasible. Therefore, the aim of this study was to identify congenital generalized lipodystrophy phenotype using deep learning. A deep learning approach model using convolutional neural network was presented as a detailed experiment with evaluation steps undertaken to test the effectiveness. These experiments were based on CGL patient's photography database. The dataset consists of two main categories (training and testing) and three subcategories containing photos of patients with CGL, individuals with malnutrition and eutrophic individuals with athletic build. A total of 337 images of individuals of different ages, children and adults were carefully chosen from internet open access database and photographic records of stored images of medical records of a reference center for inherited lipodystrophies. For validation, the dataset was partitioned into four parts, keeping the same proportion of the three subcategories in each part. The fourfold cross-validation technique was applied, using 75% (3 parts) of the data as training and 25% (1 part) as a test. Following the technique, four tests were performed, changing the parts that were used as training and testing until each part was used exactly once as validation data. As a result, a mean accuracy, sensitivity, and specificity were obtained with values of [90.85 ± 2.20%], [90.63 ± 3.53%] and [91.41 ± 1.10%], respectively. In conclusion, this study presented for the first time a deep learning model able to identify congenital generalized lipodystrophy phenotype with excellent accuracy, sensitivity and specificity, possibly being a strategic tool for detecting this disease.

Figure 1

Proposed model for CNN.

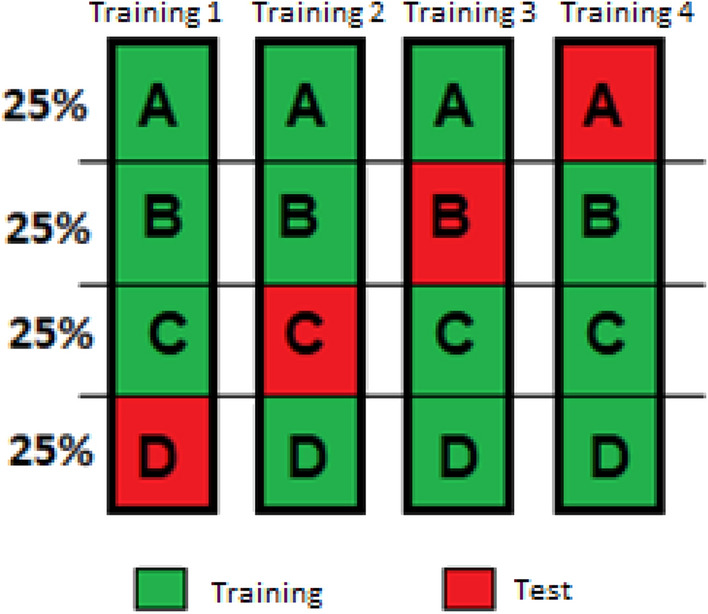

Figure 2

Visual presentation of a fourfold cross validation.

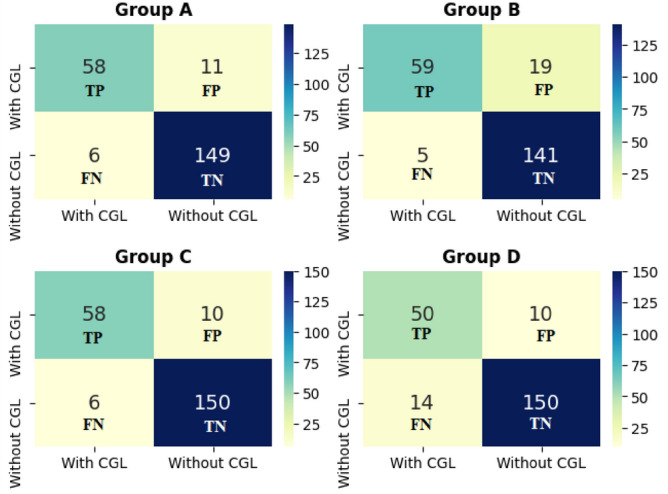

Figure 3

Confusion matrices for each fold. TP true positive, FP false positive, FN false negative and TN true negative.
