. 2023 Feb 10;13(1):2383.
doi: 10.1038/s41598-023-29601-0.

Reliability of coracohumeral distance and subcoracoid tendons in subacromial pain syndrome

Claudia Cavaggion  1 , Santiago Navarro-Ledesma  2 , Birgit Juul-Kristensen  3 , Alejandro Luque-Suarez  4   5 , Lennard Voogt  6   7 , Filip Struyf  1
Affiliations

Reliability of coracohumeral distance and subcoracoid tendons in subacromial pain syndrome

Claudia Cavaggion et al. Sci Rep. .

Abstract

This study investigated the intra-rater reliability of a novice ultrasound (US) examiner and the inter-rater reliability of two examiners (novice, expert) in the measures of coracohumeral distance at rest (CHD) and at 60° of elevation without (CHD60) or with weights (CHD60w), tendon thickness of the long head of the biceps (LHB) and subscapularis (SCP). Twenty-one patients with subacromial pain syndrome (SAPS) and 20 asymptomatic participants were included. Intra and inter-rater reliability were tested with intraclass-correlation-coefficient (ICC), differences between raters were analyzed with Bland-Altman plots. Intra-rater reliability for CHD, CHD60 and CHD60w was excellent (ICC = 0.97-0.98) in asymptomatic participants, and good-to-excellent (0.88-0.93) in SAPS, while intra-rater reliability for LHB and SCP was good-to-excellent in asymptomatic participants (0.88-0.97) and in SAPS (0.90-0.92). Inter-rater reliability for CHD, CHD60 and CHD60w was moderate-to-good (0.70-0.90) in asymptomatic participants and good (0.85-0.87) in SAPS, in contrast inter-rater reliability for LHB and SCP was poor in asymptomatic participants (0.10-0.46) and poor-to-moderate (0.49-0.61) in SAPS. Bland-Altman plots revealed systematic and/or proportional bias for tendons' thickness. A novice showed good-to-excellent intra-rater reliability in all US measures, whereas in comparison to an expert a novice can measure reliably CHD, CHD60 and CHD60w, but not LHB and SCP, where more training is recommended.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Figure 1
Figure 1

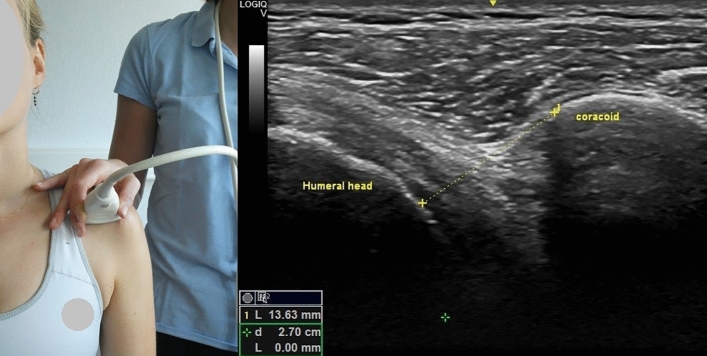

Left: position of the probe during the measurement of the coracohumeral distance at rest; right: measurement of coracohumeral distance at rest. Photo on the left side by Anthe Foubert.
Figure 2
Figure 2

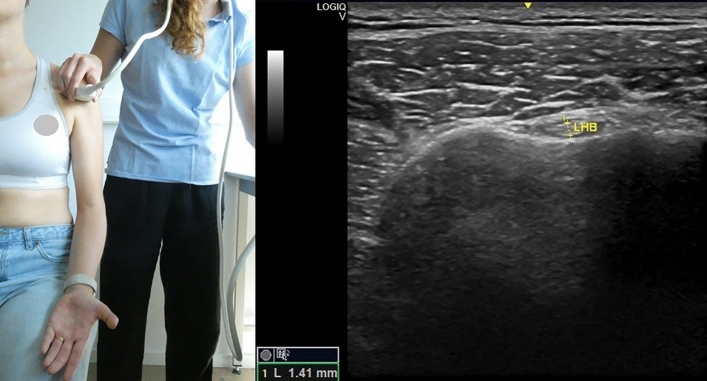

Left: position of the probe and of the subject during the measurement of the long head of the biceps tendon thickness; right: measurement of the long head of the biceps tendon thickness. Photo on the left side by Anthe Foubert.
Figure 3
Figure 3

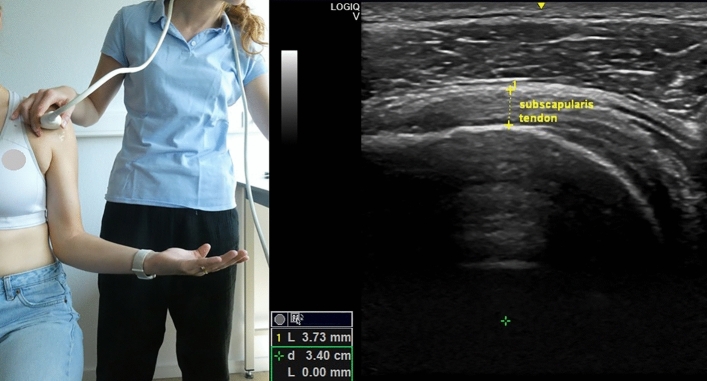

Left: position of the probe and of the subject during the measurement of the subscapularis tendon thickness; right: measurement of the subscapularis tendon thickness. Photo on the left side by Anthe Foubert.
Figure 4
Figure 4

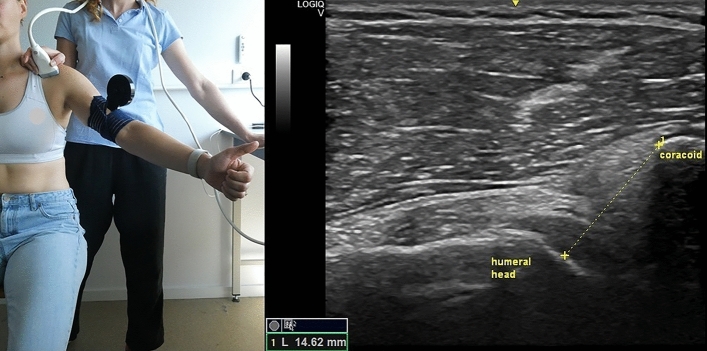

Left: position of the probe and of the subject during the measurement of the coracohumeral distance at 60°; right: measurement of the coracohumeral at 60°. Photo on the left side by Anthe Foubert.
Figure 5
Figure 5

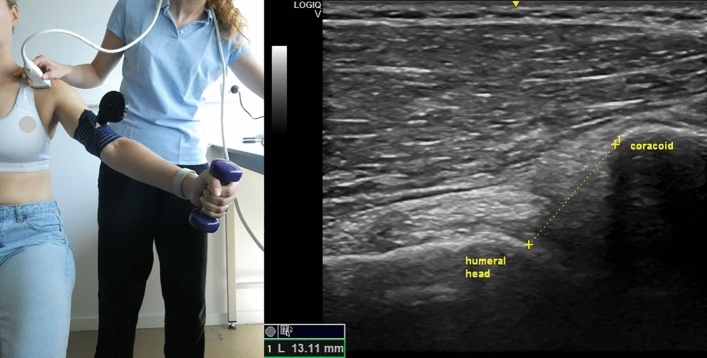

Left: position of the probe and the subject during the measurement of the coracohumeral distance at 60° with weights; right: measurement of the coracohumeral at 60° with weights. Photo on the left side by Anthe Foubert.
Figure 6
Figure 6

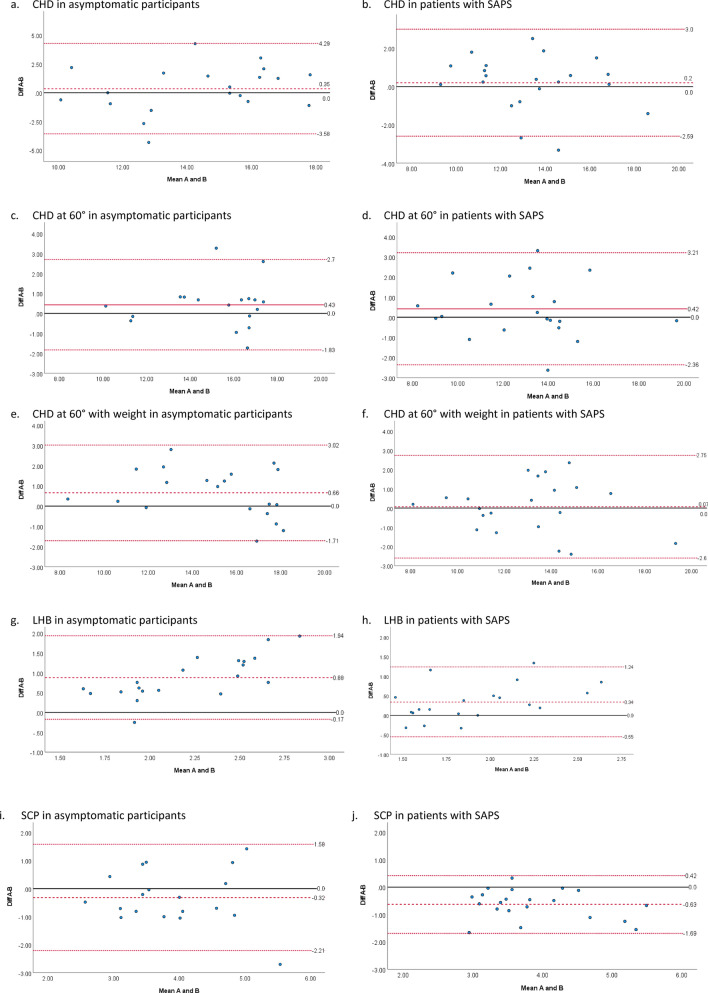

Bland–Altman plots for inter-rater reliability. Color of the lines: dashed red line: mean difference, dotted red line: limits of agreement of the mean difference, black line: perfect agreement (difference between A and B = 0). CHD coracohumeral distance, Diff difference, LHB long head of biceps, SAPS subacromial pain syndrome, SCP subscapularis tendon.
See this image and copyright information in PMC

References

    1. Lucas J, van Doorn P, Hegedus E, Lewis J, van der Windt D. A systematic review of the global prevalence and incidence of shoulder pain. BMC Musculoskelet. Disord. 2022;23:1073. doi: 10.1186/s12891-022-05973-8. - DOI - PMC - PubMed
    1. Luime JJ, et al. Prevalence and incidence of shoulder pain in the general population; A systematic review. Scand. J. Rheumatol. 2004;33:73–81. doi: 10.1080/03009740310004667. - DOI - PubMed
    1. Diercks R, et al. Guideline for diagnosis and treatment of subacromial pain syndrome: A multidisciplinary review by the Dutch Orthopaedic Association. Acta Orthop. 2014;85:314–322. doi: 10.3109/17453674.2014.920991. - DOI - PMC - PubMed
    1. Neer CS. Anterior acromioplasty for the chronic impingement syndrome in the shoulder: A preliminary report. J. Bone Jt. Surg. Am. 1972;54:41–50. doi: 10.2106/00004623-197254010-00003. - DOI - PubMed
    1. McCreesh KM, Crotty JM, Lewis JS. Acromiohumeral distance measurement in rotator cuff tendinopathy: Is there a reliable, clinically applicable method? A systematic review. Br. J. Sports Med. 2015;49:298–305. doi: 10.1136/bjsports-2012-092063. - DOI - PubMed
