Improving Artificial Intelligence-Based Diagnosis on Pediatric Skin Lesions

Abstract

Artificial intelligence algorithms to classify melanoma are dependent on their training data, which limits generalizability. The objective of this study was to compare the performance of an artificial intelligence model trained on a standard adult-predominant dermoscopic dataset before and after the addition of additional pediatric training images. The performances were compared using held-out adult and pediatric test sets of images. We trained two models: one (model A) on an adult-predominant dataset (37,662 images from the International Skin Imaging Collaboration) and the other (model A+P) on an additional 1,536 pediatric images. We compared performance between the two models on adult and pediatric held-out test images separately using the area under the receiver operating characteristic curve. We then used Gradient-weighted Class Activation Maps and background skin masking to understand the contributions of the lesion versus background skin to algorithm decision making. Adding images from a pediatric population with different epidemiological and visual patterns to current reference standard datasets improved algorithm performance on pediatric images without diminishing performance on adult images. This suggests a way that dermatologic artificial intelligence models can be made more generalizable. The presence of background skin was important to the pediatric-specific improvement seen between models. Our study highlights the importance of carefully curated and labeled data from diverse inputs to improve the generalizability of AI models for dermatology, in this case applied to dermoscopic images of adult and pediatric lesions to improve melanoma detection.

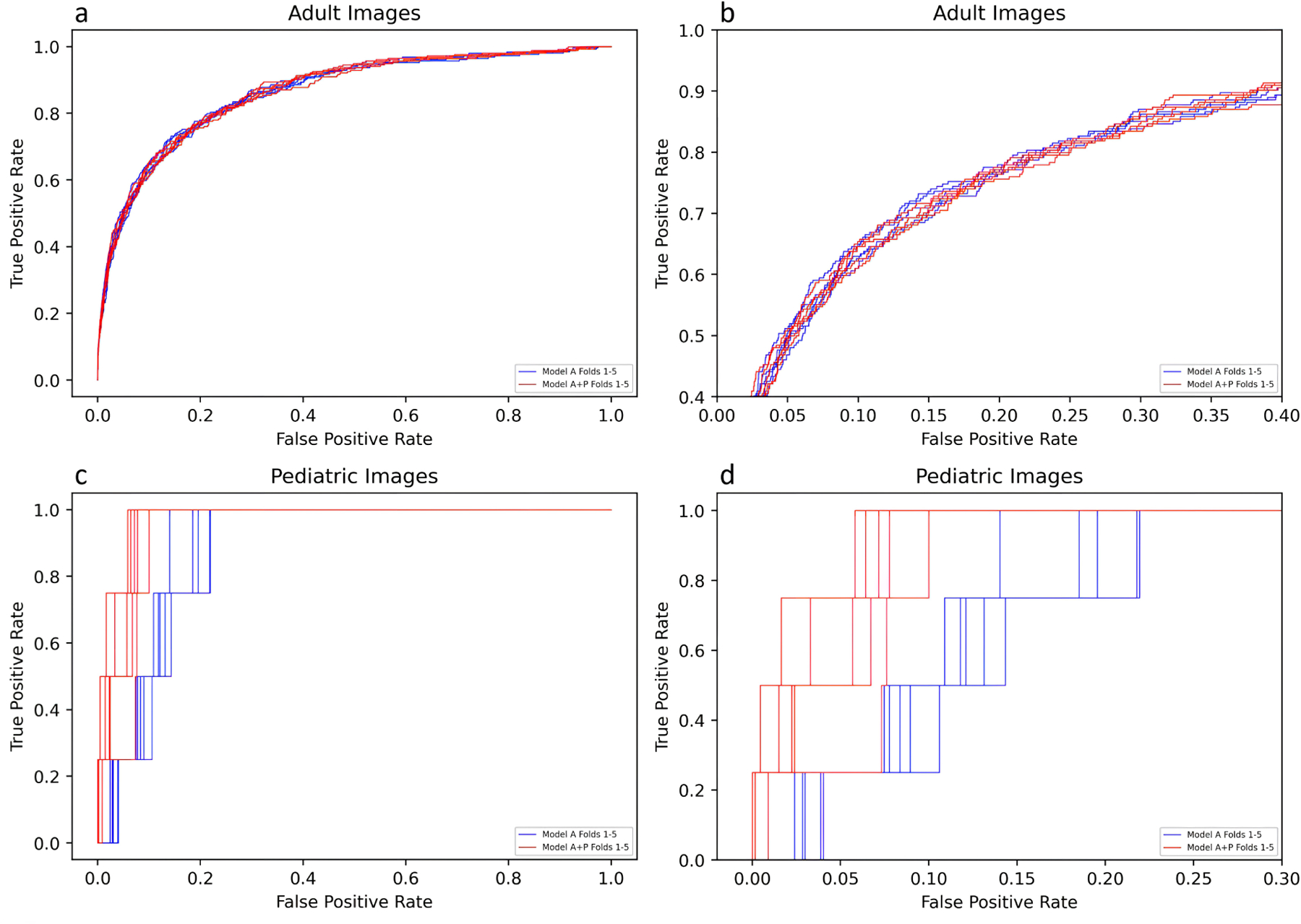

Figure 1:

Comparison between Models trained on Adult (A) and Adult+Pediatric (A+P) images. This figure shows the corresponding Receiver Operating Characteristic (ROC) curves for all 5 versions of Model A and Model A+P for pediatric and adult images. Figure 1a, b: ROC curves show the performance of Models A and A+P on adult images. Figures 1c, d: ROC curves show the performance of Models A and A+P on pediatric images.

Figure 2:

Comparison of image weighting between differently trained models. Gradient-weighted Class Activation Maps of Model A (trained on adult images from the ISIC archie), and Model A+P (trained on adult images from the ISIC archive + our original pediatric dataset) where increasing intensity of yellow corresponds to how much that area was weighted in the algorithm’s decision making. 2a) an image whose decision was made by Model A mostly on the basis of the background skin (low LAR), compared to 2e) Model A+P mostly on the basic of the lesion characteristics (high LAR). 2b) an image whose classification was made from very little overall activation by Model A compared to 2f) activated by mostly background skin (low LAR) in Model A+P. 2c/2g) an image which was classified mainly on the basis of its lesion in both models (high LAR). 2d/2h): An image whose background skin stayed the most informative contributor to classification, but where both models weighted different parts in the background skin (low LAR). 2i/2j: A parallel plot representation of 200 random pediatric and adult images and their change in LAR between Model A and Model A+P (blue) and the average change in LAR (orange). While the average change in LAR across all lesions is low, many lesions showed a significant change in LAR between the two models, as exhibited by the varying slopes of blue. This signifies that Model A+P often “looks at” different regions than Model A across many images.

Figure 3:

The effect of background skin on AI accuracy. The ROC curves of Models A and A+P on images with and without background skin. Figures 3a, b: Performance on adult images with masked background and Figures 3c, d: Performance on similarly masked pediatric images. We see decreased performance on both kinds of images with the removal of background skin from the image.

Figure 4:

Two-dimensional visualization of the embedding spaces. Model A, trained only on adult images, and Model A+P trained on adult and pediatric images. Model A+P demonstrates improved ability to detect adult and pediatric images as distinct clusters compared to Model A.
