Towards a Diagnosis of Cardiac Amyloidosis: Single Center Experience with 99m Technetium Pyrophosphate Planar Imaging and Opportunities for Standardization of Diagnostic Workflow

Abstract

Background and Objectives: Cardiac amyloidosis is a disorder caused by amyloid fibril deposition in the extracellular space of the heart. Almost all forms of clinical cardiac amyloidosis are transthyretin amyloidosis (ATTR) or light chain amyloidosis. ^99m technetium pyrophosphate (^99mTc PYP scan) has changed the landscape of the non-biopsy diagnosis of ATTR cardiac amyloidosis (ATTR-CA) by providing remarkably high diagnostic accuracy. We examined our experience with PYP scans in patients undergoing workup for ATTR-CA and evaluated the diagnostic workflow in patients with intermediate PYP scan results. Materials and Methods: Retrospective chart review study in which we analyzed data of 84 patients who underwent c-99m pyrophosphate (PYP) SPECT scan for the diagnosis of ATTR-CA from 2017 till 2021 at our institution. We identified three groups: Low uptake (PYPL uptake ratio < 1.2 + visual grade 1/0), n = 30, Intermediate uptake (PYPI uptake ratio 1.2-1.49, visual grade 2/3), n = 25 and High uptake (PYPH uptake ratio ≥ 1.5 + visual grade 2/3), n = 29. We reviewed patients' demographics, medical histories, echo parameters and diagnostic testing including light chain analysis, cardiac magnetic resonance results, and biopsies. Results: Mean patients' age was 73, male-to=female ratio 3:1, 59% of patients were African American. Cardiovascular comorbidities, cardiac biomarkers (BNP and Troponin) and amyloid-related neuropathy were similar in all groups. A statistically significant difference in septal thickness/posterior wall thickness and final diagnosis were found between the groups. The distribution of overall diagnostic testing ratios for the PYPI group included serum protein electrophoresis 92%, urine protein electrophoresis 65%, free light chain 80%, CMR 32%, tissue biopsy done in 20% and BM biopsy in 16%, which are similar to the ratios of other groups. Overall, 25% (n = 5, 4 TTR-CA and 1 AL Amyloid) of patients in the PYPI group had a final diagnosis of CA established with additional testing (p = 0.001 vs. other groups). Conclusions: The ^99mPYP scan is an accurate noninvasive test for cardiac ATTR-CA. Importantly, 25% of the PYPI group had a final diagnosis of ATTR-CA reiterating that diagnosis needs to be pursued in PYPI cases based on clinical suspicion. Routine evaluation and exclusion of light chain disease and establishing a consistent workflow for amyloid diagnosis and continued education for technologists and readers of PYP scans is key to a successful amyloidosis workup.

Keywords: cardiac amyloidosis; light chain amyloidosis; restrictive cardiomyopathy; technetium pyrophosphate scan; transthyretin cardiac amyloidosis.

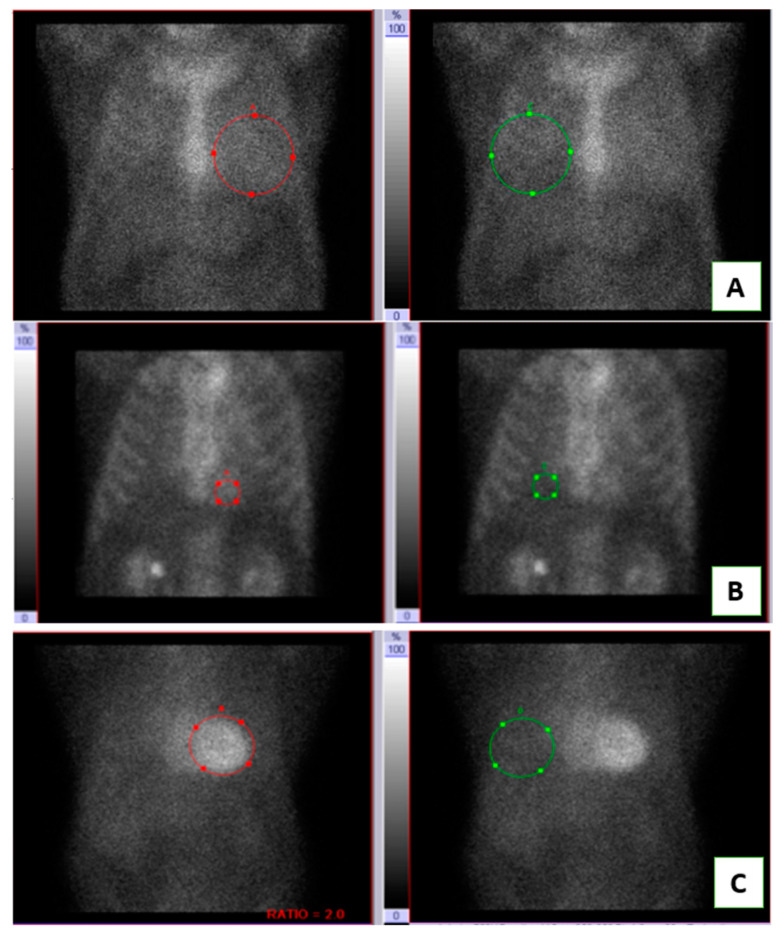

Figure 1

An example of planar PYP scan images of low, intermediate, and high uptake groups: (A) Low uptake with Heart/Contralateral lung (H/CL) ratio 1.1, (B) Intermediate uptake with H/CL ratio = 1.3, (C) High uptake with H/CL ratio = 2.0. Red: heart uptake, Green: contralateral lung uptake.
