Tracheal Mirror Image Artifact in Patients With Normal and Pathologic Tracheas

Grace E Nicholas  1 , John P Dahl  2   3 , Jeffrey P Otjen  4   5 , Clare M Richardson  6
Affiliations

Tracheal Mirror Image Artifact in Patients With Normal and Pathologic Tracheas

Grace E Nicholas et al. Otolaryngol Head Neck Surg. 2023 Oct.

Abstract

Ultrasonography is gaining popularity as a diagnostic imaging modality for airway pathology. Tracheal ultrasound (US) has several nuances that are important for clinicians, including imaging artifacts, which can be mistaken for pathology. Tracheal mirror image artifacts (TMIAs) occur when the US beam is reflected back to the transducer in a nonliner direction or with multiple timesteps. It has previously been believed that the convexity of the tracheal cartilage prevents mirror image artifacts, but in reality, the air column acts as an acoustic mirror and causes TMIA. We describe a cohort of patients with both normal and pathologic tracheas, all of whom have TMIA on the tracheal US. These artifacts are important to recognize, especially as the airway US becomes more commonplace.

Keywords: airway; artifact; mirror image; trachea; tracheal cartilaginous sleeve; ultrasound.

PubMed Disclaimer

Conflict of interest statement

Conflicts of interest: The authors declare that there are no conflicts of interest

Figures

Figure 1
Figure 1

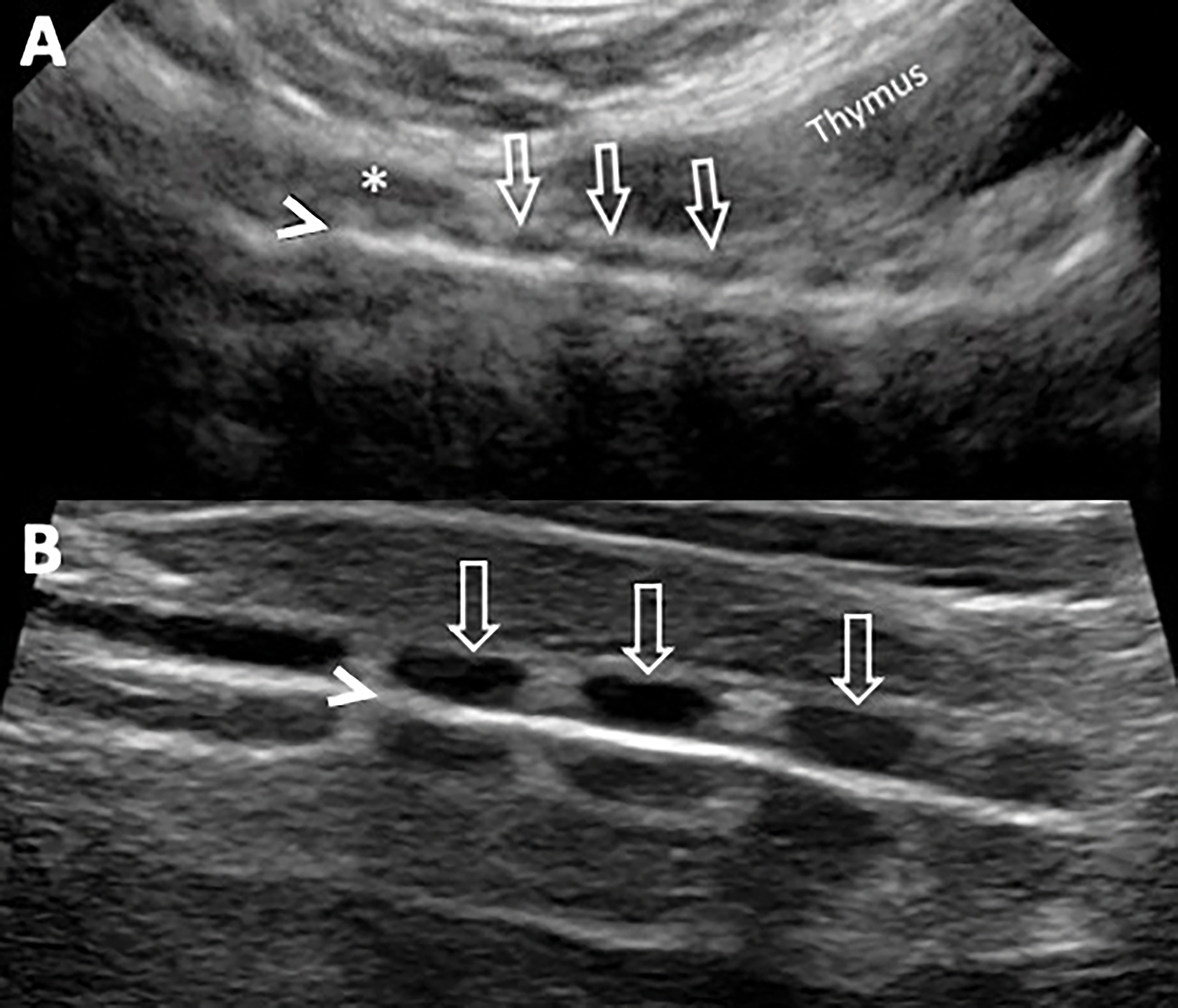

Longitudinal US in a patient with normal tracheal anatomy, visualized both without (A) and with (B) TMIA. Hypoechoic tracheal rings (arrows) are seen anterior to an echogenic air column (arrowhead). The normal thyroid isthmus (asterisk) and thymus are also visible.
Figure 2
Figure 2
Longitudinal US in a patient with TCS visualized without (A) and with (B) TMIA. An abnormal hypoechoic trachea is present without rings (open arrows). The air column (arrowhead) causes a TMIA, duplicating the tracheal cartilage deep (arrow). The thymus (asterisk) is also visible.
