. 2023 Mar 9;23(1):157.
doi: 10.1186/s12884-023-05450-7.

A feasible method to evaluate fetal palate: sequential sector-scan through oral fissure

Xiaofeng Lu #  1 , Yi Zhou #  1 , Min Fan #  2 , Wanyan Li  1 , Chaoxue Zhang  3
Affiliations

A feasible method to evaluate fetal palate: sequential sector-scan through oral fissure

Xiaofeng Lu et al. BMC Pregnancy Childbirth. .

Abstract

Background: Prenatal diagnosis of cleft palate is still challenging. To describe a practical and efficient method, sequential sector-scan through oral fissure (SSTOF), to evaluate palate.

Methods: According to the characteristics of the fetal oral anatomy and ultrasonic directivity, we designed a practical method, sequential sector-scan through oral fissure, to evaluate the fetal palate, and the approach was verified efficiently by following up results of those fetuses with orofacial cleft who were induced because of their accompanied lethal malformations. Then, the 7098 fetuses were evaluated using sequential sector-scan through oral fissure. Fetuses were followed up after birth or induction to validate and analyze prenatal diagnosis.

Result: According to the scanning design, sequential sector-scan through oral fissure was performed successfully from the soft palate to the upper alveolar ridge in induced labor fetuses, and the structures were displayed clearly. Among 7098 fetuses, satisfactory images were obtained for 6885 fetuses and the remaining 213 fetuses' images were unsatisfactory because of fetuses' positions and pregnant women with high BMI. Among 6885 fetuses, 31cases were diagnosed CLP or CP, which were confirmed after delivery or termination. There were no missing cases.

Conclusions: SSTOF is a practical and efficient method to diagnose cleft palate, which might be applied to evaluate the fetal palate in prenatal diagnosis.

Keywords: Cleft lip; Cleft palate; Prenatal diagnosis; Ultrasound.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

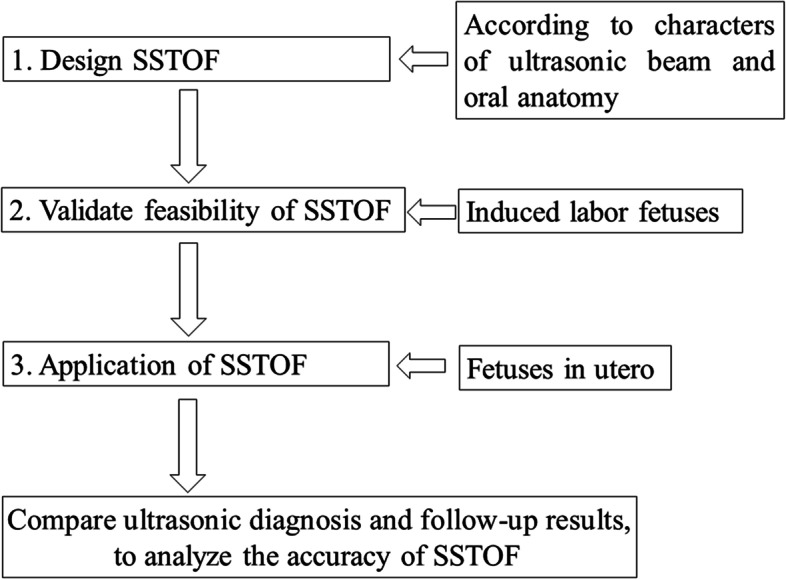

Experimental flowing chart
Fig. 2
Fig. 2

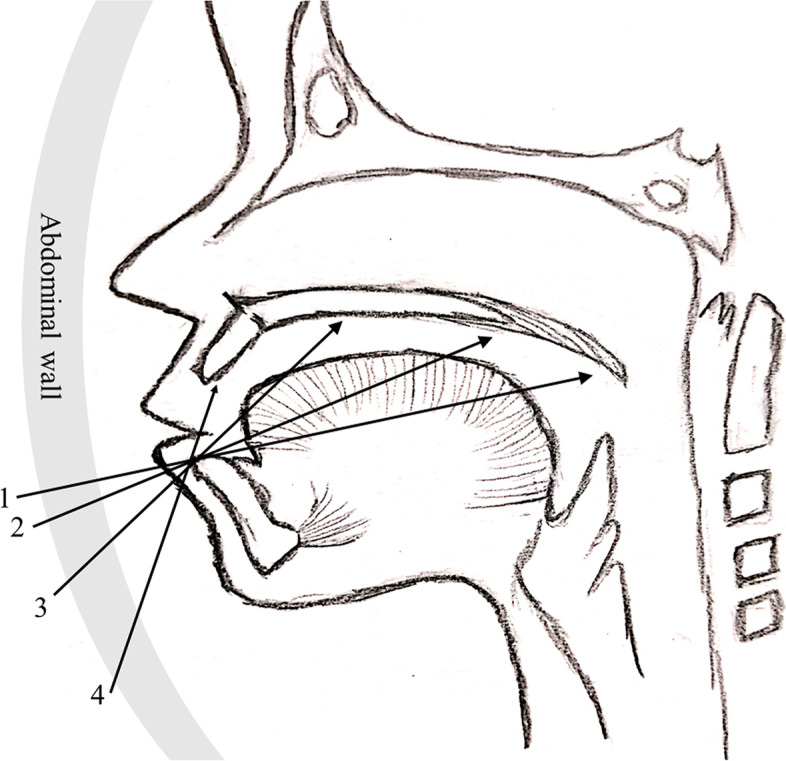

Scanning method design of SSTOF. 1/2/3/4 respectively represent continuous sequence sections. The evaluation was based on the dynamic scanning video, and the still picture was only the schematic diagram of the four anatomical marks captured in the vide
Fig. 3
Fig. 3

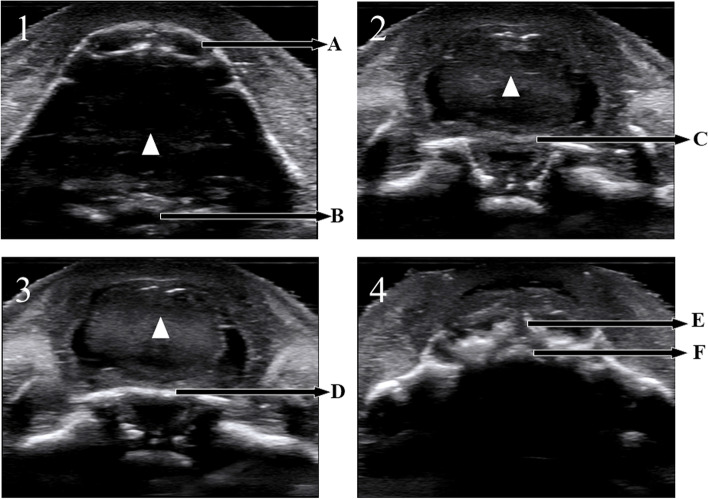

Verify the feasibility of SSTOF with induced labor fetus (gestational age:18 W). 1/2/3/4 respectively represent continuous sequence sections. A: lower alveolar ridge. B: pharynx. C: soft palate. D: hard palate. E: upper alveolar ridge. F: Primary palate. The white triangle: tongue
Fig. 4
Fig. 4

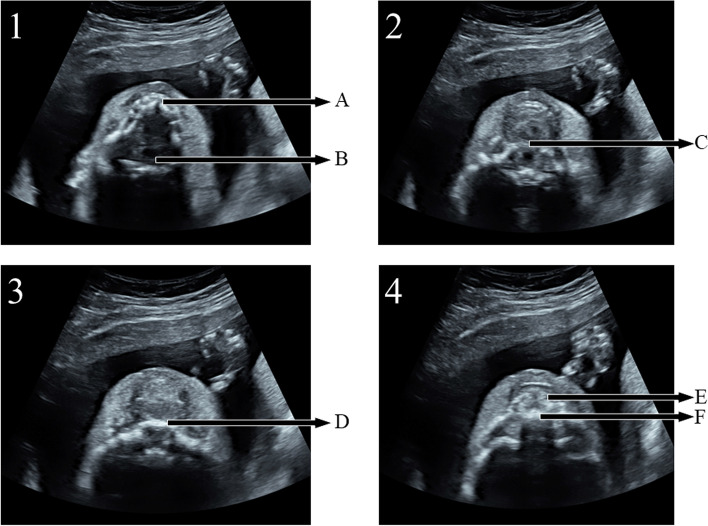

Applied SSTOF on the routine examination (from the front of fetal face, gestational age:23 W). 1/2/3/4 respectively represent continuous sequence sections. A: lower alveolar ridge. B: pharynx. C: soft palate. D: hard palate. E: upper alveolar ridge. F: Primary palate
Fig. 5
Fig. 5

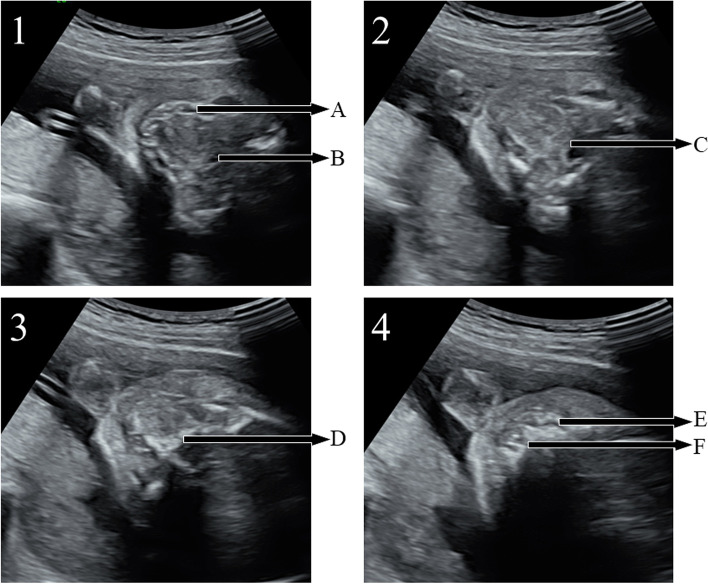

Applied SSTOF on the routine examination (from the side of fetal face, gestational age:22 W). 1/2/3/4 respectively represent continuous sequence sections. A: lower alveolar ridge. B: pharynx. C: soft palate. D: hard palate. E: upper alveolar ridge. F: Primary palate
Fig. 6
Fig. 6

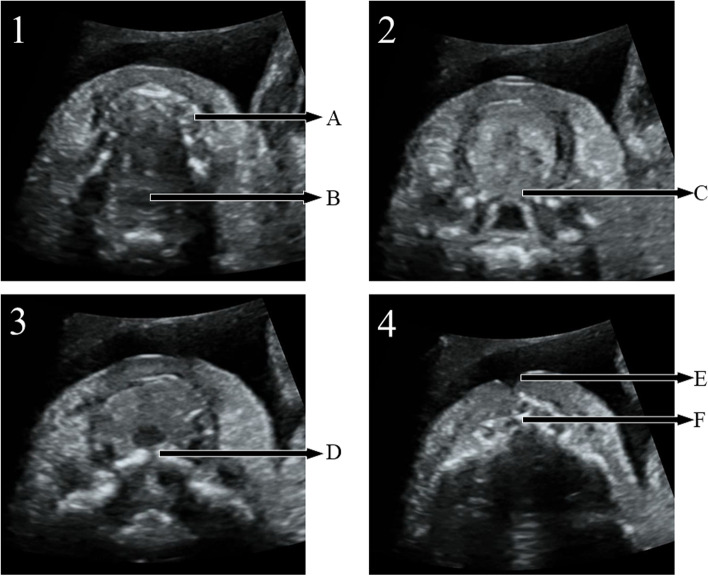

The case of CLP (gestational age:22 W). 1/2/3/4 respectively represent continuous sequence sections. A: lower alveolar ridge. B: pharynx. C: soft palate. D: cleft hard palate. E: cleft lip. F: cleft upper alveolar ridge
See this image and copyright information in PMC
