. 2023 Feb 24:11:1108750.
doi: 10.3389/fpubh.2023.1108750. eCollection 2023.

Optimization of underground open intermediary space comfort in TOD complexes: A case study of Chongqing, China

Dong Lili  1 , He Yufeng  1 , Chen Xiang  2   3 , Cheng Na  4 , Liu Tao  4
Affiliations

Optimization of underground open intermediary space comfort in TOD complexes: A case study of Chongqing, China

Dong Lili et al. Front Public Health. .

Abstract

Rapid urbanization drives social development, but at the same time brings sustainable development Rapid urbanization drives social development, but at the same time brings sustainable development advantages of expanding underground space and relieving urban traffic congestion. High quality TOD complexes with natural elements in the intermediary space have been considered as one of the important means to address sustainable urban development. Nevertheless, intermediary spaces in TOD complexes face various challenges, such as significant contradictory factors in their physical environment spaces. This study classifies the underground open intermediary space into four types according to the characteristics of TOD complexes. And for these four types'Cthe physical environment-generated by various influencing factors of planar geometric, three-dimensional geometric, and detailed construction elements-is simulated using a numerical simulation method based on a static Taguchi experiment. The results demonstrate that space shape is a primary influencing factor for luminous and thermal environments; the window-atrium ratio (W/A ratio) and hole-atrium ratio (H/A ratio) comprise contradictory factors between the luminous and thermal environments of these spaces; profile inclination angle and sunken plaza height are primary impact factors for the acoustic environment; and skylight type has minimal influence on the physical environment. On average, their luminous and acoustic environment comfort can be improved by 200%; whereas, their thermal environment comfort can be improved by 21% and the potential for optimizing it in their shallow space (underground space depth ≤ 10 m) is relatively low. Subsequently, the necessity of comfort optimization as the passive optimization design of underground open intermediary spaces' physical environment in TOD complexes in the future is discussed. Finally, the feasible path and prospect of how to improve the livability and comfort of the spatial physical environment of TOD complexes are discussed and prospected.

Keywords: TOD complexes; comfort optimization; numerical simulation; physical environment; underground open intermediary space.

PubMed Disclaimer

Conflict of interest statement

CN and LT were employed by Chongqing City Integrated Transportation Hub (Group) Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Figures

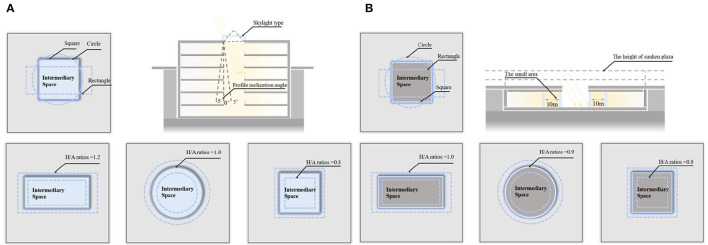

Figure 1
Figure 1
Protocol describing the logic for changing the combination of factors in the simulation. Image source: self-drawn by the author. (A) Underground atrium type intermediary space. (B) Sunken plaza type intermediary space.
Figure 2
Figure 2
Aerial view and profile view of four standard models. Image source: self-drawn by the author. (A) TUAI. (B) TCAI. (C) TCSI. (D) THAI.
Figure 3
Figure 3
Profile view of the material composition layer. Image source: self-drawn by the author. (A) DoubleGlazed_LowE_AlumFrame. (B) ConcFlr_Tiles_Suspended. (C) ConcSlab_Tiles_OnGround. (D) DoubleBrickCavityBlaster. (E) ConcreteRoof_Asphalt. (F) Underground wall.

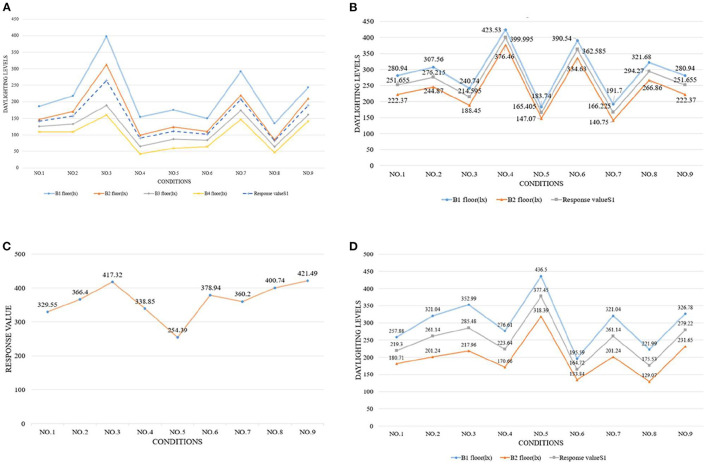

Figure 4
Figure 4
Luminous environment simulation results and response values for (A) TUAI, (B) TCAI, (C) TCSI, and (D) THAI. Image source: self-drawn by the author.
Figure 5
Figure 5
Thermal environment simulation results and response values for (A) TUAI, (B) TCAI, (C) TCSI, and (D) THAI. Image source: self-drawn by the author.
Figure 6
Figure 6
Acoustic environment simulation results and response values for (A) TUAI, (B) TCAI, (C) TCSI, and (D) THAI. Image source: self-drawn by the author.
Figure 7
Figure 7
Physical environment simulation results and response values for (A) TUAI, (B) TCAI, (C) TCSI, and (D) THAI. Image source: self-drawn by the author.
Figure 8
Figure 8
Physical environment response values for (A) TUAI, (B) TCAI, (C) TCSI, and (D) THAI. Image source: self-drawn by the author.
Figure 9
Figure 9
Luminous environment response values for (A) TUAI, (B) TCAI, (C) TCSI, and (D) THAI. Image source: self-drawn by the author.
Figure 10
Figure 10
Thermal environment response values for (A) TUAI, (B) TCAI, (C) TCSI, and (D) THAI. Image source: self-drawn by the author.
Figure 11
Figure 11
Acoustic environment response values for (A) TUAI, (B) TCAI, (C) TCSI, and (D) THAI. Image source: self-drawn by the author.
See this image and copyright information in PMC

References

    1. Buhaug H, Urdal H. An urbanization bomb? Population growth and social disorder in cities. Glob Environ Change. (2013) 23:1–10. 10.1016/j.gloenvcha.2012.10.016 - DOI
    1. Tuholske C, Caylor K, Evans T, Avery R. Variability in urban population distributions across Africa. Environ Res Lett. (2019) 14:2432. 10.1088/1748-9326/ab2432 - DOI
    1. Spiliotopoulou M, Roseland M. Urban sustainability: From theory influences to practical agendas. Sustainability. (2020) 12:1–19. 10.3390/su12187245 - DOI - PubMed
    1. Xia J, Zhang Y. Where are potential areas for transit-oriented development (TOD)—Exploring the demands for built environment for TOD planning. Sustainability. (2022) 14:148364. 10.3390/su14148364 - DOI
    1. Motieyan H, Mesgari MS. A novel spatial index using spatial analyses and hierarchical fuzzy expert system for obtaining green TOD: A case study in Tehran city. Geocarto Int. (2019) 34:1–22. 10.1080/10106049.2017.1353644 - DOI
