Evaluation of non-modified wireframe DNA origami for acute toxicity and biodistribution in mice

Abstract

Wireframe DNA origami can be used to fabricate virus-like particles for a range of biomedical applications, including the delivery of nucleic acid therapeutics. However, the acute toxicity and biodistribution of these wireframe nucleic acid nanoparticles (NANPs) have not previously been characterized in animal models. In the present study, we observed no indications of toxicity in BALB/c mice following therapeutically relevant dosage of unmodified DNA-based NANPs via intravenous administration, based on liver and kidney histology, liver biochemistry, and body weight. Further, the immunotoxicity of these NANPs was minimal, as indicated by blood cell counts and type-I interferon and pro-inflammatory cytokines. In an SJL/J model of autoimmunity, we observed no indications of NANP-mediated DNA-specific antibody response or immune-mediated kidney pathology following the intraperitoneal administration of NANPs. Finally, biodistribution studies revealed that these NANPs accumulate in the liver within one hour, concomitant with substantial renal clearance. Our observations support the continued development of wireframe DNA-based NANPs as next-generation nucleic acid therapeutic delivery platforms.

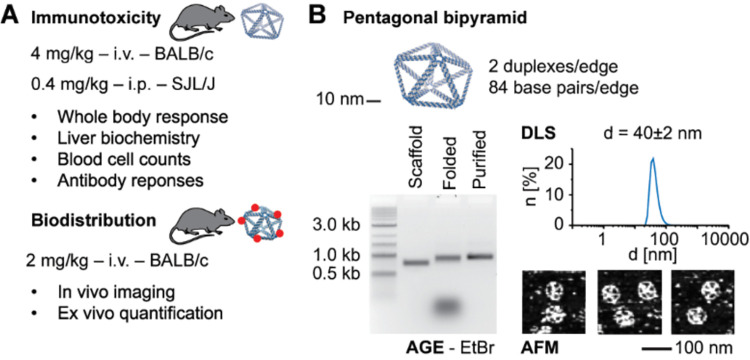

Figure 1.. Characterizing the acute toxicity and biodistribution of wireframe DNA origami

(A) The experimental design for this study investigated the acute toxicity, immunotoxicity and biodistribution of wireframe NANPs across two different animal models via two different administration routes. (B) The model NANP, a pentagonal bipyramid with two duplexes and 84 base pairs per edge (PB84), used in this study. PB84 structural integrity was validated by agarose gel electrophoresis (AGE), dynamic light scattering (DLS), and atomic force microscopy (AFM).

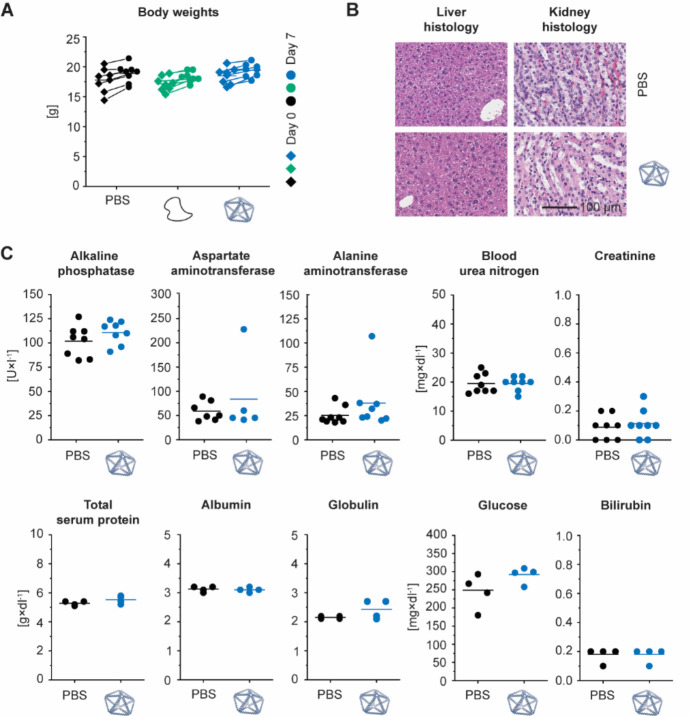

Figure 2.. Effect of wireframe DNA origami on body weight as well as liver and kidney histology and function in BALB/c mice.

Intravenous administration of PB84 (4mg/kg), PBS control and an unstructured DNA control (4mg/kg). (A) Body weights were monitored before and seven days after administration. Body weight change was consistent across all groups. (B) Histological sections of kidney and liver were visualized by hematoxylin and eosin (H&E) staining and observed under a light microscope at 40× magnification. (C) A panel of 10 biomarkers for liver and kidney function shows no phenotype when NANPs were administered, consistent with a PBS control. General toxicity was assessed from n ≥ 4 biological replicates per group. Representative histology images are shown. Student’s t-test was performed for the body weights. One-way ANOVA was performed for the liver and kidney biochemistry panel followed by Tukey’s multiple comparison test. Significant differences are denoted as * - p < 0.050, ** - p < 0.010, and *** - p < 0.001.

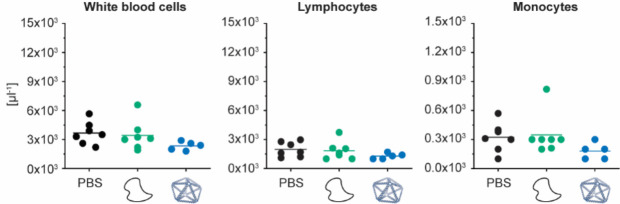

Figure 3.. Characterizing blood cell counts in BALB/c mice after i.v. administration

BALB/c mice were intravenously administrated through tail-vein injection with 4 mg/kg of PB84 per animal. Total white blood cell, lymphocyte, and monocyte cell counts were not elevated when NANPs were administered, consistent with a PBS control and an unstructured ssDNA control. Blood cell counts were assessed from n ≥ 5 biological replicates per group. One-way ANOVA was performed for the blood cell counts followed by Tukey’s multiple comparison test. Significant differences are denoted as * - p < 0.050, ** - p < 0.010, and *** - p < 0.001.

Figure 4.. Characterizing autoimmunity induction in SJL/J mice after i.p. administration

SJL/J mice were intraperitoneally administered with 0.4 mg/kg of PB84 per animal. (A) Kidney scores were assessed at 20 weeks post treatment and (B) DNA-specific IgM and IgG antibody titers were assessed before treatment (time 0 or baseline) and after 16- and 20-weeks post treatment from ten animals (n = 10) per group. One-way ANOVA was performed followed by Tukey’s multiple comparison test. Significant differences are denoted as * - p < 0.050, ** - p < 0.010, and *** - p < 0.001.

Figure 5.. Biodistribution in BALB/c mice after i.v. administration

In vivo optical imaging for analysis of pharmacokinetics and biodistribution. BALB/c mice were injected with PBS, AlexaFluor750-labeled oligonucleotide, or a DNA origami PB84-5xAF750 and imaged at multiple timepoints post-injection. (A) Representative fluorescence images at 15- and 60-minutes post-injection (n=3 per group). (B) Representative fluorescence images of ex vivo organs harvested 60 minutes post-injection of PB84-5xAF750. PB84-5xAF750 was mostly accumulated in the liver, with minor accumulation in the kidney, spleen, and lung after 60 minutes. (C) Fluorescence intensity measurements of drawn blood for up to 60-minutes post-injection. One-way ANOVA was performed for blood kinetics measurements followed by Tukey’s multiple comparison test. Significant differences are denoted as * - p < 0.050, ** - p < 0.010, and *** - p < 0.001.
