Supply chain logistics with quantum and classical annealing algorithms

Abstract

Noisy intermediate-scale quantum (NISQ) hardware is almost universally incompatible with full-scale optimization problems of practical importance which can have many variables and unwieldy objective functions. As a consequence, there is a growing body of literature that tests quantum algorithms on miniaturized versions of problems that arise in an operations research setting. Rather than taking this approach, we investigate a problem of substantial commercial value, multi-truck vehicle routing for supply chain logistics, at the scale used by a corporation in their operations. Such a problem is too complex to be fully embedded on any near-term quantum hardware or simulator; we avoid confronting this challenge by taking a hybrid workflow approach: we iteratively assign routes for trucks by generating a new binary optimization problem instance one truck at a time. Each instance has [Formula: see text] quadratic binary variables, putting it in a range that is feasible for NISQ quantum computing, especially quantum annealing hardware. We test our methods using simulated annealing and the D-Wave Hybrid solver as a place-holder in wait of quantum hardware developments. After feeding the vehicle routes suggested by these runs into a highly realistic classical supply chain simulation, we find excellent performance for the full supply chain. Our work gives a set of techniques that can be adopted in contexts beyond vehicle routing to apply NISQ devices in a hybrid fashion to large-scale problems of commercial interest.

Figure 1

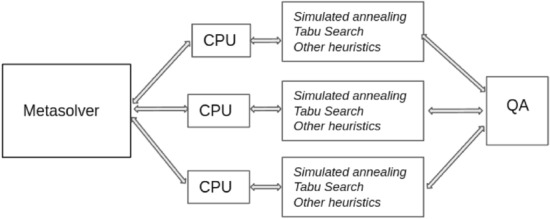

A functional diagram of the D-Wave Systems hybrid solver. The Metasolver on the left governs the overarching algorithm. It launches multiple threads which uses classical heuristic algorithms running on CPUs or GPUs as depicted in the middle of the figure. Simultaneously, it uses the quantum annealer (QA) on the right to search for promising solutions of smaller subsets of the problem to provide additional promising starting points to the heuristic algorithms.

Figure 2

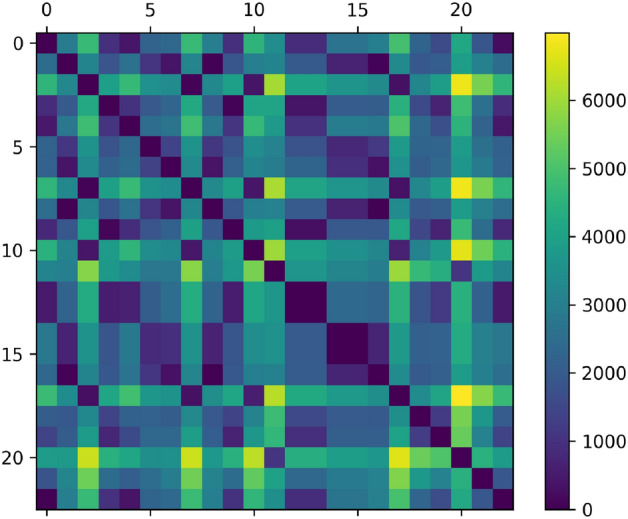

The matrix of driving times between the 23 nodes in the Aisin logistical routing problem. Units are in seconds which is the same unit used for the PUBO construction (figure generated by the authors using matplotlib 3.6.3 found at https://pypi.org/project/matplotlib/).

Figure 3

The overall demand matrix (as defined in Eq. (5) for the Aisin Logistics Problem of “Aisin Corporation vehicle routing problem”. Note that of the ${23}^2=529$ entries for the matrix, only 115 are nonzero (figure generated by the authors using matplotlib 3.6.3 found at https://pypi.org/project/matplotlib/).

Figure 4

Estimated demands computed during the truck loop process for simulated annealing. The algorithm terminated after 61 trucks were given routes. Demands are estimated by the method explained in “Supply chain workflow”.

Figure 5

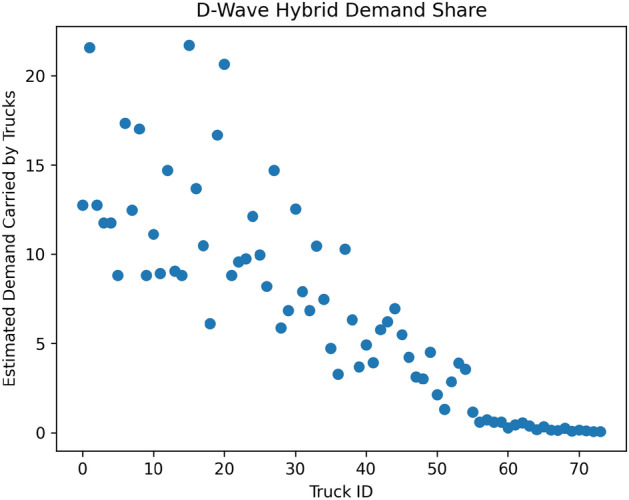

Estimated demands computed during the truck loop process using the D-Wave Hybrid solver. The algorithm terminated after 74 trucks were given routes. Note that the last 15 trucks consume a very small amount of demand, suggesting that they can be replaced by a smaller number of trucks. Demands are estimated by the method explained in “Supply chain workflow”.

Figure 6

Connectivity graph for routes currently used by Aisin Corporation. Lines indicate pairs of the 23 nodes that trucks drive between in the routes determined by Aisin Corporation logistics experts. For this routing, 142 trucks deliver approximately 340,000 boxes containing $\sim 15,000$ unique parts. Among these parts, there are 115 unique routing requirements as described in “Individual boxes and the box soup simplification” (figure generated by the authors using kepler.gl v3.0.0-alpha.0 found at https://kepler.gl/).

Figure 7

Connectivity graph for routes found through our workflow with 61 trucks, the D-Wave hybrid solver, and full-scale simulation (see “Full-scale simulation”). The problem instance is the same as described in the caption of Fig. 6 (figure generated by the authors using kepler.gl v3.0.0-alpha.0 found at https://kepler.gl/).

Figure 8

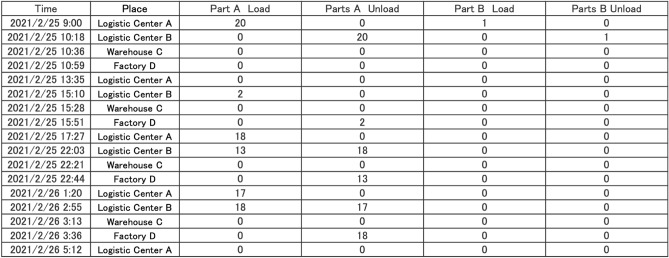

Example of a detailed route found for a truck after D-Wave hybrid execution followed by full-scale simulation. This table only includes loading and unloading instructions for two of approximately 15, 000 parts, all of which are accounted for in our workflow.
