Wireless in vivo Recording of Cortical Activity by an Ion-Sensitive Field Effect Transistor

Abstract

Wireless brain technologies are empowering basic neuroscience and clinical neurology by offering new platforms that minimize invasiveness and refine possibilities during electrophysiological recording and stimulation. Despite their advantages, most systems require on-board power supply and sizeable transmission circuitry, enforcing a lower bound for miniaturization. Designing new minimalistic architectures that can efficiently sense neurophysiological events will open the door to standalone microscale sensors and minimally invasive delivery of multiple sensors. Here we present a circuit for sensing ionic fluctuations in the brain by an ion-sensitive field effect transistor that detunes a single radiofrequency resonator in parallel. We establish sensitivity of the sensor by electromagnetic analysis and quantify response to ionic fluctuations in vitro. We validate this new architecture in vivo during hindpaw stimulation in rodents and verify correlation with local field potential recordings. This new approach can be implemented as an integrated circuit for wireless in situ recording of brain electrophysiology.

Keywords: Brain recording; ISFET; Ion-sensitive field effect transistor; Wireless.

Fig. 1. Wireless ion sensitive field effect transistor (ISFET) for in vivo cortical recordings of ionic fluctuations.

a Source and drain of ISFET device are connected to top and bottom plates of capacitor, linking in parallel to circuit. b Q of resonator is dependent on ionic concentrations local to ISFET gate electrode. c Active site of ISFET is embedded through cranial window on surface of somatosensory cortex. d Ion fluctuations detected wirelessly represented in time domain by S11 minima between resonator and antenna over 60 s window.

Fig. 2. Electromagnetic simulations of ISFET-coupled resonator response.

a Simulation arena of RLC resonator coupled to ISFET model. S-parameter frequency response is evaluated at a near field receiver. b E-field is maximized at resonance. c Changes in ionic concentrations at ISFET gate decrease impedance, Q, and e-field. d Left - representative ISFET model connected to resonator. Right - current field density at 0.5 V overdrive voltage (V_ov). e Drain-source current (I_ds) as a function of V_ov. f Small signal transconductance (g_m) as a function of V_ov. g Frequency response modulation at physiological pH range. Inset - closeup surrounding resonance.

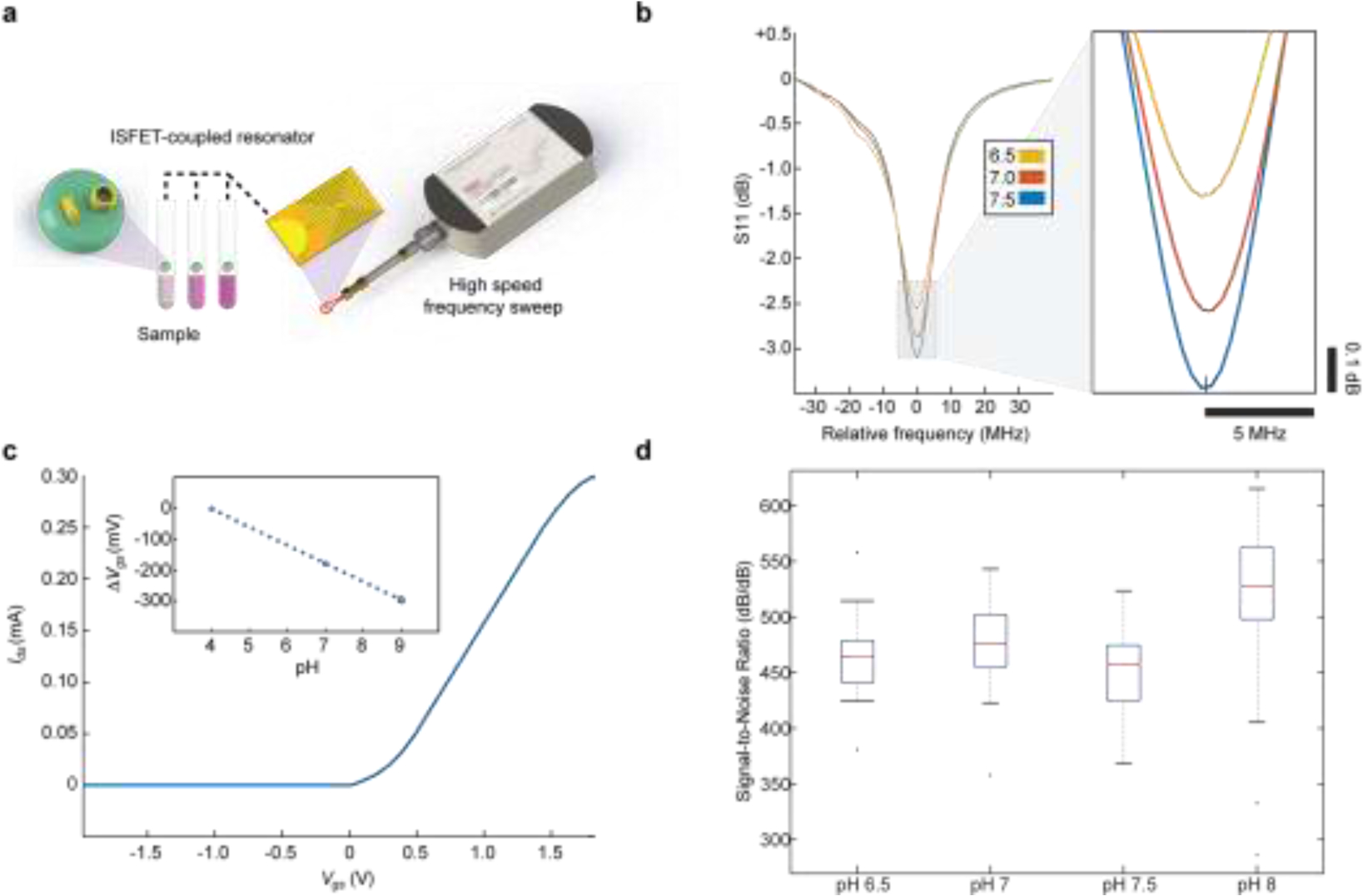

Fig. 3. Benchtop assessment of wireless ISFET sensitivity.

a Experimental configuration: readouts of ISFET-coupled resonator immersed in different pH samples are received by near field antenna. A series of frequency response sweeps is acquired by high-speed vector network analyzer. b Examples of frequency response curves for physiological pH levels. c Current-voltage (IV) characteristic curve. Inset: Change in drain-source voltage (V_ds) with pH levels. d Arithmetic mean of signal-to-noise ratio per pH level (red: outliers, included in mean, n = 10, all error bars denote s.e.m.).

Fig. 4. Wireless ISFET somatosensory cortical recordings during hindpaw stimulation.

a Pre-stimulus readouts of spontaneous activity. b Readouts from S1HL somatosensory cortex during a 2 Hz electrical stimulus of contralateral hindpaw. c Representative maximum single pulse responses in wireless ISFET recording. d Peak differential LFP recordings in response to stimulation. e Heatmap depicting maximum peaks of LFP recordings in d. f Average amplitude of response to stimulation normalized to baseline. Asterix denotes t-test p-values < .05, error bars are standard errors, n = 5 for all conditions, error bars denote s.e.m.

Fig. 5. A repertoire of positive and negative phase wireless ISFET responses correlating with delta LFP activity band.
