. 2023 Jan 5;5(2):189-195.
doi: 10.1016/j.jhsg.2022.12.002. eCollection 2023 Mar.

Ideal Length and Diameter for Intramedullary Screw Fixation of Metacarpal Fractures: A Biomechanical Study

Kent T Yamaguchi Jr  1 , Scott Telfer  1 , Nicholas Iannuzzi  1 , Don Hoang  1 , Jerry I Huang  1
Affiliations

Ideal Length and Diameter for Intramedullary Screw Fixation of Metacarpal Fractures: A Biomechanical Study

Kent T Yamaguchi Jr et al. J Hand Surg Glob Online. .

Abstract

Purpose: This biomechanical study evaluated the effect of intramedullary screw diameter and length relative to 3-point bending force and torsional force when used to stabilize metacarpal shaft fractures.

Methods: Transverse osteotomies were made in the proximal metacarpal shaft in 36 middle finger metacarpal fourth-generation composite Sawbones. To compare screw diameters, antegrade intramedullary screws of 30-mm length were placed in 6 metacarpals, which included 4.7-mm Acutrak 2, Standard Acutrak 2 (4.0 mm), and Mini-Acutrak 2 (3.5 mm) screws. To compare screw lengths, metacarpals were fixated with Standard Acutrak 2 screws of 26, 30, or 34 mm in length, with screw tips bypassing the osteotomy by 6, 10, or 14 mm, respectively. A 6 degrees of freedom robot was used for torsional and 3-point bending testing.

Results: Increasing screw diameter demonstrated significant differences in both 3-point bending and torsional strengths. Maximum torsional loads were 69 Ncm (4.7-mm Acutrak 2), 45 Ncm (Standard Acutrak 2), and 27 Ncm (Mini-Acutrak 2) (P < .05). Loads to failure in the 3-point bending tests were 916 N (4.7-mm Acutrak 2), 713 N (Standard Acutrak 2), and 284 N (Mini-Acutrak 2) (P < .05). Differing screw lengths demonstrated significant differences with maximum torsional loads when comparing the 26-mm screws (22 Ncm) with 30- and 34-mm screws (45 and 55 Ncm, respectively) (P < .05). The 3-point dorsal bending strengths were significantly different between the 26-mm screws (320 N) and 30- and 34-mm screws (713 N and 702 N, respectively) (P < .05).

Conclusions: The results demonstrated significantly higher torsional strength and resistance to 3-point bending with larger intramedullary screw diameters. Further, when selecting the intramedullary screw length, the screw tip should pass at least 10 mm beyond the fracture.

Clinical relevance: This study provided biomechanical evidence to guide surgeons in selecting intramedullary screw diameter and length for treating metacarpal fractures.

Keywords: Biomechanics; Intramedullary screw; Metacarpal fracture fixation; Minimally invasive.

PubMed Disclaimer

Figures

Figure 1
Figure 1

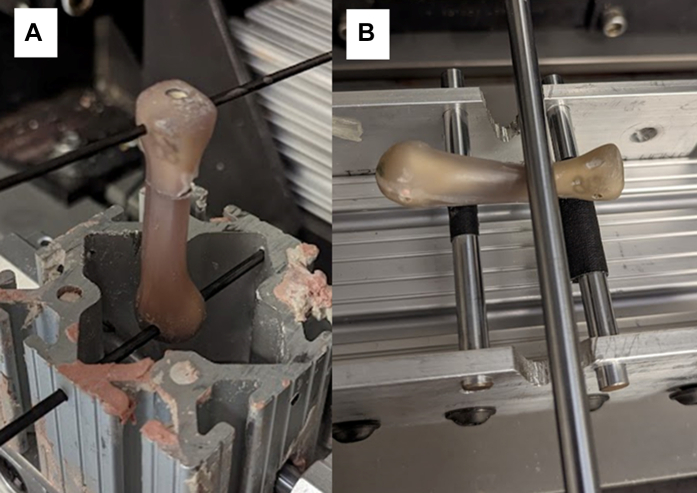

Illustrative images of the test set up for A torsional tests and B 3-point bending tests. Note that some components have been removed to allow for clear visualization.
Figure 2
Figure 2

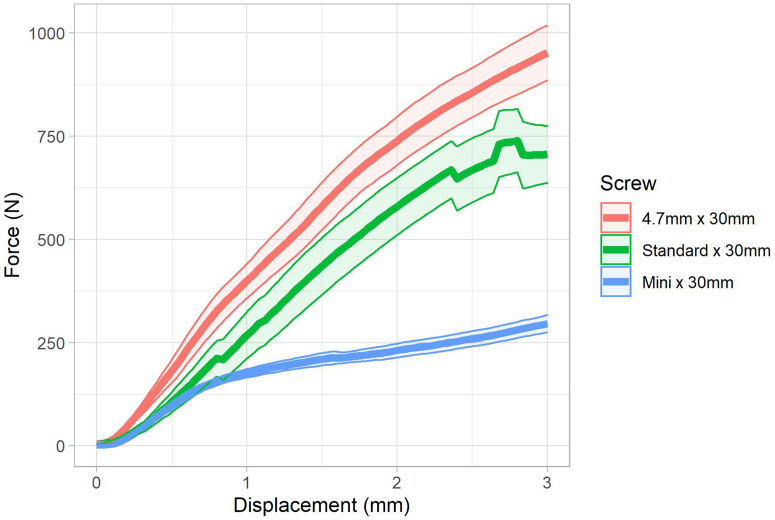

Metacarpal displacement versus force for 3-point bending tests for range of screw diameters.
Figure 3
Figure 3

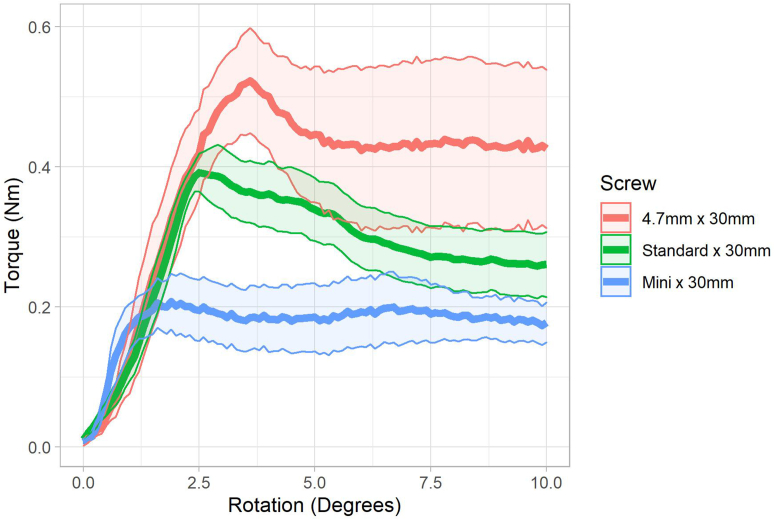

Metacarpal rotation versus torque for torsional load tests for range of screw diameters.
Figure 4
Figure 4

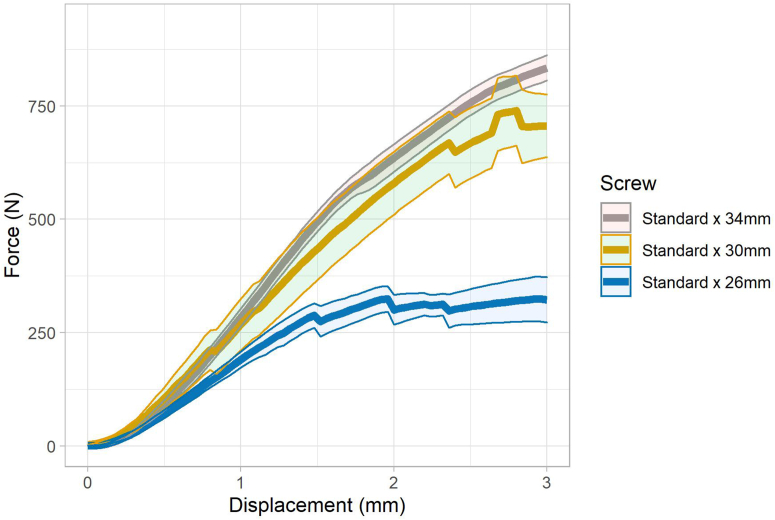

Metacarpal displacement versus force for 3-point bending tests for range of screw lengths.
Figure 5
Figure 5

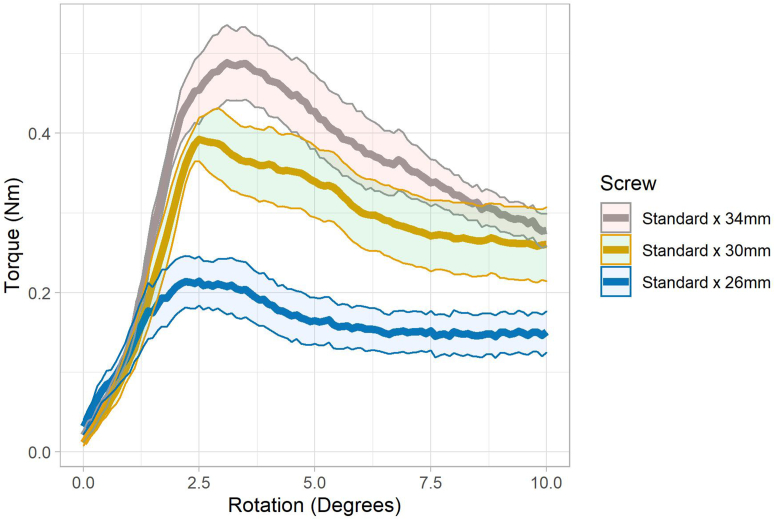

Metacarpal rotation versus torque for torsional load tests for range of screw lengths.
