. 2023 Mar 15;11(6):863.
doi: 10.3390/healthcare11060863.

Deep Learning-Based Prediction of Diabetic Retinopathy Using CLAHE and ESRGAN for Enhancement

Ghadah Alwakid  1 , Walaa Gouda  2 , Mamoona Humayun  3
Affiliations

Deep Learning-Based Prediction of Diabetic Retinopathy Using CLAHE and ESRGAN for Enhancement

Ghadah Alwakid et al. Healthcare (Basel). .

Abstract

Vision loss can be avoided if diabetic retinopathy (DR) is diagnosed and treated promptly. The main five DR stages are none, moderate, mild, proliferate, and severe. In this study, a deep learning (DL) model is presented that diagnoses all five stages of DR with more accuracy than previous methods. The suggested method presents two scenarios: case 1 with image enhancement using a contrast limited adaptive histogram equalization (CLAHE) filtering algorithm in conjunction with an enhanced super-resolution generative adversarial network (ESRGAN), and case 2 without image enhancement. Augmentation techniques were then performed to generate a balanced dataset utilizing the same parameters for both cases. Using Inception-V3 applied to the Asia Pacific Tele-Ophthalmology Society (APTOS) datasets, the developed model achieved an accuracy of 98.7% for case 1 and 80.87% for case 2, which is greater than existing methods for detecting the five stages of DR. It was demonstrated that using CLAHE and ESRGAN improves a model's performance and learning ability.

Keywords: APTOS; diabetic retinopathy; image enhancement; vision loss.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
The five phases of diabetic retinopathy, listed by severity.
Figure 2
Figure 2
An illustration of the DR detecting system process.
Figure 3
Figure 3
Samples of the proposed image-enhancement techniques: original, unedited image; then rendition of this same image with CLAHE; finally final enhanced image after applying ESRGAN.
Figure 4
Figure 4

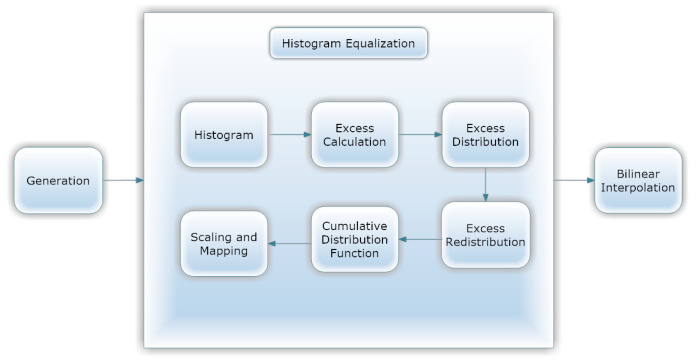

CLAHE architecture.
Figure 5
Figure 5
ESRGAN architecture.
Figure 6
Figure 6
Illustrations of the same image, augmented with enhancement.
Figure 7
Figure 7
Illustrations of the same image augmented without enhancement.
Figure 8
Figure 8
Number of training images after using augmentation techniques.
Figure 9
Figure 9
Best results for both scenarios.
Figure 10
Figure 10
Best confusion matrix of Inception-V3 with enhancement (with CLAHE + ESRGAN).
Figure 11
Figure 11
Best confusion matrix of Inception-V3 without enhancement (without CLAHE + ESRGAN).
