. 2023 Oct;33(7):3059-3065.
doi: 10.1007/s00590-023-03538-6. Epub 2023 Apr 1.

Radiation dose to staff from medical X-ray scatter in the orthopaedic theatre

T Dorman  1 , B Drever  1 , S Plumridge  1 , K Gregory  2 , M Cooper  2 , A Roderick  3   4 , E Arruzza  5   6
Affiliations

Radiation dose to staff from medical X-ray scatter in the orthopaedic theatre

T Dorman et al. Eur J Orthop Surg Traumatol. 2023 Oct.

Abstract

Purpose: Given the growing demand for intraoperative imaging, there is increased concern for radiation dose for orthopaedic surgical staff. This study sought to determine the distribution of scatter radiation from fluoroscopic imaging in the orthopaedic surgical environment, with particular emphasis on the positions of personnel and the type of orthopaedic surgery performed.

Methods: A radiation survey detector was deployed at various angles and distances around an anthropomorphic phantom. The scatter dose rate in microsieverts per hour (µSv/h) was recorded using consistent exposure parameters for five common surgical procedures. A C-arm unit produced radiation for the hip arthroscopy, hip replacement and knee simulations, whilst a mini C-arm unit produced fluoroscopy for the foot and hand simulations.

Results: Readings were tabulated, and coloured heatmaps were generated from scatter measurements for each of the five procedures. Positions corresponding to the typical location of the surgical staff (surgeon, surgical assistant, anaesthetist, instrument (scrub) nurse, circulation (scout) nurse and anaesthetic nurse) were superimposed on heatmaps. The surgeon's proximity to the radiation source meant this position experienced the greatest amount of radiation in all five surgical procedures. Mini C-arm doses were considered low in all procedures for positions, with and without lead protection.

Conclusion: This investigation demonstrated the distribution of scattered radiation dose experienced at different positions within the orthopaedic surgical theatre. It reinforces the importance of staff increasing their distance from the primary beam where possible, reducing exposure time and increasing shielding with lead protection.

Keywords: Fluoroscopy; Nursing; Orthopaedics; Radiation; Radiography.

PubMed Disclaimer

Conflict of interest statement

The authors have no competing interests to declare that are relevant to the content of this article.

Figures

Fig. 1
Fig. 1
Heatmap of dose distribution for hip replacement and hip arthroscopy surgery
Fig. 2
Fig. 2
Heatmap of dose distribution for knee surgery in the lateral position
Fig. 3
Fig. 3
Heatmap of dose distribution for foot surgery
Fig. 4
Fig. 4

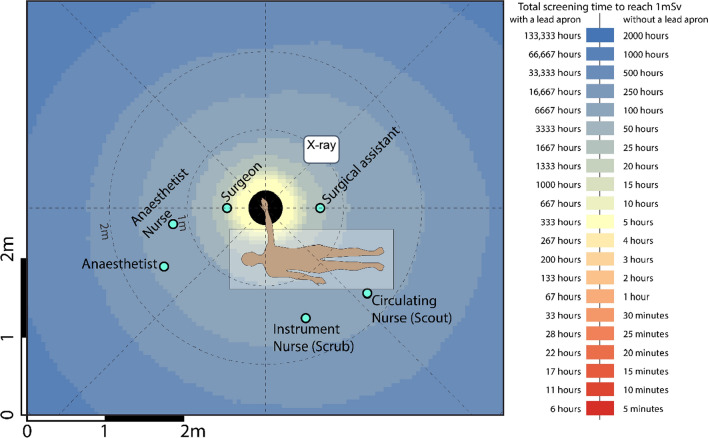

Heatmap of dose distribution for hand surgery
See this image and copyright information in PMC

References

    1. Giordano BD, Ryder S, Baumhauer JF, DiGiovanni BF. Exposure to direct and scatter radiation with use of mini-c-arm fluoroscopy. J Bone Joint Surg Am. 2007;89(5):948–952. doi: 10.2106/jbjs.F.00733. - DOI - PubMed
    1. Kaplan DJ, Patel JN, Liporace FA, Yoon RS. Intraoperative radiation safety in orthopaedics: a review of the ALARA (As low as reasonably achievable) principle. Patient Saf Surg. 2016;10:27–27. doi: 10.1186/s13037-016-0115-8. - DOI - PMC - PubMed
    1. Rehani MM, Ciraj-Bjelac O, Vañó E, Miller DL, Walsh S, Giordano BD, Persliden J. ICRP Publication 117. Radiological protection in fluoroscopically guided procedures performed outside the imaging department. Ann ICRP. 2010;40(6):1–102. doi: 10.1016/j.icrp.2012.03.001. - DOI - PubMed
    1. Chou LB, Chandran S, Harris AH, Tung J, Butler LM. Increased breast cancer prevalence among female orthopaedic surgeons. J Womens Health. 2012;21(6):683–689. doi: 10.1089/jwh.2011.3342. - DOI - PubMed
    1. Mastrangelo G, Fedeli U, Fadda E, Giovanazzi A, Scoizzato L, Saia B. Increased cancer risk among surgeons in an orthopaedic hospital. Occup Med (Lond) 2005;55(6):498–500. doi: 10.1093/occmed/kqi048. - DOI - PubMed
