. 2022 Dec 1;32(5):659-669.
doi: 10.1007/s10068-022-01207-8. eCollection 2023 Apr.

Effect of screw speed and die temperature on physicochemical, textural, and morphological properties of soy protein isolate-based textured vegetable protein produced via a low-moisture extrusion

Ji Sou Lyu #  1 , Jung-Soo Lee #  1 , Tae Young Chae  1 , Chan Suk Yoon  2 , Jaejoon Han  1   3
Affiliations

Effect of screw speed and die temperature on physicochemical, textural, and morphological properties of soy protein isolate-based textured vegetable protein produced via a low-moisture extrusion

Ji Sou Lyu et al. Food Sci Biotechnol. .

Abstract

In this study, textured vegetable protein (TVP) based on soy protein isolate, wheat gluten, and corn starch was prepared at a 5:3:2 (w/w) ratio using a low-moisture extrusion process. To evaluate the effects of extrusion parameters, die temperature and screw rotation speed, on the properties of TVP, these two parameters were manipulated at a constant barrel temperature and moisture content. The results indicated that increasing the die temperature increased the expansion ratio while decreasing the density of the extrudates. Simultaneously, increasing the screw rotation speed clearly increased the specific mechanical energy of the TVP. Furthermore, mathematical modelling suggested that the expansion ratio increases exponentially to the die temperature. However, extreme process conditions bring about a decrease in water absorption capacity and expansion ratio, as well as undesirable texture and microstructure. The results suggested that the properties of SPI-based TVP are directly influenced by the extrusion process parameters, screw speed and die temperature.

Supplementary information: The online version contains supplementary material available at 10.1007/s10068-022-01207-8.

Keywords: Extrusion process parameter; Low-moisture extrusion; Soy protein isolate; Textured vegetable protein; Twin-screw extruder.

PubMed Disclaimer

Conflict of interest statement

Conflict of interestThe authors declare no conflict of interest.

Figures

Fig. 1
Fig. 1

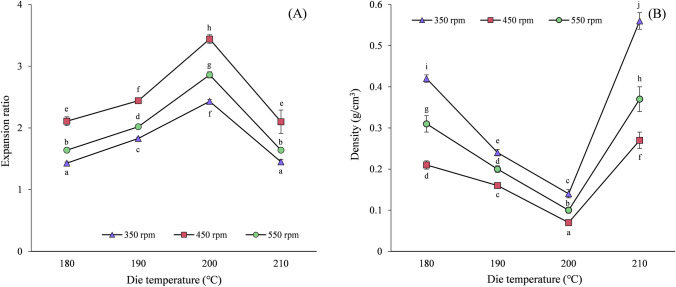

Expansion ratio (A) and bulk density (B) of textured vegetable protein (TVP) at different extrusion parameters of die temperature (°C) and screw speed (rpm)
Fig. 2
Fig. 2

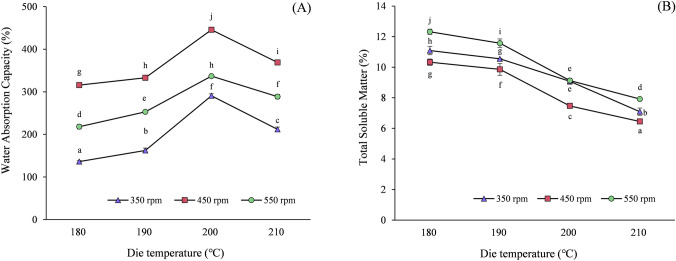

Water absorption capacity (WAC) (A) and Total soluble matter (TSM) (B) of textured vegetable protein (TVP) at different extrusion parameters of die temperature (°C) and screw speed (rpm)
Fig. 3
Fig. 3

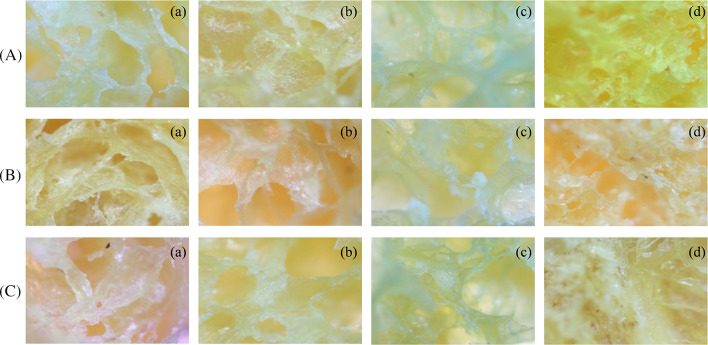

Light microscopy of textured vegetable protein (TVP) of (A): 350 rpm; (B): 450 rpm; (C): 550 rpm of screw rotation speed and (a) 180 °C (b) 190 °C (c) 200 °C (d) 210 °C of die temperature
See this image and copyright information in PMC

References

    1. Akdogan H. High moisture food extrusion. International Journal of Food Science & Technology. 1999;34:195–207. doi: 10.1046/j.1365-2621.1999.00256.x. - DOI
    1. Asgar M, Fazilah A, Huda N, Bhat R, Karim A. Nonmeat protein alternatives as meat extenders and meat analogs. Comprehensive Reviews in Food Science and Food Safety. 2010;9:513–529. doi: 10.1111/j.1541-4337.2010.00124.x. - DOI - PubMed
    1. Ataei F, Hojjatoleslamy M. Physicochemical and sensory characteristics of sponge cake made with olive leaf. Journal of Food Measurement and Characterization. 2017;11:2259–2264. doi: 10.1007/s11694-017-9610-6. - DOI
    1. Beck SM, Knoerzer K, Arcot J. Effect of low moisture extrusion on a pea protein isolate’s expansion, solubility, molecular weight distribution and secondary structure as determined by Fourier Transform Infrared Spectroscopy (FTIR) Journal of Food Engineering. 2017;214:166–174. doi: 10.1016/j.jfoodeng.2017.06.037. - DOI
    1. Beck SM, Knoerzer K, Foerster M, Mayo S, Philipp C, Arcot J. Low moisture extrusion of pea protein and pea fibre fortified rice starch blends. Journal of Food Engineering. 2018;231:61–71. doi: 10.1016/j.jfoodeng.2018.03.004. - DOI
