Coronary X-ray angiography segmentation using Artificial Intelligence: a multicentric validation study of a deep learning model

Miguel Nobre Menezes  1   2 , João Lourenço Silva  3 , Beatriz Silva  4   5 , Tiago Rodrigues  4   5 , Cláudio Guerreiro  6 , João Pedro Guedes  7 , Manuel Oliveira Santos  8   9 , Arlindo L Oliveira  3 , Fausto J Pinto  4   5
Affiliations

Coronary X-ray angiography segmentation using Artificial Intelligence: a multicentric validation study of a deep learning model

Miguel Nobre Menezes et al. Int J Cardiovasc Imaging. 2023 Jul.

Abstract

Introduction: We previously developed an artificial intelligence (AI) model for automatic coronary angiography (CAG) segmentation, using deep learning. To validate this approach, the model was applied to a new dataset and results are reported.

Methods: Retrospective selection of patients undergoing CAG and percutaneous coronary intervention or invasive physiology assessment over a one month period from four centers. A single frame was selected from images containing a lesion with a 50-99% stenosis (visual estimation). Automatic Quantitative Coronary Analysis (QCA) was performed with a validated software. Images were then segmented by the AI model. Lesion diameters, area overlap [based on true positive (TP) and true negative (TN) pixels] and a global segmentation score (GSS - 0 -100 points) - previously developed and published - were measured.

Results: 123 regions of interest from 117 images across 90 patients were included. There were no significant differences between lesion diameter, percentage diameter stenosis and distal border diameter between the original/segmented images. There was a statistically significant albeit minor difference [0,19 mm (0,09-0,28)] regarding proximal border diameter. Overlap accuracy ((TP + TN)/(TP + TN + FP + FN)), sensitivity (TP / (TP + FN)) and Dice Score (2TP / (2TP + FN + FP)) between original/segmented images was 99,9%, 95,1% and 94,8%, respectively. The GSS was 92 (87-96), similar to the previously obtained value in the training dataset.

Conclusion: the AI model was capable of accurate CAG segmentation across multiple performance metrics, when applied to a multicentric validation dataset. This paves the way for future research on its clinical uses.

Keywords: Artificial Intelligence; Coronary angiography; Coronary artery disease; Deep learning; Machine learning; Percutaneous coronary intervention..

PubMed Disclaimer

Conflict of interest statement

Not applicable.

Figures

Fig. 1
Fig. 1
Graphical Abstract: Overview of the segmentation and analysis process. Top left: Baseline CAG of a right coronary artery. Top right: AI automated segmented image. Bottom left: automatic QCA analysis image output in detail. Bottom middle: transposition of the lesion markers on the segmented image in detail. Bottom right: area overlap between the region of interest in the auto-QCA and the segmented image; white pixels are true positives; green pixels are false negatives; red pixels are false positives

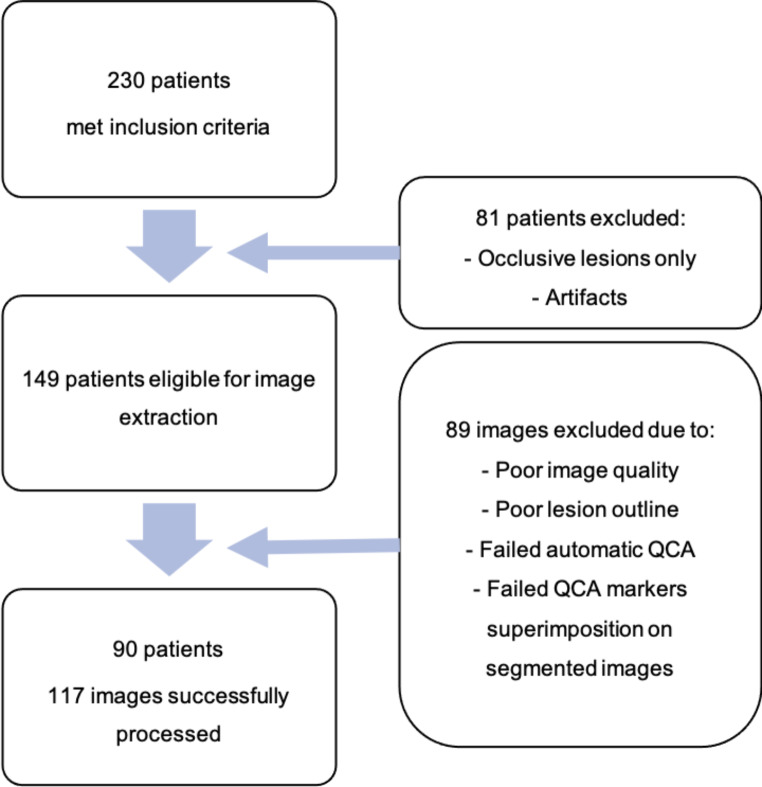

Fig. 2
Fig. 2
Flowchart of patient and image selection

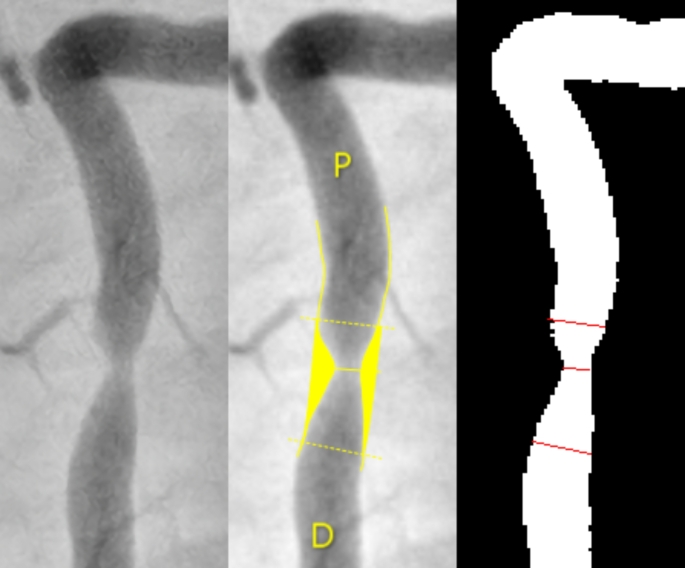

Fig. 3
Fig. 3
Comparative view of a right coronary artery (56% stenosis by QCA). Left-to-right: original image, auto-QCA, transposition of lines (proximal border diameter, lesion diameter and distal border diameter) to segmented image
Fig. 4
Fig. 4
Catheter segmentation assessment. Left-to-right: original image, auto-border detection by reference software, transposition of lines in proximal border to segmented image

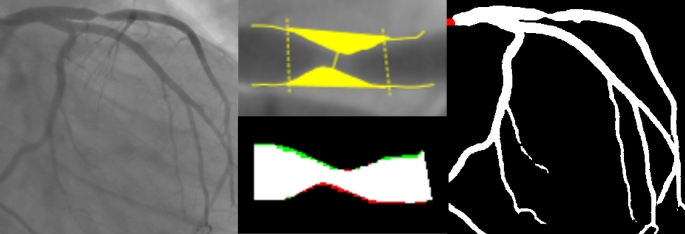

Fig. 5
Fig. 5
Area overlap in a and left anterior descending 64% stenosis (as measured by QCA).
