Predicting relations between SOAP note sections: The value of incorporating a clinical information model

Abstract

Physician progress notes are frequently organized into Subjective, Objective, Assessment, and Plan (SOAP) sections. The Assessment section synthesizes information recorded in the Subjective and Objective sections, and the Plan section documents tests and treatments to narrow the differential diagnosis and manage symptoms. Classifying the relationship between the Assessment and Plan sections has been suggested to provide valuable insight into clinical reasoning. In this work, we use a novel human-in-the-loop pipeline to classify the relationships between the Assessment and Plan sections of SOAP notes as a part of the n2c2 2022 Track 3 Challenge. In particular, we use a clinical information model constructed from both the entailment logic expected from the aforementioned Challenge and the problem-oriented medical record. This information model is used to label named entities as primary and secondary problems/symptoms, events and complications in all four SOAP sections. We iteratively train separate Named Entity Recognition models and use them to annotate entities in all notes/sections. We fine-tune a downstream RoBERTa-large model to classify the Assessment-Plan relationship. We evaluate multiple language model architectures, preprocessing parameters, and methods of knowledge integration, achieving a maximum macro-F1 score of 82.31%. Our initial model achieves top-2 performance during the challenge (macro-F1: 81.52%, competitors' macro-F1 range: 74.54%-82.12%). We improved our model by incorporating post-challenge annotations (S&O sections), outperforming the top model from the Challenge. We also used Shapley additive explanations to investigate the extent of language model clinical logic, under the lens of our clinical information model. We find that the model often uses shallow heuristics and nonspecific attention when making predictions, suggesting language model knowledge integration requires further research.

Keywords: Electronic health record; Entailment; Intensive care unit; Language modeling; Natural language processing; SOAP notes.

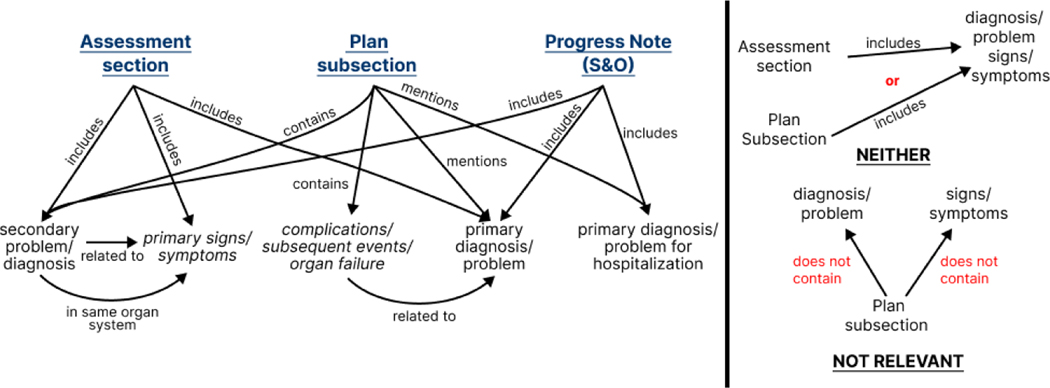

Figure 1:

Clinical information model derived from n2c2 annotation guidelines. In blue, we highlight the four sections of the SOAP note. All other nodes in this graph act as named entities to be annotated.

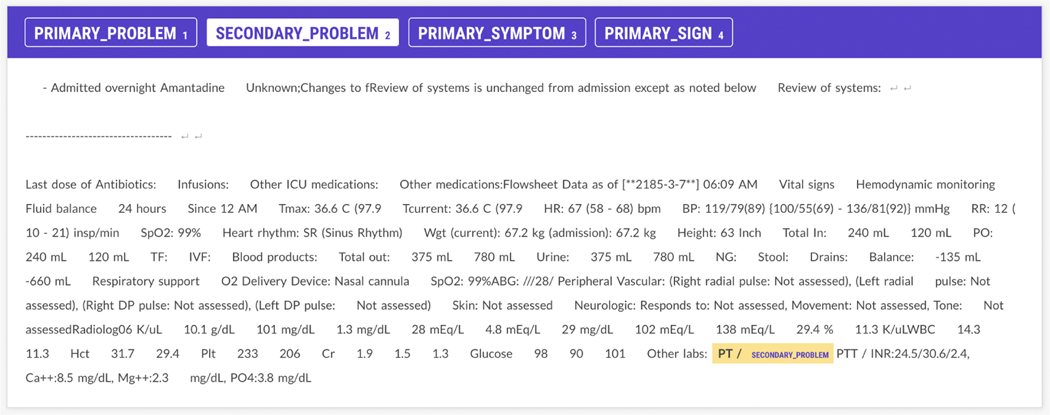

Figure 2:

Screenshots of Prodigy Assessment and Plan subsection annotation interfaces with a DIRECT entailment relation

Figure 3:

Task pipeline including NER pipeline and classification model

Figure 4:

An image of the Subjective & Objective in Prodigy with limited context that makes problem, sign, and symptom identification difficult.

Figure 5:

In this example, the model correct identified a DIRECT relation based on a directly referred sign/symptom. However, when we look at the attention of the tokens over the Assessment text, we see a very nonspecific relationship between all problems, signs, and symptoms mentioned and Hypotension in the Plan subsection. While the model identifies certain relevant clinical features (including low BP in the S&O sections) much of its attention is fairly nonspecific, implying a lack of clinical reasoning in decision making.

Figure 6:

Model incorrectly labels a note as a NEITHER relation without the Subjective & Objective context, but then adjusts its predict to the correct one with additional context.
