Monitoring the Resolution of Acute Exacerbation of Airway Bronchoconstriction in an Asthma Attack Using Capnogram Waveforms

Abstract

Patients with acute bronchospasm can show a distinct slope of the capnogram ("shark fin") as a result of asynchronous alveolar excretion. Although the slope of the upward alveolar plateau (phase III) in the capnogram waveforms of non-intubated patients is known to help monitor the therapeutic response to acute bronchospasm, little is known about the significance of its slope among intubated patients. Therefore, we quantified the phase III slope of an intubated patient with acute asthma to investigate whether capnogram waveforms could be useful for identifying the response to antibronchospasm treatment in real time.

Case summary: The patient was a 53-year-old man who had a history of asthma. He presented to the emergency department with the primary complaint of respiratory distress. He was diagnosed with severe asthma attack and required invasive mechanical ventilation for 10 days, during which we quantified the phase III slope of the capnogram. The phase III slope decreased during treatment, with a significant reduction from the third to the fourth day; however, a significant decrease in end-tidal carbon dioxide (EtCO₂) was observed from the fifth to the sixth day. We found that the slope values decreased earlier than EtCO₂ reduction, although the absolute EtCO₂ values eventually decreased in response to antibronchospasm treatment.

Conclusion: There were several reports that evaluated the phase III slope in non-intubated patients with asthma, but this is the first report measuring the phase III slope in an intubated patient over several days. Capnogram waveforms may serve as useful real-time indicators to monitor acute bronchospasm among mechanically ventilated patients.

Keywords: asthma; asthma attack; capnogram waveforms; dioxide; end-tidal carbon.

Figure 1.

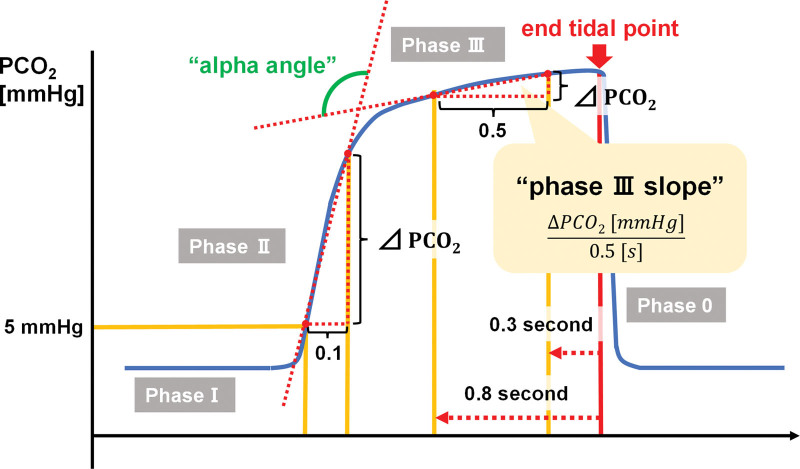

Capnogram waveform indices. The phase III slope in the capnogram waveform was calculated using PaCO₂ values between 0.8 and 0.3 s (total time 0.5 s) before the end-tidal peak. The slope of phase II was measured for 0.1 s from the first point when the measured CO₂ rose above 5 mm Hg, and the alpha angle was formed by the slopes of phases II and III.

Figure 2.

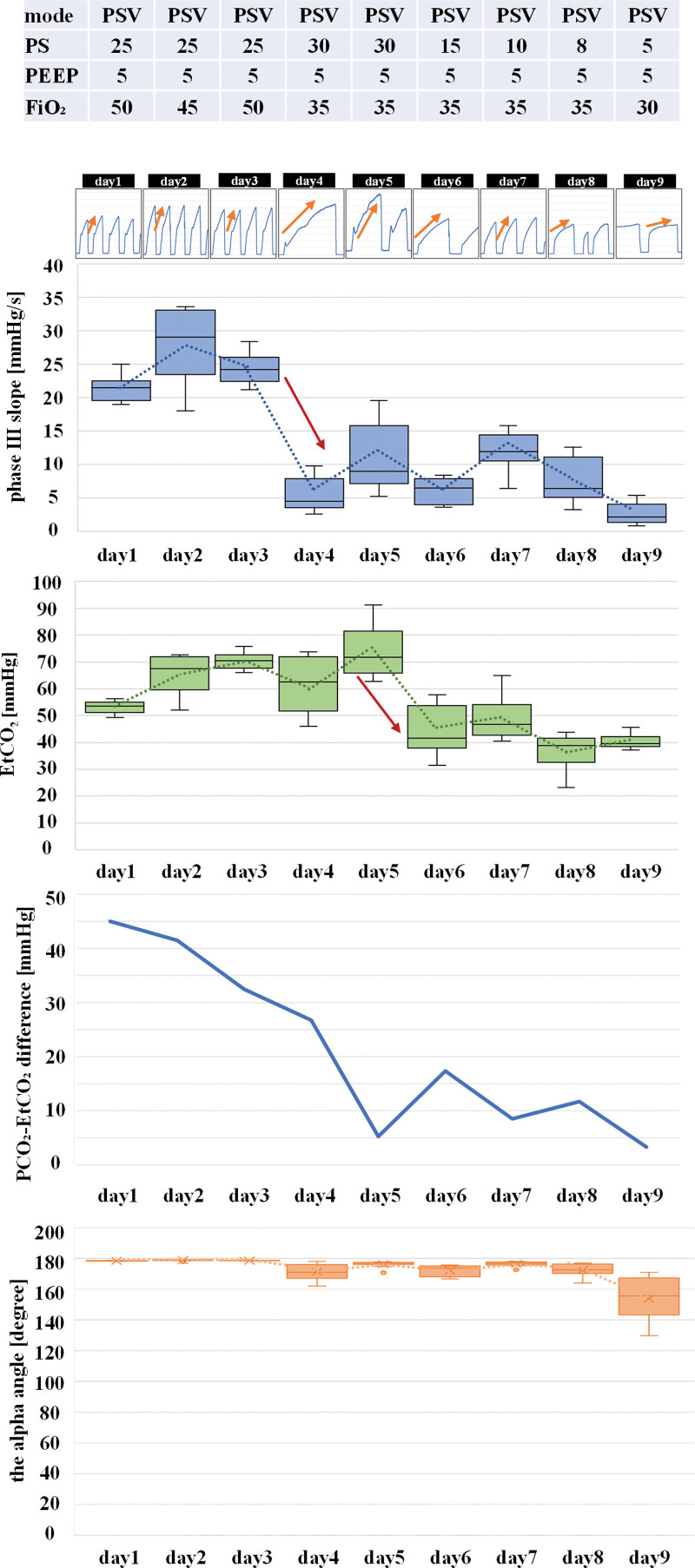

Phase III slope changes, end-tidal carbon dioxide (EtCO2) changes, the difference between EtCO2 and PaCO2 during intubation, and the alpha angle changes during intubation. A, The ventilator settings of each day. B, The typical daily waveforms. C, The median (center line), 25th and 75th percentiles, and the range of the phase III slope of each day. D, The median (center line), 25th and 75th percentiles, and range of EtCO2 of each day. E, The difference between EtCO2 and PaCO2 during intubation. F, The median (center line), 25th and 75th percentiles, and the range of the changes of alpha angle changes during intubation. PEEP = positive end-expiratory pressure, PS= pressure support, PSV = pressure-support ventilation.
