Pre-treatment oral microbiome analysis and salivary Stephan curve kinetics in white spot lesion development in orthodontic patients wearing fixed appliances. A pilot study

Abstract

Background: White spot lesions (WSLs) are a formidable challenge during orthodontic treatment, affecting patients regardless of oral hygiene. Multifactorial in nature, amongst potential contributors to their development are the microbiome and salivary pH. The aim of our pilot study is to determine if pre-treatment differences in salivary Stephan curve kinetics and salivary microbiome features correlate with WSL development in orthodontic patients with fixed appliances. We hypothesize that non-oral hygiene determined differences in saliva could be predictive of WSL formation in this patient population through analysis of salivary Stephan curve kinetics, and that these differences would further manifest as changes in the oral microbiome.

Methods: In this prospective cohort study, twenty patients with initial simplified oral hygiene index scores of "good" that were planning to undergo orthodontic treatment with self-ligating fixed appliances for at least 12 months were enrolled. At pre-treatment stage, saliva was collected for microbiome analysis, and at 15-minute intervals after a sucrose rinse over 45 min for Stephan curve kinetics.

Results: 50% of patients developed a mean 5.7 (SEM: 1.2) WSLs. There were no differences in saliva microbiome species richness, Shannon alpha diversity or beta diversity between the groups. Capnocytophaga sputigena exclusively and Prevotella melaninogenica predominantly were found in WSL patients, while Streptococcus australis was negatively correlated with WSL development. Streptococcus mitis and Streptococcus anginosus were primarily present in healthy patients. There was no evidence to support the primary hypothesis.

Conclusions: While there were no differences in salivary pH or restitution kinetics following a sucrose challenge and no global microbial differences in WSL developers, our data showed change in salivary pH at 5 min associated with an abundance of acid-producing bacteria in saliva. The results suggest salivary pH modulation as a management strategy to inhibit the abundance of caries initiators. Our study may have uncovered the earliest predecessors to WSL/caries development.

Keywords: Microbiome; Saliva pH; White spot lesion.

Fig. 1

Pre-treatment Stephan curves for those with and without WSL at 12 months

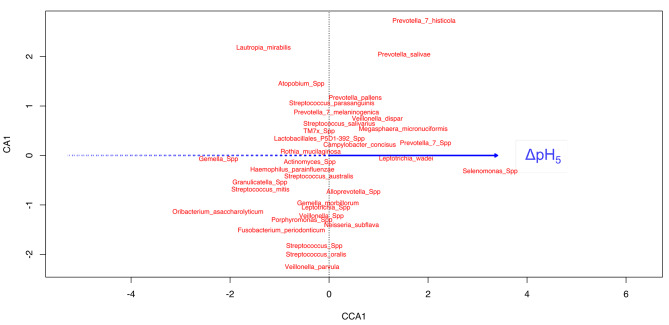

Fig. 2

Bimodal relationship between species abundances: the linear gradient of the statistically significant continuous representative term of the data, ΔpH₅ (blue line). The solid line represents a positive increase in the term, while the dashed line represents a decrease in the term. The placement of species/genera (points) is indicative of their association to the continuous term, when an imaginary-line originating from the continuous variable at a right-angle (the solid, or dashed line) intersects with that point. Intersections at the peripheries, as opposed to those closer to the middle, indicate increased strength of association

Fig. 3

Visualization of differential features ranked by effect size
