. 2023 Apr 8;23(8):3834.
doi: 10.3390/s23083834.

A Comparative Study of Structural Deformation Test Based on Edge Detection and Digital Image Correlation

Ruixiang Tang  1 , Wenbing Chen  1 , Yousong Wu  1 , Hongbin Xiong  1 , Banfu Yan  1   2
Affiliations

A Comparative Study of Structural Deformation Test Based on Edge Detection and Digital Image Correlation

Ruixiang Tang et al. Sensors (Basel). .

Abstract

Digital image-correlation (DIC) algorithms rely heavily on the accuracy of the initial values provided by whole-pixel search algorithms for structural displacement monitoring. When the measured displacement is too large or exceeds the search domain, the calculation time and memory consumption of the DIC algorithm will increase greatly, and even fail to obtain the correct result. The paper introduced two edge-detection algorithms, Canny and Zernike moments in digital image-processing (DIP) technology, to perform geometric fitting and sub-pixel positioning on the specific pattern target pasted on the measurement position, and to obtain the structural displacement according to the change of the target position before and after deformation. This paper compared the difference between edge detection and DIC in accuracy and calculation speed through numerical simulation, laboratory, and field tests. The study demonstrated that the structural displacement test based on edge detection is slightly inferior to the DIC algorithm in terms of accuracy and stability. As the search domain of the DIC algorithm becomes larger, its calculation speed decreases sharply, and is obviously slower than the Canny and Zernike moment algorithms.

Keywords: Canny; Zernike moments; deformation test; digital image correlation; digital image processing.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
The structure of this article.
Figure 2
Figure 2

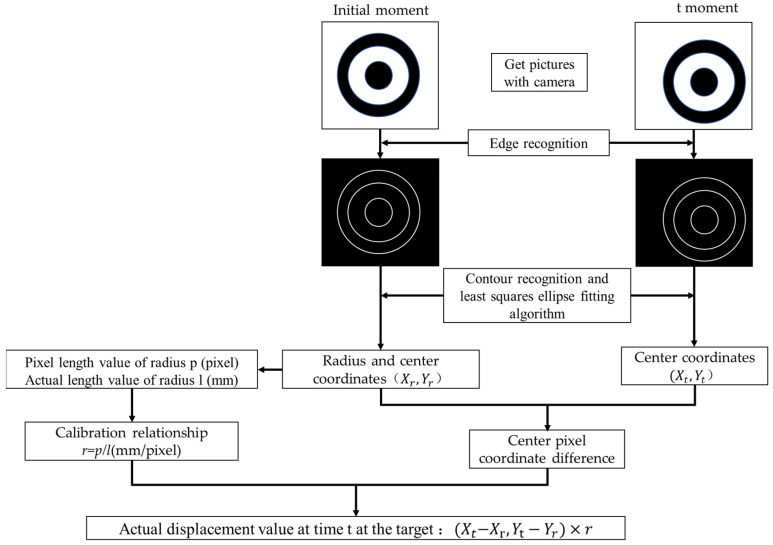

Schematic Diagram of Edge Detection Test Principle.
Figure 3
Figure 3
The step model of Zernike moment.
Figure 4
Figure 4
Schematic diagram of DIC test principle.
Figure 5
Figure 5
Target map for simulation experiment; (a) Original picture of DIC simulation experiment; (b) Translate down 1 pixel; (c) Original pictures of DIP simulation experiment; (d) Pan down 1 pixel.
Figure 6
Figure 6

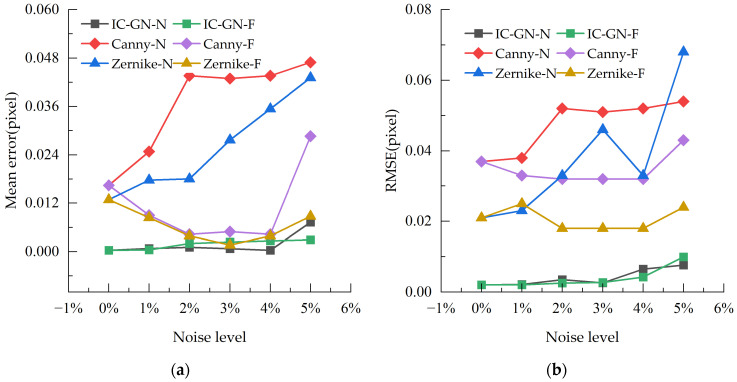

Performance evaluation of three algorithms (where N is before filtering and F is after filtering): (a) error variance; and (b) root mean square error.
Figure 7
Figure 7
Performance evaluation of simulation experiment algorithm: (a) displacement—error mean diagram; and (b) displacement-error mean square diagram.
Figure 8
Figure 8
Algorithm speed comparison: (a) DIC algorithm; (b) DIP before CUDA acceleration; and (c) DIP after CUDA acceleration.
Figure 9
Figure 9
Step displacement measuring system.
Figure 10
Figure 10

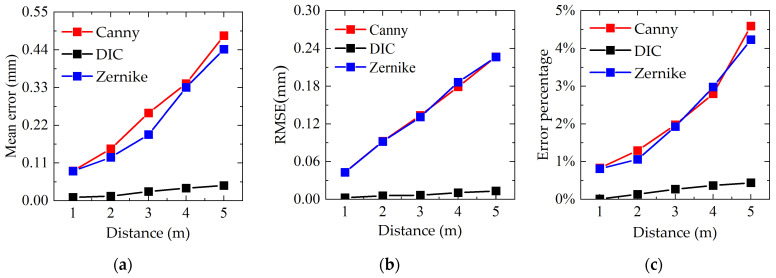

Performance evaluation of laboratory experimental algorithms: (a) mean error; (b) error variance; and (c) variation of error percentage with distance.
Figure 11
Figure 11
Site conditions of real bridge experiment: (a) site layout of the bridge test: (b) site target layout.
Figure 12
Figure 12

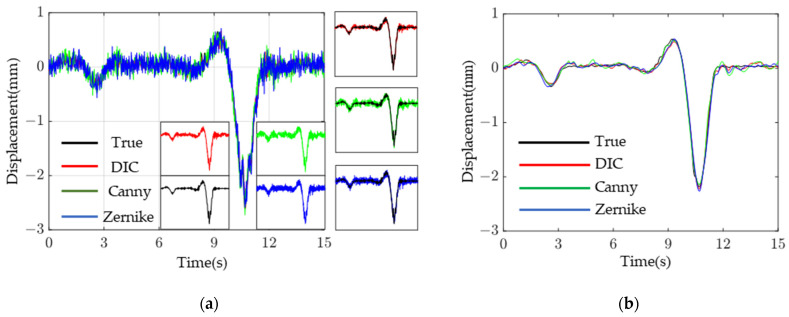

Displacement time history curve: (a) before EMD filtering; and (b) after EMD filtering.
Figure 13
Figure 13

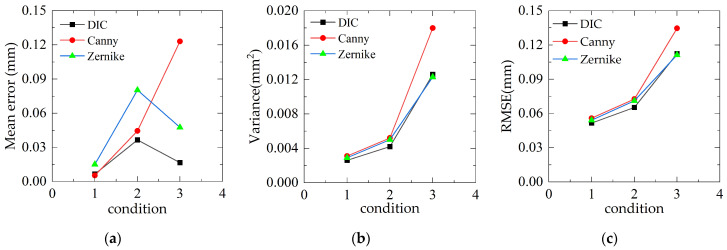

Performance evaluation of real bridge experiment algorithm: (a) mean error; (b) variance; and (c) mean square error.
