Applications of single-cell RNA sequencing in drug discovery and development

Abstract

Single-cell technologies, particularly single-cell RNA sequencing (scRNA-seq) methods, together with associated computational tools and the growing availability of public data resources, are transforming drug discovery and development. New opportunities are emerging in target identification owing to improved disease understanding through cell subtyping, and highly multiplexed functional genomics screens incorporating scRNA-seq are enhancing target credentialling and prioritization. ScRNA-seq is also aiding the selection of relevant preclinical disease models and providing new insights into drug mechanisms of action. In clinical development, scRNA-seq can inform decision-making via improved biomarker identification for patient stratification and more precise monitoring of drug response and disease progression. Here, we illustrate how scRNA-seq methods are being applied in key steps in drug discovery and development, and discuss ongoing challenges for their implementation in the pharmaceutical industry.

Fig. 1. How single-cell sequencing can inform decisions across the drug discovery and development pipeline.

Single-cell technologies are being applied to answer key questions at various stages in the drug discovery and development pipeline. These applications are anticipated to increase the probability of success in the clinic by improving the quality of both the drug candidates emerging from discovery programmes and the clinical development plans for those drug candidates in stratified disease populations.

Fig. 2. Computational methods used in single-cell data analysis for drug discovery and development.

Representation of the computational tools and/or methods (see Supplementary Table 1 for further details and URLs for the various tools), currently used by pharmaceutical companies for data handling and to probe biological insights through cell-type annotation to reveal genotype and/or phenotype and functional assignment. B cell receptor; CNV, copy number variation; eQTL, expression quantitative trait loci; scATAC-seq, single-cell sequencing assay for transposase-accessible chromatin; scDNA-seq, single-cell DNA sequencing; scRNA-seq, single-cell RNA sequencing; SNV, single-nucleotide variant; ST, spatial transcriptomics; TCR, T cell receptor.

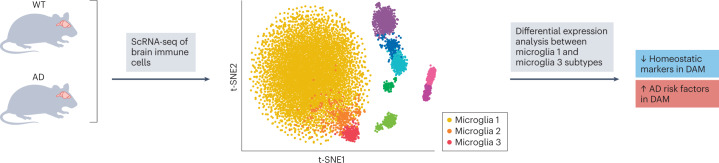

Fig. 3. Single-cell RNA sequencing in disease understanding.

Single-cell RNA sequencing (scRNA-seq) reveals a novel microglia type in an Alzheimer disease (AD) mouse model. Unbiased clustering of single immune cells (CD45⁺) sorted from wild-type (WT) and AD mouse brains classified the cells into ten subpopulations, according to the expression patterns of the 500 most variable genes. The analysis thus allowed for de novo identification of rare subpopulations and revealed three microglia types: 1 (yellow), 2 (orange) and 3 (red). As the distinct microglia states of the orange and red clusters are found only in the AD model mice, they are called ‘disease-associated microglia’ (DAM). Microglia 1 cluster corresponds to homeostatic monocyte states found in both WT and AD. Differential expression analysis between DAM (microglia 3) and homeostatic microglia (microglia 1) from the AD mouse brain shows that DAMs are characterized by a significant downregulation of homeostatic markers and upregulation of several known AD risk factors. Microglia 2 is an intermediate Trem2-independent state between microglia 1 and microglia 3. t-Distributed stochastic neighbour embedding (t-SNE) map adapted with permission from ref. , Elsevier.

Fig. 4. Single-cell high-throughput screening.

a, Standard high-throughput screening (HTS) tests a much larger number of compounds than HTS using single cells, but typically at a single dose and a single biological condition. The most active compounds obtained by standard HTS must be further studied (for example, dose–response analysis) but finally provide hits that are the starting point for drug discovery of active and safe drugs. b, HTS using single-cell approaches allows for testing of several doses and conditions at the same time and it is mainly used for drug mode of action (MoA) studies. In the uniform manifold approximation and projection (UMAP) embeddings shown, each cell is coloured either by the type of perturbation or the perturbation dose. k, thousand; M, million; t-SNE, t-distributed stochastic neighbour embedding. Elements of part b adapted from: ref. , CC BY 4.0; ref. . © The Authors, some rights reserved; exclusive licensee AAAS.

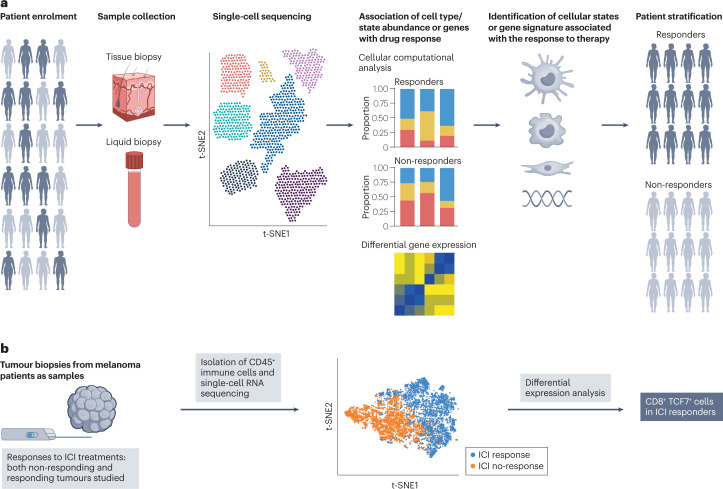

Fig. 5. Biomarker discovery and patient stratification.

a, Single-cell RNA sequencing or single-cell multi-omics technologies enable the identification of a predictive biomarker from a cohort of patients enrolled in an early-phase clinical study. Such a predictive biomarker can be used to identify patients who can benefit from a given treatment as a biomarker enrichment strategy. b, Single-cell analysis of immune cells from samples from patients with metastatic melanoma treated with immune checkpoint inhibitor (ICI) therapies uncovers a TCF7⁺ memory-like state in the cytotoxic T cell population associated with a positive outcome. t-SNE, t-distributed stochastic neighbour embedding. Elements of part b reprinted with permission from ref. , Elsevier.
