. 2023 May 8;13(1):39.
doi: 10.1186/s13550-023-00986-3.

Molecular imaging of fibroblast activation in multiple non-ischemic cardiomyopathies

Jingnan Wang  1   2 , Li Huo  1   2 , Xue Lin  3 , Ligang Fang  3 , Marcus Hacker  4 , Na Niu  5   6 , Xiang Li  7
Affiliations

Molecular imaging of fibroblast activation in multiple non-ischemic cardiomyopathies

Jingnan Wang et al. EJNMMI Res. .

Abstract

Background: This pilot study is aimed to perform a pilot visualization study to investigate in vivo fibroblast activation in non-ischemic cardiomyopathies by 68Ga-FAPI-04 PET/CT.

Methods: Twenty-nine consecutive patients with symptomatic non-ischemic cardiomyopathies who underwent 68Ga-FAPI-04 PET/CT were prospectively recruited. Clinical characteristics and echocardiographic parameters were recorded. Cardiac uptake was quantified by standardized uptake values (SUVmax, SUVmean, SUVR) and left ventricular metabolism volume. The relationship between 68Ga-FAPI-04 uptake with clinical and echocardiography parameters was investigated.

Results: Heterogeneous 68Ga-FAPI-04 uptake was observed in different subtypes of non-ischemic cardiomyopathies. Twenty-two (75.9%) patients showed elevated 68Ga-FAPI-04 uptake in the left ventricle, and 10 (34.5%) patients also showed slightly diffuse elevated uptake in the right ventricle. Cardiac uptake values were significantly correlated with enlarged ventricular volume evaluated by echocardiography.

Conclusion: FAPI PET/CT presents a potential value for in vivo visualization and quantification of fibroblast activation on the molecular level. Further study is warranted for investigating the theranostic and prognostic value of elevated FAP signal.

Keywords: 68Ga-FAPI-04; Non-ischemic cardiomyopathy; PET imaging.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests.

Figures

Fig. 1
Fig. 1
68Ga-FAPI-04 uptake (SUVmax, SUVmean, SUVR, and LVMV) in different subtypes of NICMs. RCM Restrictive cardiomyopathy; ICIM Immune checkpoint inhibitor-related myocarditis; HTC, Hyperthyroidism-induced cardiomyopathy; LVNC Left ventricular noncompaction; HCM Hypertrophic cardiomyopathy; IC Inflammatory cardiomyopathies; DCM Dilated cardiomyopathy
Fig. 2
Fig. 2
Example of 68Ga-FAPI-04 PET images in representative patients. LVNC Left ventricular noncompaction; DCM Dilated cardiomyopathy; HCM Hypertrophic cardiomyopathy; SA Short axis; HLA Horizontal long axis; VLA Vertical long axis; RV Right ventricle; LV Left ventricle; RA Right atrium; LA Left atrium
Fig. 3
Fig. 3

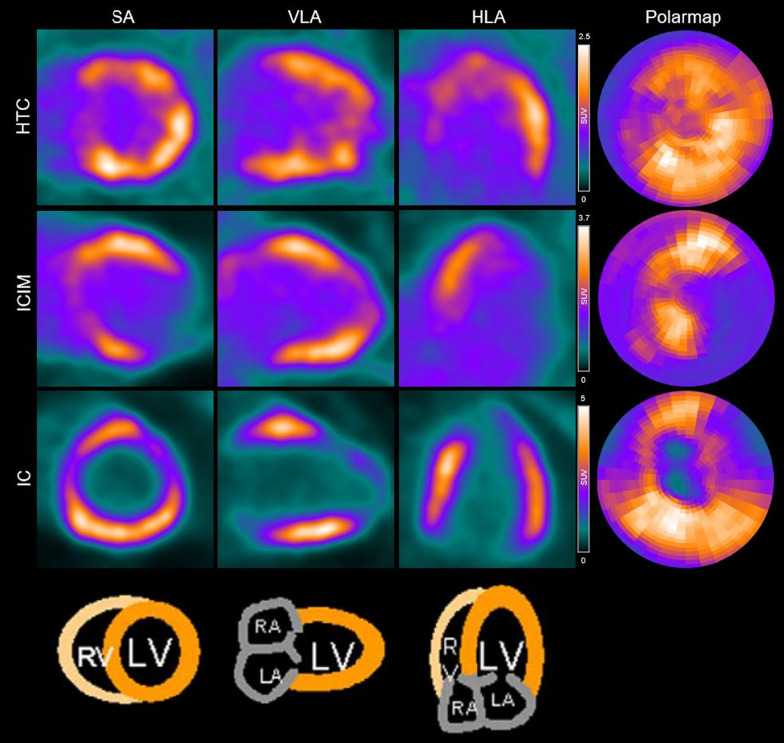

Example of 68Ga-FAPI-04 PET images in representative patients. HTC Hyperthyroidism-induced cardiomyopathy; ICIM Immune checkpoint inhibitor-related myocarditis; IC Inflammatory cardiomyopathies; SA Short axis; HLA Horizontal long axis; VLA Vertical long axis; RV Right ventricle; LV Left ventricle; RA Right atrium; LA Left atrium
See this image and copyright information in PMC

References

    1. Arbustini E, Narula N, Dec GW, Reddy KS, Greenberg B, Kushwaha S, et al. The MOGE(S) classification for a phenotype-genotype nomenclature of cardiomyopathy: endorsed by the World Heart Federation. Glob Heart. 2013;8(4):355–382. doi: 10.1016/j.gheart.2013.11.001. - DOI - PubMed
    1. Cojan-Minzat BO, Zlibut A, Agoston-Coldea L. Non-ischemic dilated cardiomyopathy and cardiac fibrosis. Heart Fail Rev. 2021;26(5):1081–1101. doi: 10.1007/s10741-020-09940-0. - DOI - PubMed
    1. Siebermair J, Kohler MI, Kupusovic J, Nekolla SG, Kessler L, Ferdinandus J, et al. Cardiac fibroblast activation detected by Ga-68 FAPI PET imaging as a potential novel biomarker of cardiac injury/remodeling. J Nucl Cardiol. 2021;28(3):812–821. doi: 10.1007/s12350-020-02307-w. - DOI - PMC - PubMed
    1. Diekmann J, Koenig T, Zwadlo C, Derlin T, Neuser J, Thackeray JT, et al. Molecular imaging identifies fibroblast activation beyond the infarct region after acute myocardial infarction. J Am Coll Cardiol. 2021;77(14):1835–1837. doi: 10.1016/j.jacc.2021.02.019. - DOI - PubMed
    1. Niu N, Huo L, Zhang S, Liu Y, Li X. Immune checkpoint inhibitor-associated cardiotoxicity detected by 68Ga-DOTATATE PET/CT and 68Ga-FAPI PET/CT. Eur Heart J Cardiovasc Imaging. 2022;23(3):e123. doi: 10.1093/ehjci/jeab189. - DOI - PubMed
