Correcting gradient-based interpretations of deep neural networks for genomics

Abstract

Post hoc attribution methods can provide insights into the learned patterns from deep neural networks (DNNs) trained on high-throughput functional genomics data. However, in practice, their resultant attribution maps can be challenging to interpret due to spurious importance scores for seemingly arbitrary nucleotides. Here, we identify a previously overlooked attribution noise source that arises from how DNNs handle one-hot encoded DNA. We demonstrate this noise is pervasive across various genomic DNNs and introduce a statistical correction that effectively reduces it, leading to more reliable attribution maps. Our approach represents a promising step towards gaining meaningful insights from DNNs in regulatory genomics.

Keywords: Attribution methods; Deep learning; Explainable AI; Model interpretability; Regulatory genomics.

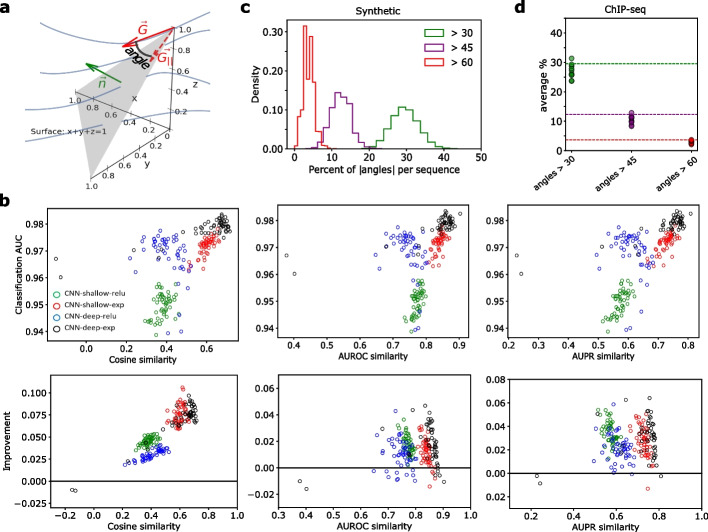

Fig. 1

Gradient correction performance. a Toy diagram of geometric relationship between the input gradient and the simplex defined for 3-dimensional categorical data. Blue curves represent gradient lines of a hypothetical learned function. Gray plane represents the data simplex. The red vector represents the gradient pointing off of the simplex. b Performance comparison on synthetic data. (Top row) Scatter plot of interpretability performance measured by different similarity scores versus the classification performance (AUC) for saliency maps. (Bottom row) Interpretability improvement for saliency maps for different similarity metrics when using gradient correction. Improvement represents the change in similarity score after the gradient correction. Each point represents 1 of 50 trials with a different random initialization for each model. c Histogram of the percentage of positions in a sequence with a gradient angle larger than various thresholds for a deep CNN with ReLU activations (CNN-deep-relu) trained on synthetic data. d Scatter plot of the percentage of positions in a sequence with a gradient angle larger than various thresholds for CNN-deep-relu trained on ChIP-seq data. Each point represents the average percentage across all test sequences for each ChIP-seq dataset. For comparison, horizontal dashed lines indicate the mean value from the corresponding analysis using synthetic data in c

Fig. 2

Visualizing the gradient correction. Sequence logo of the uncorrected saliency map (top row), gradient angles at each position (second row), and corrected saliency map (third row) for a patch from representative test sequences. a, b CNN-deep-relu trained to make binary predictions on a synthetic data and b ChIP-seq data for ATF2 protein in GM12878. The sequence logo of ground truth is shown for CNN-deep-exp for a synthetic data. b An ensemble average saliency map is shown in lieu of ground truth (bottom row). c–e A similar plot is made for a c DeepSTARR model trained to predict enhancer activity via STARR-seq data, d Basset model trained to make binary predictions of chromatin accessibility sites via DNase-seq data, and e CNN model trained to predict base-resolution read-coverage values from ATAC-seq data in PC-3 cell line. c–e A colored box and a corresponding sequence logo of a known motif from JASPAR [20] (with a corresponding ID) or Ref. [21] are shown for comparison
