Multimodality Medical Image Fusion Using Clustered Dictionary Learning in Non-Subsampled Shearlet Transform

Manoj Diwakar  1 , Prabhishek Singh  2 , Ravinder Singh  3 , Dilip Sisodia  3 , Vijendra Singh  4 , Ankur Maurya  2 , Seifedine Kadry  5   6   7 , Lukas Sevcik  8
Affiliations

Multimodality Medical Image Fusion Using Clustered Dictionary Learning in Non-Subsampled Shearlet Transform

Manoj Diwakar et al. Diagnostics (Basel). .

Abstract

Imaging data fusion is becoming a bottleneck in clinical applications and translational research in medical imaging. This study aims to incorporate a novel multimodality medical image fusion technique into the shearlet domain. The proposed method uses the non-subsampled shearlet transform (NSST) to extract both low- and high-frequency image components. A novel approach is proposed for fusing low-frequency components using a modified sum-modified Laplacian (MSML)-based clustered dictionary learning technique. In the NSST domain, directed contrast can be used to fuse high-frequency coefficients. Using the inverse NSST method, a multimodal medical image is obtained. Compared to state-of-the-art fusion techniques, the proposed method provides superior edge preservation. According to performance metrics, the proposed method is shown to be approximately 10% better than existing methods in terms of standard deviation, mutual information, etc. Additionally, the proposed method produces excellent visual results regarding edge preservation, texture preservation, and more information.

Keywords: bioelectronics; clustered dictionary learning; medical imaging; shearlet domain; sum-modified Laplacian.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Multimodality medical image fusion proposed framework.
Figure 2
Figure 2
Results of multimodality medical image fusion; (a) input multimodality medical image 1; (b) input multimodality medical image 2; (c) Zhang et al. [12]; (d) Ramlal et al. [13]; (e) Dogra et al. [14]; (f) Ullah et al. [15]; (g) Huang et al. [16]; (h) Liu et al. [17]; (i) Mehta et al. [18]; (j) proposed method.
Figure 3
Figure 3
Results of multimodality medical image fusion; (a) input multimodality medical image 1; (b) input multimodality medical image 2; (c) Zhang et al. [12]; (d) Ramlal et al. [13]; (e) Dogra et al. [14]; (f) Ullah et al. [15]; (g) Huang et al. [16]; (h) Liu et al. [17]; (i) Mehta et al. [18]; (j) proposed method.
Figure 4
Figure 4
Results of multimodality medical image fusion; (a) input multimodality medical image 1; (b) input multimodality medical image 2; (c) Zhang et al. [12]; (d) Ramlal et al. [13]; (e) Dogra et al. [14]; (f) Ullah et al. [15]; (g) Huang et al. [16]; (h) Liu et al. [17]; (i) Mehta et al. [18]; (j) proposed method.
Figure 5
Figure 5

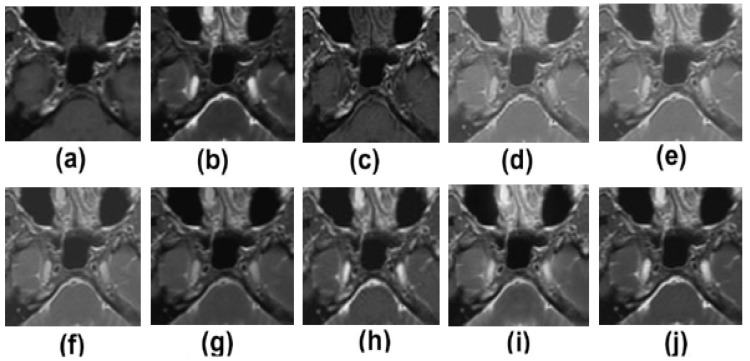

Zoomed results of multimodality medical image fusion; (a) input multimodality medical image 1; (b) input multimodality medical image 2; (c) Zhang et al. [12]; (d) Ramlal et al. [13]; (e) Dogra et al. [14]; (f) Ullah et al. [15]; (g) Huang et al. [16]; (h) Liu et al. [17]; (i) Mehta et al. [18]; (j) proposed method.
See this image and copyright information in PMC
