M100 ExaData: a data collection campaign on the CINECA's Marconi100 Tier-0 supercomputer

Abstract

Supercomputers are the most powerful computing machines available to society. They play a central role in economic, industrial, and societal development. While they are used by scientists, engineers, decision-makers, and data-analyst to computationally solve complex problems, supercomputers and their hosting datacenters are themselves complex power-hungry systems. Improving their efficiency, availability, and resiliency is vital and the subject of many research and engineering efforts. Still, a major roadblock hinders researchers: dearth of reliable data describing the behavior of production supercomputers. In this paper, we present the result of a ten-year-long project to design a monitoring framework (EXAMON) deployed at the Italian supercomputers at CINECA datacenter. We disclose the first holistic dataset of a tier-0 Top10 supercomputer. It includes the management, workload, facility, and infrastructure data of the Marconi100 supercomputer for two and half years of operation. The dataset (published via Zenodo) is the largest ever made public, with a size of 49.9TB before compression. We also provide open-source software modules to simplify access to the data and provide direct usage examples.

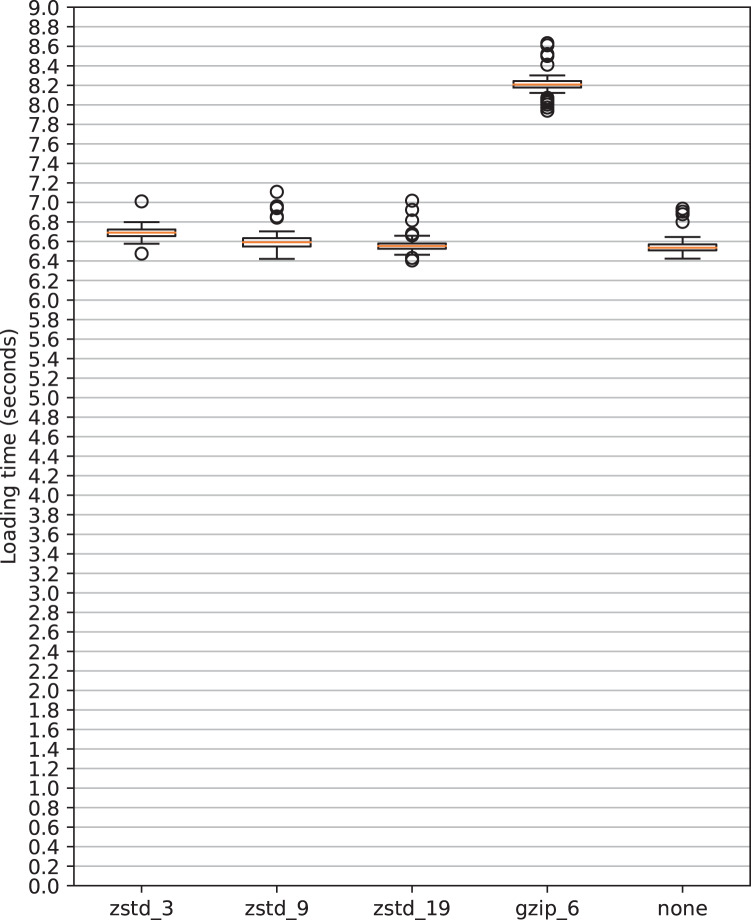

Fig. 1

Loading times comparison across compression configurations (Parquet). The data is 4 months of gpu0_core_temp (IPMI), from May to August 2022 (included), retrieving the “timestamp”, “value” and “node” columns. Memory usage by the Pandas Dataframe is 6.55 GB in all cases. The PyArrow io_threads and cpu_count were both set to 8 (Intel Xeon Gold 5220 CPU). The data was loaded using the PyArrow Dataset API.

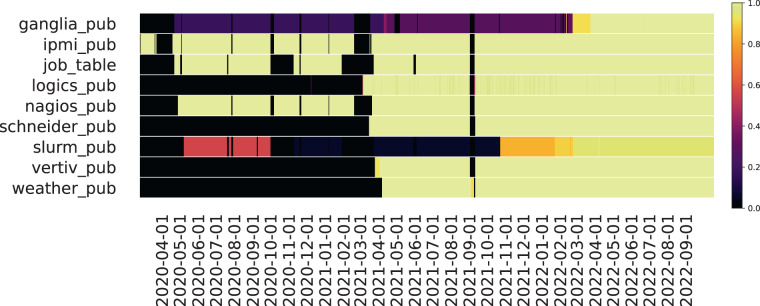

Fig. 2

Number of metrics over time (per plugin). Yellow indicates the maximum number of metrics relative to that plugin, and black is the minimum.

Fig. 3

Number of samples collected on a daily basis (per plugin). Yellow indicates the maximum number of samples relative to that plugin, and black is the minimum.
