. 2023 May 8;11(5):126.
doi: 10.3390/dj11050126.

Therapy for Temporomandibular Disorders: 3D-Printed Splints from Planning to Evaluation

Andrea Somogyi  1 , Dániel Végh  1 , Ivett Róth  1 , Tamás Hegedüs  1 , Péter Schmidt  1 , Péter Hermann  1 , Zoltán Géczi  1
Affiliations

Therapy for Temporomandibular Disorders: 3D-Printed Splints from Planning to Evaluation

Andrea Somogyi et al. Dent J (Basel). .

Abstract

Introduction: This article describes the authors' digital workflow-based method for fabricating intraoral occlusal splints, from planning to the evaluation phase.

Materials and methods: In our protocol, first, we had a registration phase. This included taking digital impressions, determining the centric relation (CR) position with the deprogrammer Luci Jig, and using the digital facebow for measuring the individual values. The laboratory phase was next, which included planning and manufacturing with a 3D printer. The last phase was delivery, when we checked the stability of the splint and adjusted the occlusal part.

Result: The average cost is lower for a fully digital splint than for conventional methods. In terms of time, there was also a significant difference between the classic and digital routes. From a dental technical point of view, the execution was much more predictable. The printed material was very rigid and, therefore, fragile. Compared to the analog method, the retention was much weaker.

Conclusion: The presented method permits time-efficient laboratory production, and may also be performed chairside in a dental office. The technology is perfectly applicable to everyday life. In addition to its many beneficial properties, its negative properties must also be highlighted.

Keywords: 3D printing; TMD; TMJ; additive manufacturing; occlusal device; oral splint; temporomandibular disorders; temporomandibular joint.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interests. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Figures

Figure 1
Figure 1

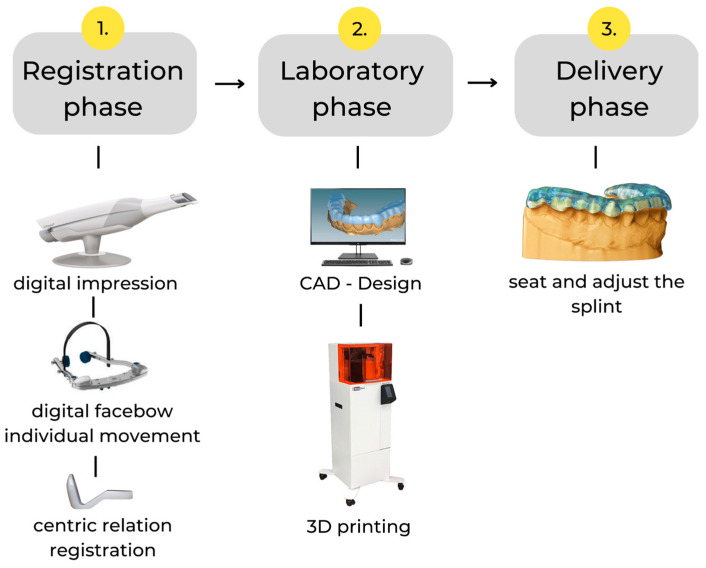

The fully digital process of manufacturing a 3D-printed splint.
Figure 2
Figure 2

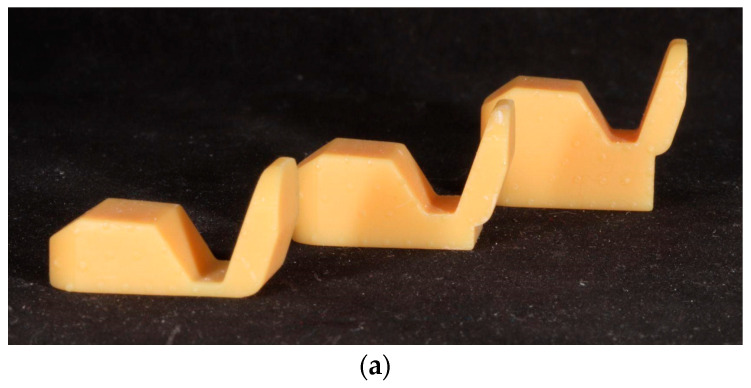

(a) Self-designed Lucia Jigs with different vertical height; (b) centric relation registration with Lucia Jig.
Figure 2
Figure 2
(a) Self-designed Lucia Jigs with different vertical height; (b) centric relation registration with Lucia Jig.
Figure 3
Figure 3

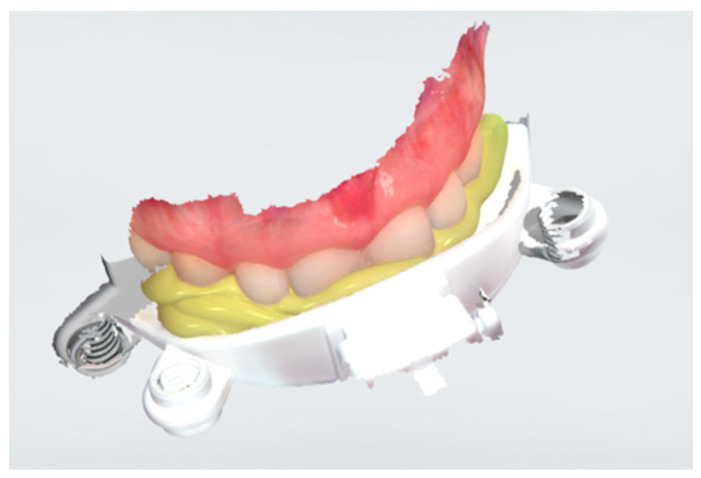

Scanned upper bite fork of the digital facebow.
Figure 4
Figure 4
Design of the splint in the CAD software.
Figure 5
Figure 5
Printed splints in 0°, 30° and 90° orientations (Nextdent 5100).
