Multi-centre radiomics for prediction of recurrence following radical radiotherapy for head and neck cancers: Consequences of feature selection, machine learning classifiers and batch-effect harmonization

Abstract

Background and purpose: Radiomics models trained with limited single institution data are often not reproducible and generalisable. We developed radiomics models that predict loco-regional recurrence within two years of radiotherapy with private and public datasets and their combinations, to simulate small and multi-institutional studies and study the responsiveness of the models to feature selection, machine learning algorithms, centre-effect harmonization and increased dataset sizes.

Materials and methods: 562 patients histologically confirmed and treated for locally advanced head-and-neck cancer (LA-HNC) from two public and two private datasets; one private dataset exclusively reserved for validation. Clinical contours of primary tumours were not recontoured and were used for Pyradiomics based feature extraction. ComBat harmonization was applied, and LASSO-Logistic Regression (LR) and Support Vector Machine (SVM) models were built. 95% confidence interval (CI) of 1000 bootstrapped area-under-the-Receiver-operating-curves (AUC) provided predictive performance. Responsiveness of the models' performance to the choice of feature selection methods, ComBat harmonization, machine learning classifier, single and pooled data was evaluated.

Results: LASSO and SelectKBest selected 14 and 16 features, respectively; three were overlapping. Without ComBat, the LR and SVM models for three institutional data showed AUCs (CI) of 0.513 (0.481-0.559) and 0.632 (0.586-0.665), respectively. Performances following ComBat revealed AUCs of 0.559 (0.536-0.590) and 0.662 (0.606-0.690), respectively. Compared to single cohort AUCs (0.562-0.629), SVM models from pooled data performed significantly better at AUC = 0.680.

Conclusions: Multi-institutional retrospective data accentuates the existing variabilities that affect radiomics. Carefully designed prospective, multi-institutional studies and data sharing are necessary for clinically relevant head-and-neck cancer prognostication models.

Keywords: Head-and-neck cancer; Loco-regional recurrence; Machine learning; Multi-institutional; Prognosis; Radiomics.

Fig. 1

Features selected by LASSO for the single and multi-institutional pooled datasets.

Fig. 2

Features selected by SelectKBest for the single and multi-institutional pooled datasets.

Fig. 3

The Kernel Density Estimate (KDE) (A and C) and Box (B and D) plots for one representative feature (GLCM Maximum Probability) before (A and B) and after (C and D) ComBat harmonization.

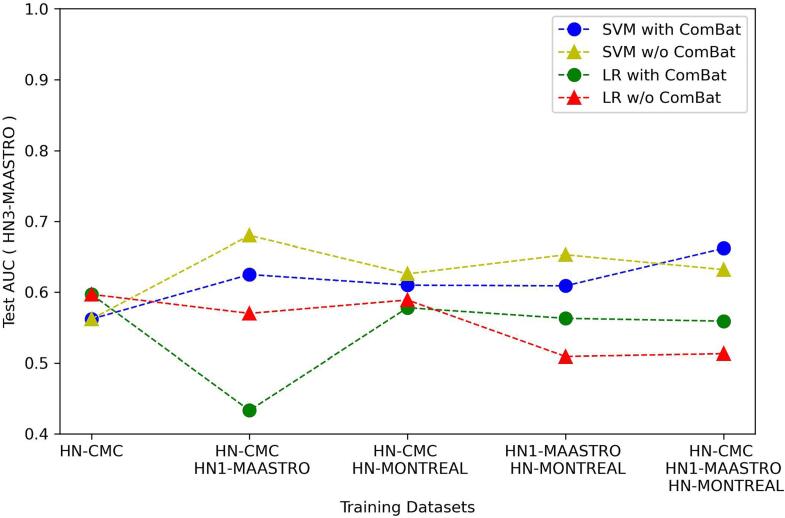

Fig. 4

Performance of the LR and SVM models trained on pooled datasets prior to and post ComBat harmonization. Model performance is reported on validation data HN3-MAASTRO.

Fig. 5

Performance of the models trained with data from single institution versus multi-institutional pooled data. Validation ROC of Logistic Regression (A) and SVM LRR models (B) for an example single dataset (HN-CMC) and its pooled dataset combinations. The ROCs correspond to the HN-CMC (red), HN-CMC + HN1-MAASTRO (blue), HN-CMC + HN-MONTREAL (green) and HN-CMC + HN1-MAASTRO + HN-MONTREAL datasets (orange), respectively. C) Test AUC across all single and pooled datasets in this experiment. Validation data was HN3-MAASTRO. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)
