Pillar-layer Zn-triazolate-dicarboxylate frameworks with a customized pore structure for efficient ethylene purification from ethylene/ethane/acetylene ternary mixtures

Affiliations

Pillar-layer Zn-triazolate-dicarboxylate frameworks with a customized pore structure for efficient ethylene purification from ethylene/ethane/acetylene ternary mixtures

Jiaqi Liu et al. Chem Sci. .

Abstract

The selective adsorption of C2H6 and C2H2 over C2H4 from C2H2/C2H4/C2H6 ternary mixtures for one-step C2H4 purification represents a crucial yet challenging task in industry. The pore structure of the adsorbents must be finely tailored to meet the demanding requirements for the separation considering the very similar physicochemical properties of the three gases. Herein, we report a Zn-triazolate-dicarboxylate framework, HIAM-210, featuring a novel topology which possesses one-dimensional channels decorated with adjacent uncoordinated carboxylate-O atoms. The suitable pore size and customized pore environment enable the compound to selectively capture C2H6 and C2H2 with high C2H2/C2H4 and C2H6/C2H4 selectivities of both 2.0. Breakthrough experiments show that polymer-grade C2H4 can be directly harvested from C2H2/C2H4/C2H6 (34/33/33 and 1/90/9) ternary mixtures. The underlying mechanism of the preferential adsorption was uncovered by grand canonical Monte Carlo simulations and DFT calculations.

PubMed Disclaimer

Conflict of interest statement

There are no conflicts to declare.

Figures

Fig. 1
Fig. 1. Structure of HIAM-210. (a) The building blocks; (b) the 2D Zn–TZ–NDC layer structure; (c) the pillaring mode by NDC; (d) the structure viewed along the 1D channels; (e) a close-up view of the array of the four different cages in the channel; (f) the distribution of uncoordinated carboxylate–O atoms in the four cages.
Fig. 2
Fig. 2. Gas adsorption on HIAM-210. (a) N2 adsorption–desorption isotherms at 77 K and pore size distribution (inset); (b) C2H2/C2H4/C2H6 adsorption–desorption isotherms at 298 K; (c) IAST selectivity of equimolar C2H2/C2H4 and C2H6/C2H4 mixtures at 298 K; (d) comparison of the separation performance of representative MOFs (C2H2/C2H4: 50/50, v/v; and C2H6/C2H4: 50/50, v/v).
Fig. 3
Fig. 3. The preferential adsorption sites for (a) C2H2, (b) C2H6, (c) C2H4 in Cage C and (d) preferential adsorption site for C2H2 in Cage B, and the C–H⋯π and C–H⋯O interactions are represented by blue and red dashed lines respectively.
Fig. 4

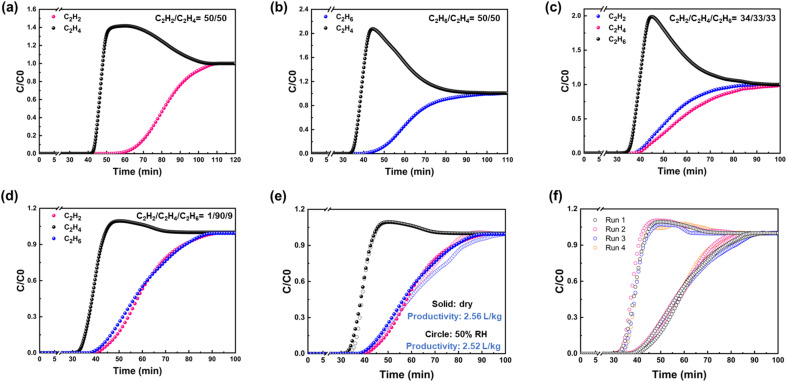

Fig. 4. Dynamic breakthrough tests on HIAM-210. The breakthrough curves for binary mixtures with the composition of (a) C2H2/C2H4 (50/50, v/v) and (b) C2H6/C2H4 (50/50, v/v), the breakthrough curves for ternary mixtures with the composition of (c) C2H2/C2H4/C2H6 (34/33/33, v/v/v) and (d) C2H2/C2H4/C2H6 (1/90/9, v/v/v), all collected at 298 K; (c) comparison of the breakthrough curves under humid and dry environments; (d) four consecutive breakthrough cycles at 298 K.
