Influence of El Niño on the variability of global shoreline position

Abstract

Coastal zones are fragile and complex dynamical systems that are increasingly under threat from the combined effects of anthropogenic pressure and climate change. Using global satellite derived shoreline positions from 1993 to 2019 and a variety of reanalysis products, here we show that shorelines are under the influence of three main drivers: sea-level, ocean waves and river discharge. While sea level directly affects coastal mobility, waves affect both erosion/accretion and total water levels, and rivers affect coastal sediment budgets and salinity-induced water levels. By deriving a conceptual global model that accounts for the influence of dominant modes of climate variability on these drivers, we show that interannual shoreline changes are largely driven by different ENSO regimes and their complex inter-basin teleconnections. Our results provide a new framework for understanding and predicting climate-induced coastal hazards.

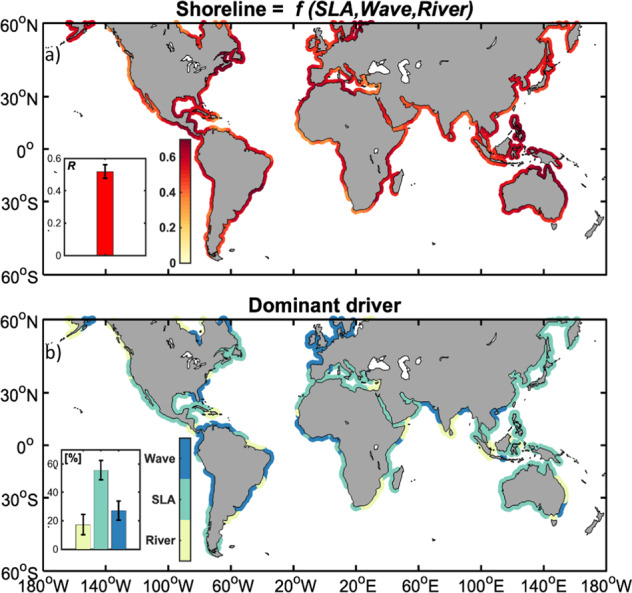

Fig. 1. Shoreline change as a linear function of hydrodynamic drivers.

a Global distribution of correlations between interannual anomalies of observed (from Landsat satellite) shoreline position and the multi-linear regression model for shoreline change anomaly (S) as a function of SLA, wave energy flux and river discharge anomalies over the period 1993-2019; only portions of shoreline where correlations are above the 95% confidence threshold are shown. The inset in the bottom left corner shows the globally averaged correlation coefficient. b Global distribution of the dominant drivers of modeled Shoreline; a dominant contribution is taken as when > 40% of variance of Shoreline is explained by the variance of one individual driver. The inset in the bottom left corner shows the globally averaged contribution of each driver. For more robustness, whiskers in each inset delineate the range of one standard deviation among all randomized hindcasts of varying lengths from 10 to 27 years.

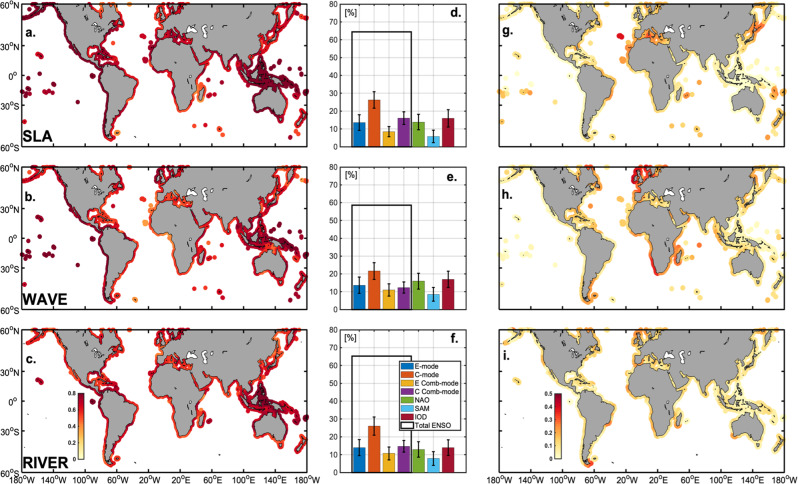

Fig. 2. Climate influence on drivers of shoreline change.

Global distribution of correlation coefficients between observed and climate modes-based simulated (Eq. 3) interannual anomalies of sea level (a.), wave energy (b.) and river discharges (c.). Respective percentage of global contributions of the different linear (E_mode and C_mode), non-linear (i.e. combination modes, E Comb-mode and C Comb-mode) ENSO terms, NAO, IOD and SAM to the total model solution for sea level (d.), wave energy (e.) and river discharges (f.). Gain in correlation between observed and simulated interannual anomalies of sea level (g.), wave energy flux (h.) and river flows (i.) respectively associated with the inclusion of NAO, IOD, and SAM into the set of Eqs. (2). Whiskers in each inset delineate the range of one standard deviation among all randomized hindcasts of varying lengths from 10 to 27 years. In panels (a), (b) and (c) only portions of shoreline where correlations are above the 95% confidence threshold are shown.

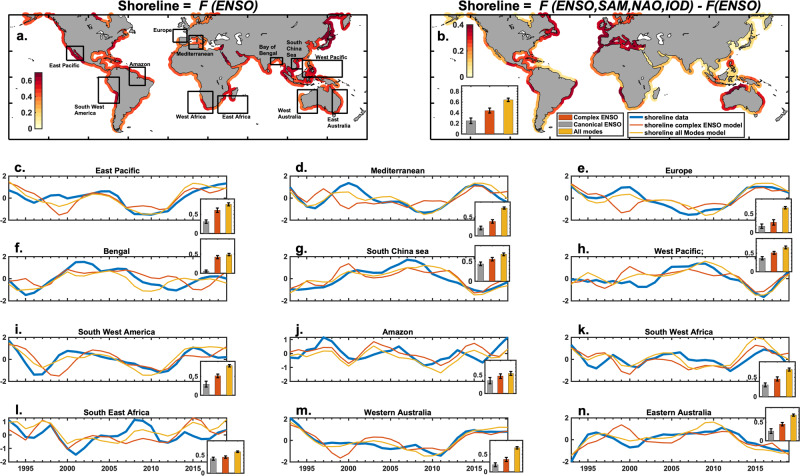

Fig. 3. ENSO-based model of interannual normalized shoreline change.

a Global distribution of correlation coefficients between observed (from Landsat satellite) and ENSO-based (Eq. 4) simulated interannual anomalies of shoreline change. Only portions of shoreline where correlations are above the 95% confidence threshold are shown. b Gain in correlation between observed and simulated interannual shoreline anomalies associated with the inclusion of NAO, IOD and SAM into Eq. (4). Panels (c) to (n): Observed and simulated time series of yearly averaged interannual shoreline monthly anomalies averaged over the corresponding regions delineated by the black boxes on the left map when the model considers all climate modes or the complex ENSO only. Inserted bar plots in each time series plots indicate the shoreline change variance explained (in %) by the complex ENSO model (orange bars), by the simple linear regression model onto the canonical ENSO mode (represented by the classic Niño3 index, gray bars) and by the model considering all climate modes (yellow bars). Whiskers in each inset delineate the range of one standard.
