. 2023 May 25;15(6):1592.
doi: 10.3390/pharmaceutics15061592.

Optimized Chitosan-Based Nanoemulsion Improves Luteolin Release

Camila Diedrich  1 , Isabella C Zittlau  1 , Najeh M Khalil  1 , Adam F G Leontowich  2 , Rilton A de Freitas  3 , Ildiko Badea  4 , Rubiana M Mainardes  1
Affiliations

Optimized Chitosan-Based Nanoemulsion Improves Luteolin Release

Camila Diedrich et al. Pharmaceutics. .

Abstract

Luteolin (LUT) is a flavonoid found in several edible and medicinal plants. It is recognized for its biological activities such as antioxidant, anti-inflammatory, neuroprotective, and antitumor effects. However, the limited water solubility of LUT leads to poor absorption after oral administration. Nanoencapsulation may improve the solubility of LUT. Nanoemulsions (NE) were selected for the encapsulation of LUT due to their biodegradability, stability, and ability to control drug release. In this work, chitosan (Ch)-based NE was developed to encapsulate luteolin (NECh-LUT). A 23 factorial design was built to obtain a formulation with optimized amounts of oil, water, and surfactants. NECh-LUT showed a mean diameter of 67.5 nm, polydispersity index 0.174, zeta potential of +12.8 mV, and encapsulation efficiency of 85.49%. Transmission electron microscopy revealed spherical shape and rheological analysis verified the Newtonian behavior of NECh-LUT. SAXS technique confirmed the bimodal characteristic of NECh-LUT, while stability analysis confirmed NECh-LUT stability when stored at room temperature for up to 30 days. Finally, in vitro release studies showed LUT controlled release up to 72 h, indicating the promising potential of NECh-LUT to be used as novel therapeutic option to treat several disorders.

Keywords: chitosan; drug release; optimization; response surface methodology; stability.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Luteolin structure.
Figure 2
Figure 2
Pareto charts (a,b) and response surface graphs (c–h) for the dependent variables mean diameter and polydispersity index.
Figure 3
Figure 3
Mean diameter distribution determined by (a) DLS and (b) TEM micrography of NECh-LUT and NECh formulations at 30.000 × zoom.
Figure 4
Figure 4

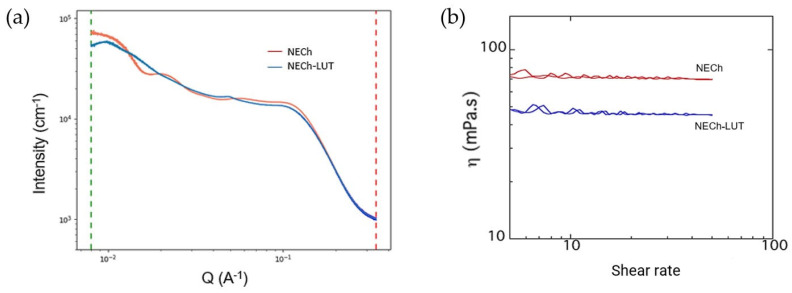

SAXS (a) and Rheology (b) for NECh-LUT and NECh formulations.
Figure 5
Figure 5
Storage stability at room and refrigeration temperature of NECh (a) and NECh-LUT (b) regarding mean diameter and Zeta potential. Thermal and kinetic stability of NECh-LUT and NECh regarding mean diameter (c) and Zeta potential (d).
Figure 6
Figure 6
In vitro release profile of LUT from Free-LUT and NECh-LUT during 72 h of assay.
See this image and copyright information in PMC

References

    1. López-lázaro M. Distribution and Biological Activities of the Flavonoid Luteolin. Mini-Rev. Med. Chem. 2009;9:31–59. doi: 10.2174/138955709787001712. - DOI - PubMed
    1. Naso L.G., Lezama L., Valcarcel M., Salado C., Villacé P., Kortazar D., Ferrer E.G., Williams P.A.M. Bovine Serum Albumin Binding, Antioxidant and Anticancer Properties of an Oxidovanadium(IV) Complex with Luteolin. J. Inorg. Biochem. 2016;157:80–93. doi: 10.1016/j.jinorgbio.2016.01.021. - DOI - PubMed
    1. Sulaiman G.M. In Vitro Study of Molecular Structure and Cytotoxicity Effect of Luteolin in the Human Colon Carcinoma Cells. Eur. Food Res. Technol. 2015;241:83–90. doi: 10.1007/s00217-015-2436-8. - DOI
    1. Shinde P., Agraval H., Singh A., Yadav U.C.S., Kumar U. Synthesis of Luteolin Loaded Zein Nanoparticles for Targeted Cancer Therapy Improving Bioavailability and Efficacy. J. Drug Deliv. Sci. Technol. 2019;52:369–378. doi: 10.1016/j.jddst.2019.04.044. - DOI
    1. Hara K., Haranishi Y., Terada T., Takahashi Y., Nakamura M., Sata T. Effects of Intrathecal and Intracerebroventricular Administration of Luteolin in a Rat Neuropathic Pain Model. Pharmacol. Biochem. Behav. 2014;125:78–84. doi: 10.1016/j.pbb.2014.08.011. - DOI - PubMed
