Review
. 2023 Jun 30;23(1):156.
doi: 10.1186/s12874-023-01964-y.

Use of electronic health data to identify patients with moderate-to-severe osteoarthritis of the hip and/or knee and inadequate response to pain medications

Yi Lu  1 , Michael L Ganz  2 , Rebecca L Robinson  3 , Anthony J Zagar  4 , Sandra Okala  1 , Craig T Hartrick  5 , Beth Johnston  4 , Patricia Dorling  6 , May Slim  7 , Sheena Thakkar  6 , Ariel Berger  2
Affiliations
Review

Use of electronic health data to identify patients with moderate-to-severe osteoarthritis of the hip and/or knee and inadequate response to pain medications

Yi Lu et al. BMC Med Res Methodol. .

Abstract

Background: No algorithms exist to identify important osteoarthritis (OA) patient subgroups (i.e., moderate-to-severe disease, inadequate response to pain treatments) in electronic healthcare data, possibly due to the complexity in defining these characteristics as well as the lack of relevant measures in these data sources. We developed and validated algorithms intended for use with claims and/or electronic medical records (EMR) to identify these patient subgroups.

Methods: We obtained claims, EMR, and chart data from two integrated delivery networks. Chart data were used to identify the presence or absence of the three relevant OA-related characteristics (OA of the hip and/or knee, moderate-to-severe disease, inadequate/intolerable response to at least two pain-related medications); the resulting classification served as the benchmark for algorithm validation. We developed two sets of case-identification algorithms: one based on a literature review and clinical input (predefined algorithms), and another using machine learning (ML) methods (logistic regression, classification and regression tree, random forest). Patient classifications based on these algorithms were compared and validated against the chart data.

Results: We sampled and analyzed 571 adult patients, of whom 519 had OA of hip and/or knee, 489 had moderate-to-severe OA, and 431 had inadequate response to at least two pain medications. Individual predefined algorithms had high positive predictive values (all PPVs ≥ 0.83) for identifying each of these OA characteristics, but low negative predictive values (all NPVs between 0.16-0.54) and sometimes low sensitivity; their sensitivity and specificity for identifying patients with all three characteristics was 0.95 and 0.26, respectively (NPV 0.65, PPV 0.78, accuracy 0.77). ML-derived algorithms performed better in identifying this patient subgroup (range: sensitivity 0.77-0.86, specificity 0.66-0.75, PPV 0.88-0.92, NPV 0.47-0.62, accuracy 0.75-0.83).

Conclusions: Predefined algorithms adequately identified OA characteristics of interest, but more sophisticated ML-based methods better differentiated between levels of disease severity and identified patients with inadequate response to analgesics. The ML methods performed well, yielding high PPV, NPV, sensitivity, specificity, and accuracy using either claims or EMR data. Use of these algorithms may expand the ability of real-world data to address questions of interest in this underserved patient population.

Keywords: Algorithms; Claims; Disease burden; Electronic medical records; Machine learning; Osteoarthritis; Pain.

PubMed Disclaimer

Conflict of interest statement

RLR, AJZ and BJ are employees and shareholders of Eli Lilly and Company. AB, MLG, YL, and SO are employees of Evidera, which received funding from Pfizer and Eli Lilly and Company to conduct the study; MLG is also a shareholder of Thermo Fisher Scientific. PD and ST are employees of Pfizer with stock and/or stock options. CTH is an employee of Algosunesis, LLC. MS was an Evidera employee at the time of study execution and is currently employed by Duchesnay.

Figures

Fig. 1
Fig. 1

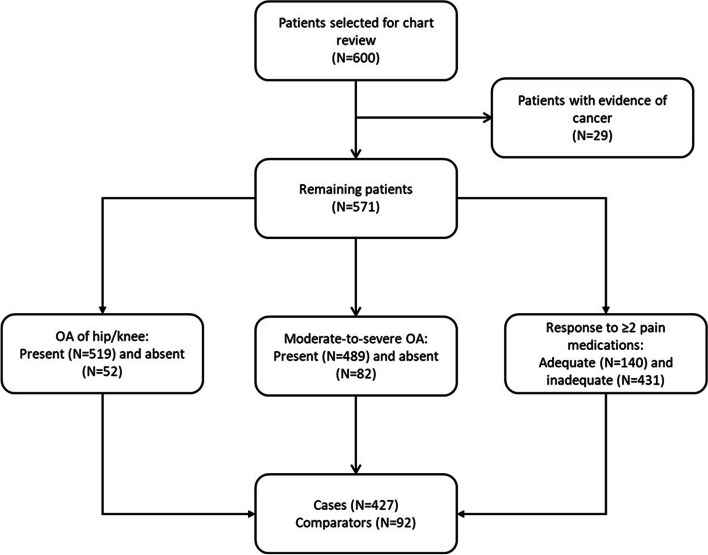

Study sample selection and attrition. Abbreviation OA = osteoarthritis
Fig. 2
Fig. 2

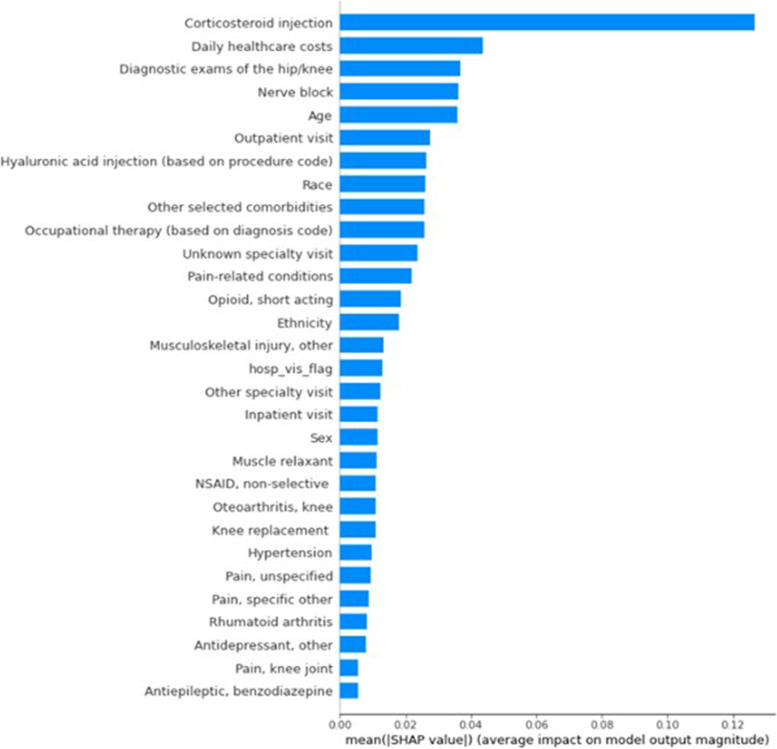

Feature of importance ranking based on mean absolute Shapley Additive exPlanations (SHAP) Values, from random forest model using claims data
See this image and copyright information in PMC

References

    1. Safiri S, Kolahi AA, Smith E, Hill C, Bettampadi D, Mansournia MA, et al. Global, regional and national burden of osteoarthritis 1990–2017: a systematic analysis of the Global Burden of Disease Study 2017. Ann Rheum Dis. 2020;79(6):819–828. doi: 10.1136/annrheumdis-2019-216515. - DOI - PubMed
    1. Zhao X, Shah D, Gandhi K, Wei W, Dwibedi N, Webster L, et al. Clinical, humanistic, and economic burden of osteoarthritis among noninstitutionalized adults in the United States. Osteoarthritis Cartilage. 2019;27(11):1618–1626. doi: 10.1016/j.joca.2019.07.002. - DOI - PubMed
    1. Schepman P, Thakkar S, Robinson R, Malhotra D, Emir B, Beck C. Moderate to Severe Osteoarthritis Pain and Its Impact on Patients in the United States: A National Survey. J Pain Res. 2021;14:2313–2326. doi: 10.2147/JPR.S310368. - DOI - PMC - PubMed
    1. White AG, Birnbaum HG, Janagap C, Buteau S, Schein J. Direct and Indirect Costs of Pain Therapy for Osteoarthritis in an Insured Population in the United States. Journal of Occupational and Environmental Medicine. 2008;50(9). - PubMed
    1. Litwic A, Edwards MH, Dennison EM, Cooper C. Epidemiology and burden of osteoarthritis. Br Med Bull. 2013;105:185–199. doi: 10.1093/bmb/lds038. - DOI - PMC - PubMed
