. 2023 Jun 16:14:1207500.
doi: 10.3389/fmicb.2023.1207500. eCollection 2023.

Comparison of circulation patterns of mumps virus in the Netherlands and Spain (2015-2020)

Ana M Gavilán  1   2 , Linda van de Nes-Reijnen  3 , Ana Castellanos  1   2 , Tom Woudenberg  3 , Noemí López-Perea  2   4 , Josefa Masa-Calles  2   4 , Juan E Echevarría  1   2 , Aurora Fernández-García  1   2 , Rogier Bodewes  3
Affiliations

Comparison of circulation patterns of mumps virus in the Netherlands and Spain (2015-2020)

Ana M Gavilán et al. Front Microbiol. .

Abstract

Background: Mumps is a viral infection mainly characterized by inflammation of the parotid glands. Despite of vaccination programs, infections among fully vaccinated populations were reported. The World Health Organization (WHO) recommends molecular surveillance of mumps based on sequencing of the small hydrophobic (SH) gene. The use of hypervariable non-coding regions (NCR) as additional molecular markers was proposed in multiple studies. Circulation of mumps virus (MuV) genotypes and variants in different European countries were described in the literature. From 2010 to 2020, mumps outbreaks caused by genotype G were described. However, this issue has not been analyzed from a wider geographical perspective. In the present study, sequence data from MuV detected in Spain and in The Netherlands during a period of 5 years (2015- March 2020) were analyzed to gain insights in the spatiotemporal spread of MuV at a larger geographical scale than in previous local studies.

Methods: A total of 1,121 SH and 262 NCR between the Matrix and Fusion protein genes (MF-NCR) sequences from both countries were included in this study. Analysis of SH revealed 106 different haplotypes (set of identical sequences).

Results: Of them, seven showing extensive circulation were considered variants. All seven were detected in both countries in coincident temporal periods. A single MF-NCR haplotype was detected in 156 sequences (59.3% of total), and was shared by five of the seven SH variants, as well as three minor MF-NCR haplotypes. All SH variants and MF-NCR haplotypes shared by both countries were detected first in Spain.

Discussion: Our results suggest a transmission way from south to north Europe. The higher incidence rate of mumps in Spain in spite of similar immunization coverage in both countries, could be associated with higher risk of MuV exportation. In conclusion, the present study provided novel insights into the circulation of MuV variants and haplotypes beyond the borders of single countries. In fact, the use of MF-NCR molecular tool allowed to reveal MuV transmission flows between The Netherlands and Spain. Similar studies including other (European) countries are needed to provide a broader view of the data presented in this study.

Keywords: MF-NCR sequence; SH sequence; Spain; laboratory surveillance; molecular epidemiology; mumps virus; the Netherlands.

PubMed Disclaimer

Conflict of interest statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Figures

Figure 1
Figure 1
Phylogenetic analysis of SH-MF-NCR concatenated sequences obtained from SH variants. (A) MuVs/NewYork.USA/45.15/ SH variant analysis. (B) MuVs/Tarragona.ESP/20.11/ SH variant analysis. Phylogenetic trees were made using the maximum likelihood method in W-IQ-TREE, using HKY85 as substitution model. MuVi/Sheffield.GBR/1.05/ (ON148331) was used as outgroup. Underlined names correspond to Dutch concatenated sequences and italics bold names indicate the MF-NCR haplotype names.
Figure 2
Figure 2

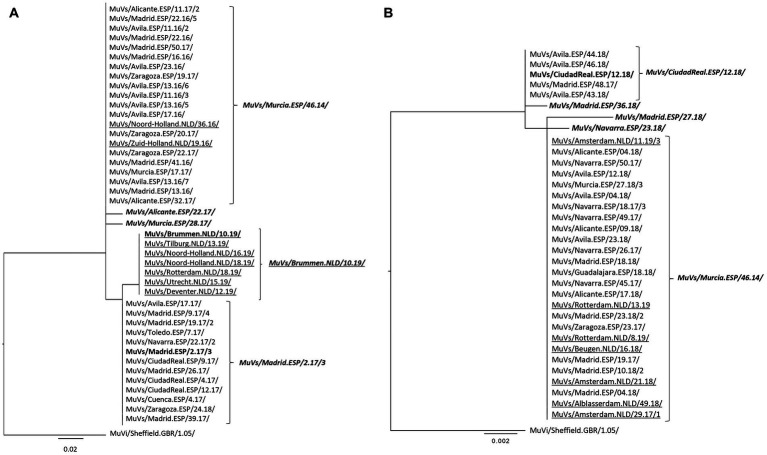

Phylogenetic analysis of SH-MF-NCR concatenated sequences obtained from SH variants. (A) MuVs/Avila.ESP/11.16/ SH variant analysis. (B) MuVs/Madrid.ESP/50.16/2 SH variant analysis. Phylogenetic trees were made using the maximum likelihood method in W-IQ-TREE, using TN93 as substitution model. MuVi/Sheffield.GBR/1.05/ (ON148331) was used as outgroup. Underlined names correspond to Dutch sequences. Italics bold names indicate the MF-NCR haplotypes.
Figure 3
Figure 3
Phylogenetic analysis of SH-MF-NCR concatenated sequences obtained from SH variants. (A) MuVs/Minnesota.USA/53.14/ SH variant analysis. (B) MuVs/NewJersey.USA/20.11/ SH variant phylogenetic tree. (C) MuVi/Sheffield.GBR/1.05/ SH variant analysis. Panel A and B: phylogenetic trees were made using the maximum likelihood method in W-IQ-TREE, using HKY85 as substitution model. MuVi/Sheffield.GBR/1.05/ original sequence (ON148331) was used as outgroup. Underlined names correspond to Dutch sequences. Italics bold names indicate the MF-NCR haplotypes. (C) Phylogenetic tree was made using BioNumerics versión 7.6.3. Years are represented by different colors; Dutch concatenated sequences are represented by light color and Spanish concatenated sequences by darker color. Circle sizes are according to number of sequences.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Bodewes R., Reijnen L., Kerkhof J., Cremer J., Schmitz D., van Binnendijk R., et al. . (2020). Molecular epidemiology of mumps viruses in the Netherlands, 2017–2019. PLoS One 15:e0233143. doi: 10.1371/journal.pone.0233143, PMID: - DOI - PMC - PubMed
    1. Braeye T., Linina I., de Roy R., Hutse V., Wauters M., Cox P., et al. . (2014). Mumps increase in Flanders, Belgium, 2012–2013: results from temporary mandatory notification and a cohort study among university students. Vaccine 32, 4393–4398. doi: 10.1016/j.vaccine.2014.06.069, PMID: - DOI - PubMed
    1. Brockhoff H. J., Mollema L., Sonder G. J. B., Postema C. A., van Binnendijk R. S., Kohl R. H. G., et al. . (2010). Mumps outbreak in a highly vaccinated student population, the Netherlands, 2004. Vaccine 28, 2932–2936. doi: 10.1016/j.vaccine.2010.02.020, PMID: - DOI - PubMed
    1. Centro Nacional de Epidemiología, CIBERESP, ISCIII (2023). Informe epidemiológico sobre la situación de la parotiditis en España, 2005-2021.
    1. Dittrich S., Hahné S., van Lier A., Kohl R., Boot H., Koopmans M., et al. . (2011). Assessment of serological evidence for mumps virus infection in vaccinated children. Vaccine 29, 9271–9275. doi: 10.1016/j.vaccine.2011.09.072, PMID: - DOI - PubMed
