Cardiac Magnetic Resonance Imaging to Determine Single Ventricle Function in a Pediatric Population is Feasible in a Large Trial Setting: Experience from the Single Ventricle Reconstruction Trial Longitudinal Follow up

Jon Detterich^#¹, Michael D Taylor^#², Timothy C Slesnick^{3

4}, Michael DiLorenzo⁵, Anthony Hlavacek⁶, Christopher Z Lam^{7

8}, Shagun Sachdeva⁹, Sean M Lang², M Jay Campbell¹⁰, Jennifer Gerardin¹¹, Kevin K Whitehead¹², Rahul H Rathod¹³, Mark Cartoski¹⁴, Shaji Menon¹⁵, Felicia Trachtenberg¹⁶, Russell Gongwer¹⁶, Jane Newburger¹³, Caren Goldberg¹⁷, Adam L Dorfman¹⁷; the Pediatric Heart Network Investigators

Affiliations

¹ Division of Cardiology, Children's Hospital Los Angeles and the University of Southern California, 4650 Sunset Blvd MS34, Los Angeles, CA, 90027, USA. jdetterich@chla.usc.edu.
² Department of Pediatrics, Heart Institute Cincinnati Children's Hospital Medical Center, Cincinnati, OH, USA.
³ Emory University School of Medicine, Atlanta, GA, USA.
⁴ Children's Healthcare of Atlanta, Sibley Heart Center Cardiology, Atlanta, GA, USA.
⁵ Department of Pediatrics, Division of Pediatric Cardiology, Columbia University Irving Medical Center, New York, NY, USA.
⁶ Division of Pediatric Cardiology, Department of Pediatrics, Medical University of South Carolina, Charleston, SC, USA.
⁷ Department of Diagnostic Imaging, Hospital for Sick Children, Toronto, ON, Canada.
⁸ Division of Pediatric Imaging, Department of Medical Imaging, University of Toronto, Toronto, ON, Canada.
⁹ The Lillie Frank Abercrombie Section of Cardiology, Texas Children's Hospital, Baylor College of Medicine, Houston, TX, USA.
¹⁰ Duke University School of Medicine, Durham, NC, USA.
¹¹ Departments of Internal Medicine and Pediatrics, Children's Hospital Wisconsin-Herma Heart Institute, Medical College of Wiscosin, Milwaukee, WI, USA.
¹² Division of Cardiology, Department of Pediatrics, Children's Hospital of Philadelphia, Philadelphia, PA, USA.
¹³ Department of Cardiology, Department of Pediatrics, Boston Children's Hospital, Harvard Medical School, Boston, MA, USA.
¹⁴ Division of Pediatric Cardiology, Nemours Cardiac Center, Nemours Children's Hospital, Wilmington, DE,, USA.
¹⁵ Division of Pediatric Cardiology, Primary Children's Hospital, University of Utah, Salt Lake City, UT, USA.
¹⁶ HealthCore Inc, Newton, MA, USA.
¹⁷ Department of Pediatrics, University of Michigan Medical School, Ann Arbor, MI, USA.

^# Contributed equally.

PMID: 37405456
PMCID: PMC10435402
DOI: 10.1007/s00246-023-03216-8

Randomized Controlled Trial

Cardiac Magnetic Resonance Imaging to Determine Single Ventricle Function in a Pediatric Population is Feasible in a Large Trial Setting: Experience from the Single Ventricle Reconstruction Trial Longitudinal Follow up

Jon Detterich et al. Pediatr Cardiol. 2023 Oct.

. 2023 Oct;44(7):1454-1461.

doi: 10.1007/s00246-023-03216-8. Epub 2023 Jul 5.

Authors

Affiliations

¹ Division of Cardiology, Children's Hospital Los Angeles and the University of Southern California, 4650 Sunset Blvd MS34, Los Angeles, CA, 90027, USA. jdetterich@chla.usc.edu.
² Department of Pediatrics, Heart Institute Cincinnati Children's Hospital Medical Center, Cincinnati, OH, USA.
³ Emory University School of Medicine, Atlanta, GA, USA.
⁴ Children's Healthcare of Atlanta, Sibley Heart Center Cardiology, Atlanta, GA, USA.
⁵ Department of Pediatrics, Division of Pediatric Cardiology, Columbia University Irving Medical Center, New York, NY, USA.
⁶ Division of Pediatric Cardiology, Department of Pediatrics, Medical University of South Carolina, Charleston, SC, USA.
⁷ Department of Diagnostic Imaging, Hospital for Sick Children, Toronto, ON, Canada.
⁸ Division of Pediatric Imaging, Department of Medical Imaging, University of Toronto, Toronto, ON, Canada.
⁹ The Lillie Frank Abercrombie Section of Cardiology, Texas Children's Hospital, Baylor College of Medicine, Houston, TX, USA.
¹⁰ Duke University School of Medicine, Durham, NC, USA.
¹¹ Departments of Internal Medicine and Pediatrics, Children's Hospital Wisconsin-Herma Heart Institute, Medical College of Wiscosin, Milwaukee, WI, USA.
¹² Division of Cardiology, Department of Pediatrics, Children's Hospital of Philadelphia, Philadelphia, PA, USA.
¹³ Department of Cardiology, Department of Pediatrics, Boston Children's Hospital, Harvard Medical School, Boston, MA, USA.
¹⁴ Division of Pediatric Cardiology, Nemours Cardiac Center, Nemours Children's Hospital, Wilmington, DE,, USA.
¹⁵ Division of Pediatric Cardiology, Primary Children's Hospital, University of Utah, Salt Lake City, UT, USA.
¹⁶ HealthCore Inc, Newton, MA, USA.
¹⁷ Department of Pediatrics, University of Michigan Medical School, Ann Arbor, MI, USA.

^# Contributed equally.

PMID: 37405456
PMCID: PMC10435402
DOI: 10.1007/s00246-023-03216-8

Abstract

The Single Ventricle Reconstruction (SVR) Trial was a randomized prospective trial designed to determine survival advantage of the modified Blalock-Taussig-Thomas shunt (BTTS) vs the right ventricle to pulmonary artery conduit (RVPAS) for patients with hypoplastic left heart syndrome. The primary aim of the long-term follow-up (SVRIII) was to determine the impact of shunt type on RV function. In this work, we describe the use of CMR in a large cohort follow up from the SVR Trial as a focused study of single ventricle function. The SVRIII protocol included short axis steady-state free precession imaging to assess single ventricle systolic function and flow quantification. There were 313 eligible SVRIII participants and 237 enrolled, ages ranging from 10 to 12.5 years. 177/237 (75%) participants underwent CMR. The most common reasons for not undergoing CMR exam were requirement for anesthesia (n = 14) or ICD/pacemaker (n = 11). A total of 168/177 (94%) CMR studies were diagnostic for RVEF. Median exam time was 54 [IQR 40-74] minutes, cine function exam time 20 [IQR 14-27] minutes, and flow quantification time 18 [IQR 12-25] minutes. There were 69/177 (39%) studies noted to have intra-thoracic artifacts, most common being susceptibility artifact from intra-thoracic metal. Not all artifacts resulted in non-diagnostic exams. These data describe the use and limitations of CMR for the assessment of cardiac function in a prospective trial setting in a grade-school-aged pediatric population with congenital heart disease. Many of the limitations are expected to decrease with the continued advancement of CMR technology.

Keywords: Cardiac Magenetic Resonance Imaging; Clinical Trial; Fontan Circulation; Outcomes Research; Pediatrics.

PubMed Disclaimer

Conflict of interest statement

MC Consultant for Longeveron, JD Scientific Advisory Board for Alcor Scientific.

Figures

**Fig. 1**

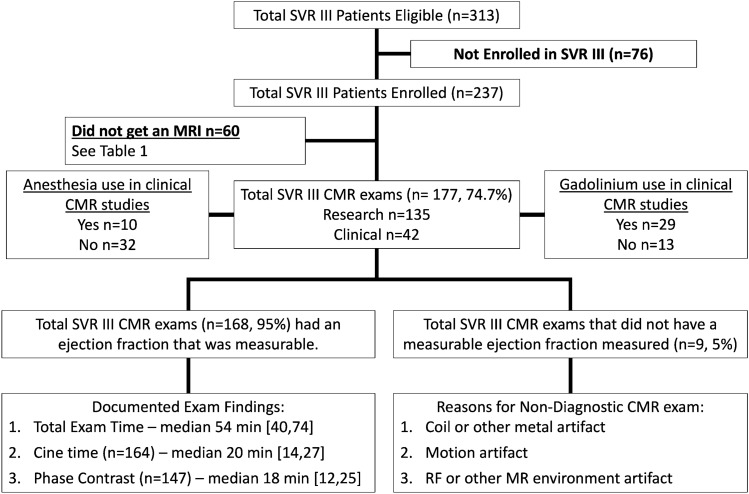

This is a flow chart demonstrating the breakdown of eligible patients enrolled in SVR III and the total number of CMR exams with adequate imaging for measurement of right ventricular ejection fraction

**Fig. 2**

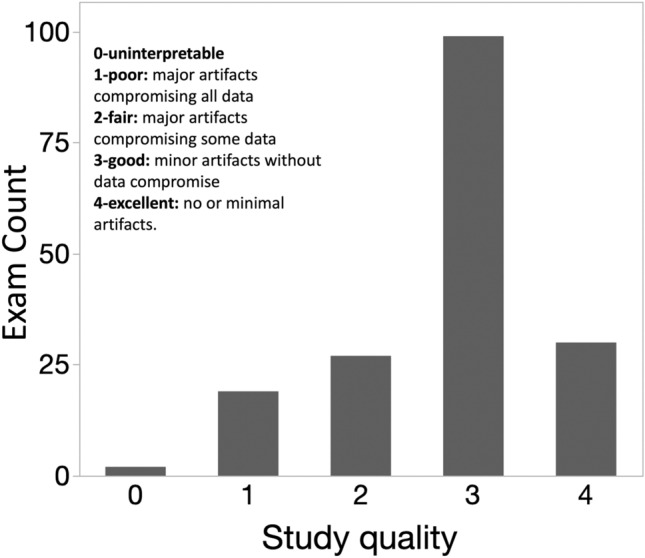

This figure demonstrates the distribution of study quality for all CMR exams performed in the SVR III study

See this image and copyright information in PMC

References

1. Ohye RG, Sleeper LA, Mahony L, Newburger JW, Pearson GD, Lu M, Goldberg CS, Tabbutt S, Frommelt PC, Ghanayem NS, Laussen PC, Rhodes JF, Lewis AB, Mital S, Ravishankar C, Williams IA, Dunbar-Masterson C, Atz AM, Colan S, Minich LL, Pizarro C, Kanter KR, Jaggers J, Jacobs JP, Krawczeski CD, Pike N, McCrindle BW, Virzi L, Gaynor JW, Pediatric Heart Network I Comparison of shunt types in the Norwood procedure for single-ventricle lesions. N Engl J Med. 2010;362:1980–1992. doi: 10.1056/NEJMoa0912461. - DOI - PMC - PubMed
1. Newburger JW, Sleeper LA, Frommelt PC, Pearson GD, Mahle WT, Chen S, Dunbar-Masterson C, Mital S, Williams IA, Ghanayem NS, Goldberg CS, Jacobs JP, Krawczeski CD, Lewis AB, Pasquali SK, Pizarro C, Gruber PJ, Atz AM, Khaikin S, Gaynor JW, Ohye RG, Pediatric Heart Network I Transplantation-free survival and interventions at 3 years in the single ventricle reconstruction trial. Circulation. 2014;129:2013–2020. doi: 10.1161/CIRCULATIONAHA.113.006191. - DOI - PMC - PubMed
1. Margossian R, Schwartz ML, Prakash A, Wruck L, Colan SD, Atz AM, Bradley TJ, Fogel MA, Hurwitz LM, Marcus E, Powell AJ, Printz BF, Puchalski MD, Rychik J, Shirali G, Williams R, Yoo SJ, Geva T, Pediatric Heart Network I Comparison of echocardiographic and cardiac magnetic resonance imaging measurements of functional single ventricular volumes, mass, and ejection fraction (from the Pediatric Heart Network Fontan Cross-Sectional Study) Am J Cardiol. 2009;104:419–428. doi: 10.1016/j.amjcard.2009.03.058. - DOI - PMC - PubMed
1. Pattynama PM, De Roos A, Van der Wall EE, Van Voorthuisen AE. Evaluation of cardiac function with magnetic resonance imaging. Am Heart J. 1994;128:595–607. doi: 10.1016/0002-8703(94)90636-X. - DOI - PubMed
1. Dong SZ, Zhu M, Bulas D. Techniques for minimizing sedation in pediatric MRI. J Magn Reson Imaging. 2019;50:1047–1054. doi: 10.1002/jmri.26703. - DOI - PubMed
