. 2023 Jun 25;15(13):2811.
doi: 10.3390/polym15132811.

Enhancing Hydrophobicity and Oxygen Barrier of Xylan/PVOH Composite Film by 1,2,3,4-Butane Tetracarboxylic Acid Crosslinking

Guoshuai Liu  1 , Kang Shi  1 , Hui Sun  1   2 , Biao Yang  1 , Yunxuan Weng  1   2
Affiliations

Enhancing Hydrophobicity and Oxygen Barrier of Xylan/PVOH Composite Film by 1,2,3,4-Butane Tetracarboxylic Acid Crosslinking

Guoshuai Liu et al. Polymers (Basel). .

Abstract

Hemicellulose has potential advantages in food packaging because of its abundant reserves, degradability and regeneration. However, compared with fossil-derived plastic films, hemicellulose-based films show inferior hydrophobicity and barrier properties because of their low degree of polymerization and strong hydrophilicity. Focusing on such issues, this work covers the modification of a xylan/polyvinyl alcohol (PVOH) film using 1,2,3,4-butane tetracarboxylic acid (BTCA) as esterifying agent. The thus prepared composite film was more compact owing to the esterification reaction with xylan and PVOH forming a crosslinked network structure and reducing the distance between molecular chains. The results showed that BTCA had a positive effect on the oxygen barrier, hydrophobicity and mechanical properties of the composite film. The tensile strength of the xylan/PVOH composite film with 10% BTCA content increased from 11.19 MPa to 13.99 MPa. A 20% BTCA loading resulted in an increase in the contact angle of the composite film from 87.1° to 108.2°, and a decrease in the oxygen permeability from 2.11 to 0.43 (cm3·µm)/(m2·d·kPa), corresponding to increase in the contact angle by 24% and a decrease in oxygen permeability by 80%. The overall performance enhancement indicates the potential application of such composites as food packaging.

Keywords: 1,2,3,4-butane tetracarboxylic acid; barrier properties; hydrophobic properties; xylan.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

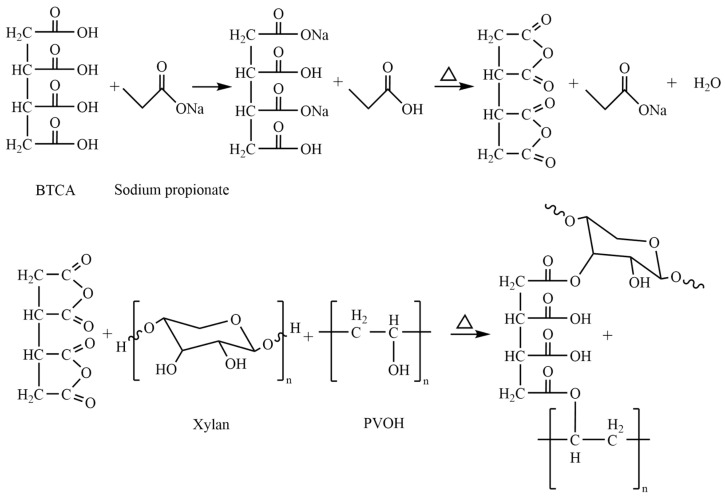

Crosslinking reaction of the matrix (PVOH-Xylan) and BTCA.
Figure 2
Figure 2

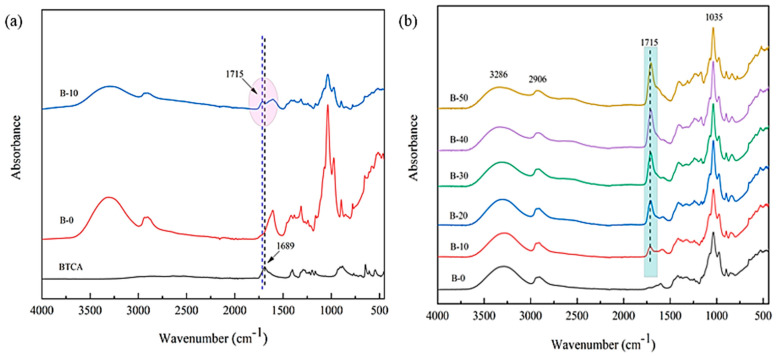

FT−IR spectra of BTCA (a) and BTCA-crosslinked xylan/PVOH composite film (b).
Figure 3
Figure 3
SEM images of BTCA-crosslinked xylan/PVOH composite films.
Figure 4
Figure 4

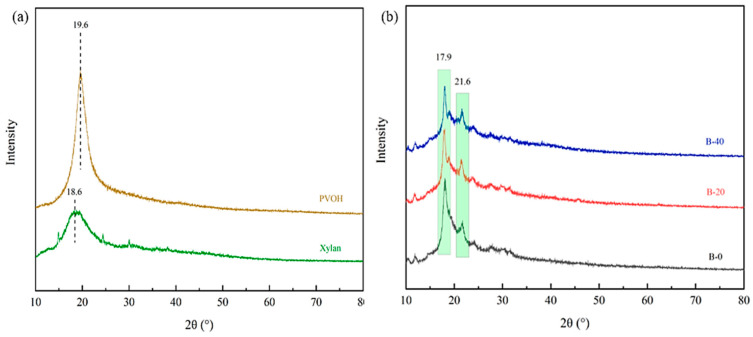

XRD patterns of PVOH and xylan (a) and BTCA-crosslinked xylan/PVOH composite films (b).
Figure 5
Figure 5
Contact angle results of BTCA-crosslinked xylan/PVOH composite films.
Figure 6
Figure 6
Typical tensile–strain curves of BTCA-crosslinked xylan/PVOH composite films.
Figure 7
Figure 7

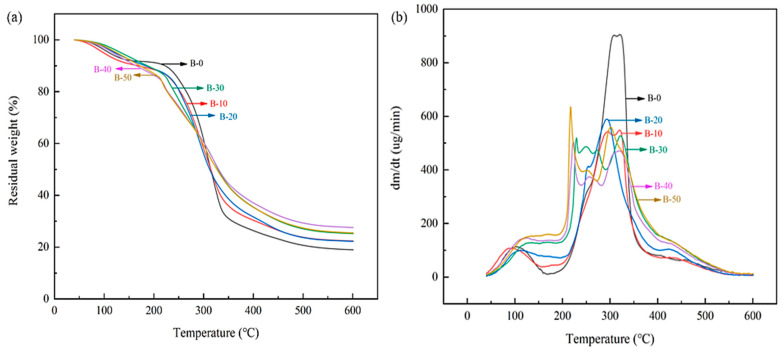

Thermogravimetric (TGA) curves (a) and derivative thermogravimetry (DTG) curves (b) of BTCA-crosslinked xylan/PVOH composite films.
See this image and copyright information in PMC

References

    1. Lebreton L., Slat B., Ferrari F., Sainte-Rose B., Aitken J., Marthouse R., Hajbane S., Cunsolo S., Schwarz A., Levivier A., et al. Evidence that the Great Pacific Garbage Patch is rapidly accumulating plastic. Sci. Rep. 2018;8:4666. doi: 10.1038/s41598-018-22939-w. - DOI - PMC - PubMed
    1. Nesic A., Cabrera-Barjas G., Dimitrijevic-Brankovic S., Davidovic S., Radovanovic N., Delattre C. Prospect of Polysaccharide-Based Materials as Advanced Food Packaging. Molecules. 2020;25:135. doi: 10.3390/molecules25010135. - DOI - PMC - PubMed
    1. Chopin N., Guillory X., Weiss P., Le Bideau J., Colliec-Jouault S. Design Polysaccharides of Marine Origin: Chemical Modifications to Reach Advanced Versatile Compounds. Curr. Org. Chem. 2014;18:867–895. doi: 10.2174/138527281807140515152334. - DOI
    1. Lisuzzo L., Wicklein B., Lo Dico G., Lazzara G., del Real G., Aranda P., Ruiz-Hitzky E. Functional biohybrid materials based on halloysite, sepiolite and cellulose nanofibers for health applications. Dalton Trans. 2020;49:3830–3840. doi: 10.1039/C9DT03804C. - DOI - PubMed
    1. Madian N.G., El-Ashmanty B.A., Abdel-Rahim H.K. Improvement of Chitosan Films Properties by Blending with Cellulose, Honey and Curcumin. Polymers. 2023;15:2587. doi: 10.3390/polym15122587. - DOI - PMC - PubMed
