. 2023 Jul 14;13(1):11377.
doi: 10.1038/s41598-023-38442-w.

State-of-the-art predictive modeling of heavy metal ions removal from the water environment using nanotubes

Zeinab Ghasemi  1 , Farzaneh Farzad  2 , Ameneh Zaboli  1 , Ali Zeraatkar Moghaddam  1
Affiliations

State-of-the-art predictive modeling of heavy metal ions removal from the water environment using nanotubes

Zeinab Ghasemi et al. Sci Rep. .

Abstract

In this research, molecular dynamics (MD) simulation is used to investigate the efficiency of carbon nanotubes (CNT) and boron nitride nanotubes (BNNT) in removing lead ions from contaminated waters. Then the effect of functionalizing nanotubes with -COO- and COOH- functional groups and the nanotubes' absorption performance of two different concentrations of lead ions are studied. To better evaluate adsorption process, the set of descriptors, such as interaction energies, radial distribution function, etc., are calculated. The MD results show that the absorption performance is significantly improved by modifying the surface of CNT and BNNT with functional groups. In addition, the adsorption capacity increases in higher concentrations of Pb ions at BNNTCOO- and CNTCOOH systems. The interaction energy of BNNTCOO- with a concentration of 50 lead ions is - 2879.28 kJ/mol, which is about 106 kJ/mol more negative than BNNTCOO- at a concentration of 20 lead ions. Also, it is observed that the functionalization of both nanotubes with -COO- increases their absorption capacity. The obtained results from this study provide significant information about the mechanisms of lead adsorption on the surface of nanotubes.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Figure 1
Figure 1
The structure of (a) CNT, (b) CNTCOO−, (c) CNTCOOH, (d) BNNT, (e) BNNTCOO−, (f) BNNTCOOH.
Figure 2
Figure 2

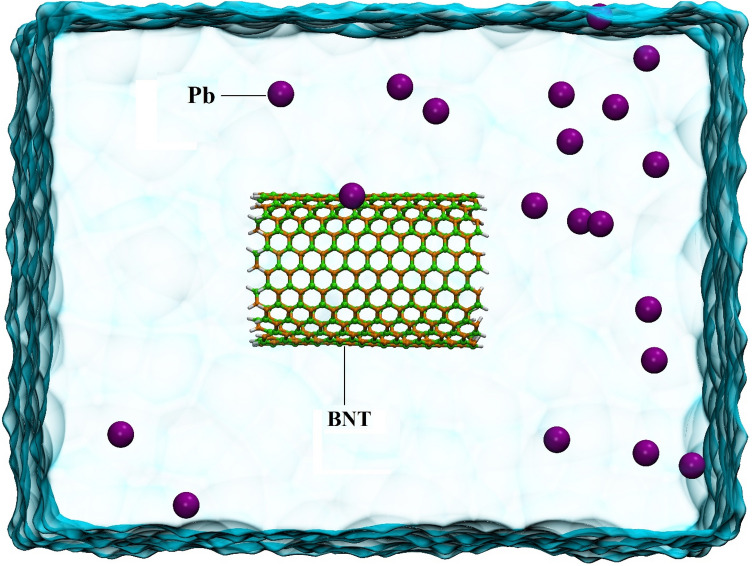

Initial snapshot of MD simulation box for BNNT containing 20 Pb ions system.
Figure 3
Figure 3

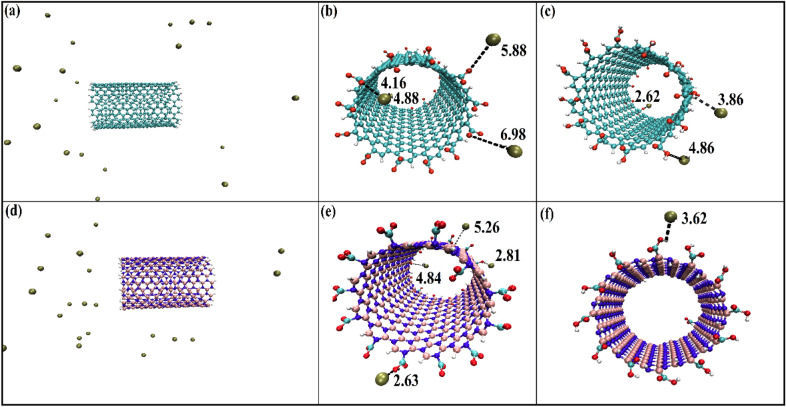

Snapshots of Pb2+ ions with nanotubes: (a) CNT, (b) CNTCOO−, (c) CNTCOOH, (d) BNNT, (e) BNNTCOO−, (f) BNNTCOOH (systems with 20 Pb ions).
Figure 4
Figure 4

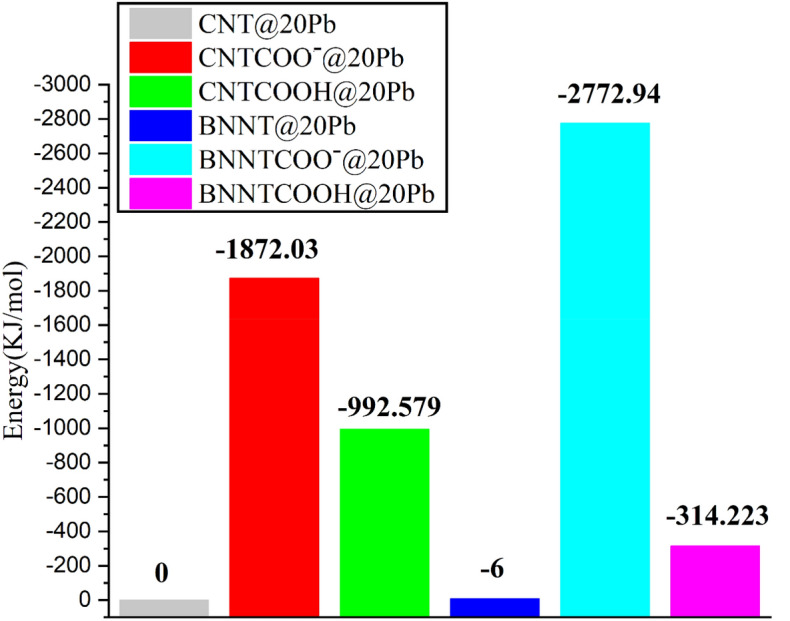

Average electrostatic energy between the nanotubes and the ions of the systems with 20 Pb ions.
Figure 5
Figure 5

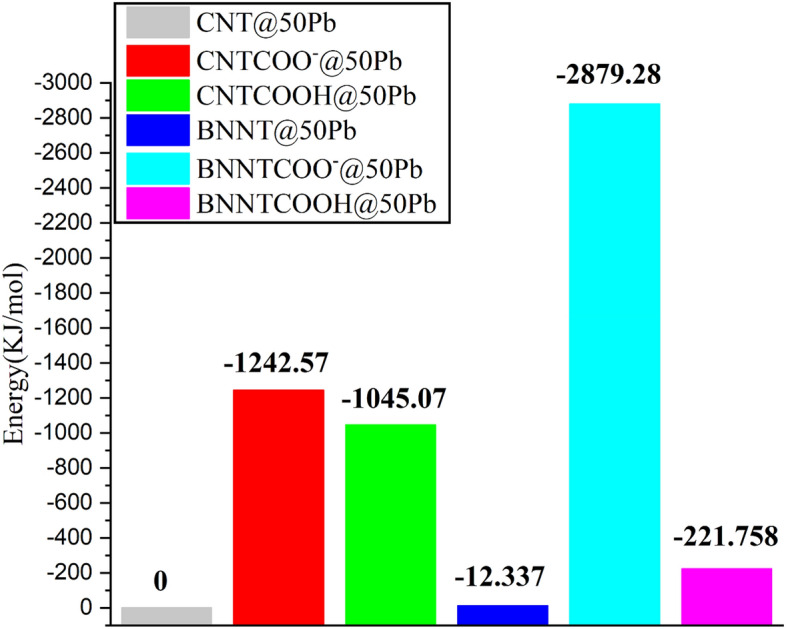

Average electrostatic energy between the nanotubes and the ions of the systems with 50 Pb ions.
Figure 6
Figure 6

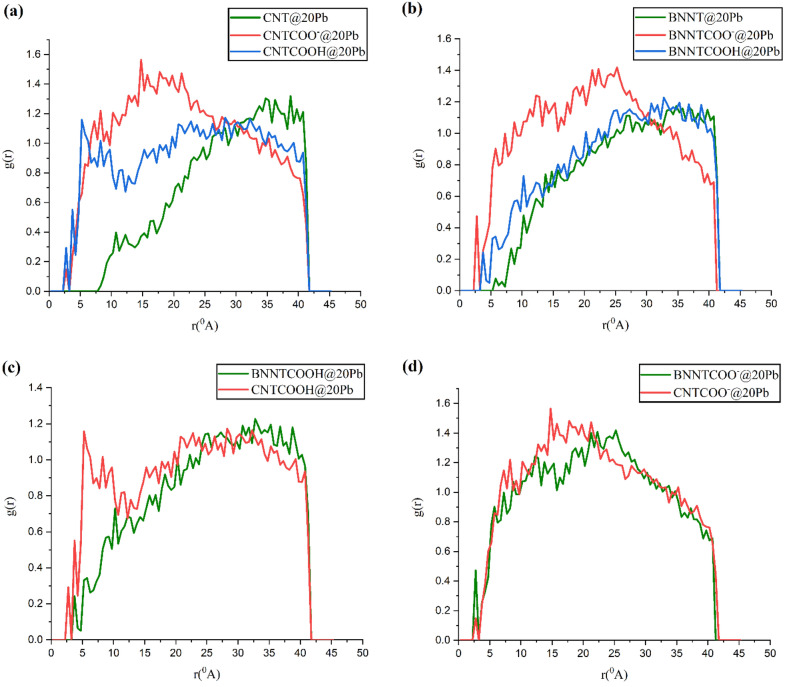

Radial distribution function (RDF) between the ions and the nanotubes of the systems with 20 Pb ions.
Figure 7
Figure 7

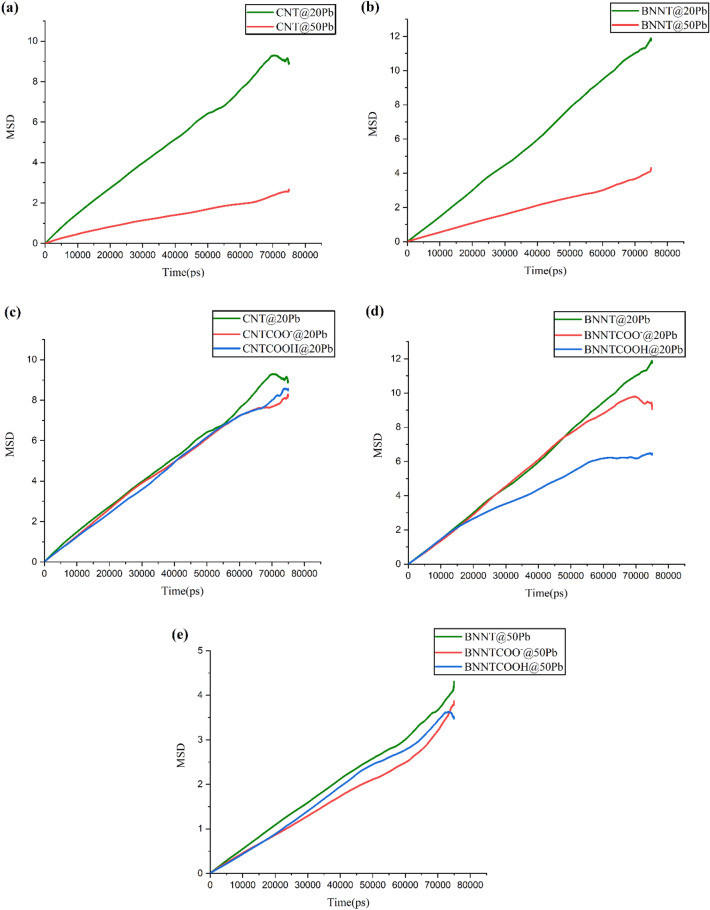

Mean square displacement (MSD) of ions in the investigated systems.
See this image and copyright information in PMC

References

    1. Amin MT, Alazba AA, Manzoor U. A review of removal of pollutants from water/wastewater using different types of nanomaterials. Adv. Mater. Sci. Eng. 2014;2014:1–24. doi: 10.1155/2014/825910. - DOI
    1. Sharma M, Kalita P, Senapati KK, Garg A. Study on magnetic materials for removal of water pollutants. In: Soloneski S, Larramendy ML, editors. Emerging Pollutants - Some Strategies for the Quality Preservation of Our Environment. InTech; 2018. pp. 61–78.
    1. Engwa GA, Ferdinand PU, Nwalo FN, Unachukwu MN, et al. Mechanism and health effects of heavy metal toxicity in humans. Poisoning Mod. World-New Tricks Old Dog. 2019;10:70–90.
    1. Ghorbani M, Seyedin O, Aghamohammadhassan M. Adsorptive removal of lead (II) ion from water and wastewater media using carbon-based nanomaterials as unique sorbents: A review. J. Environ. Manag. 2020;254:109814. doi: 10.1016/j.jenvman.2019.109814. - DOI - PubMed
    1. Li G, Ye J, Fang Q, Liu F. Amide-based covalent organic frameworks materials for efficient and recyclable removal of heavy metal lead (II) Chem. Eng. J. 2019;370:822–830. doi: 10.1016/j.cej.2019.03.260. - DOI
