Efferocytosis is restricted by axon guidance molecule EphA4 via ERK/Stat6/Mertk signaling following brain injury

Abstract

Background: Efferocytosis is a process that removes apoptotic cells and cellular debris. Clearance of these cells alleviates neuroinflammation and prevents the release of inflammatory molecules and promotes the production of anti-inflammatory cytokines to help maintain tissue homeostasis. The underlying mechanisms by which this occurs in the brain after injury remains ill-defined.

Methods: We demonstrate using GFP bone marrow chimeric knockout (KO) mice, that the axon guidance molecule EphA4 receptor tyrosine kinase is involved in suppressing Mertk signaling in the brain to restrict the function of efferocytosis on resident microglia and peripheral-derived monocyte/macrophages.

Results: Single-cell RNAseq identified Mertk expression, the primary receptor involved in efferocytosis, on monocytes, microglia, and a subset of astrocytes in the damaged cortex following brain injury. Loss of EphA4 on infiltrating GFP-expressing immune cells improved functional outcome concomitant with enhanced efferocytosis, and overall protein expression of p-Mertk, p-ERK, and p-Stat6. The percentage of GFP⁺ monocyte/macrophages and resident microglia engulfing NeuN⁺ or TUNEL⁺ cells was significantly higher in KO chimeric mice. Importantly, mRNA expression of Mertk and its cognate ligand Gas6 was significantly elevated in these mice compared to wild-type. Analysis of cell-specific expression showed that p-ERK and p-Stat6 co-localized with Mertk-expressing GFP + cells in the peri-lesional area of the cortex following brain injury. Using an in vitro efferocytosis assay, co-culturing pHrodo-labeled apoptotic Jurkat cells and bone marrow (BM)-derived macrophages, we demonstrate that efferocytosis efficiency and mRNA expression of Mertk and Gas6 was enhanced in the absence of EphA4. Select inhibitors of ERK and Stat6 attenuated this effect confirming that EphA4 suppresses monocyte/macrophage efferocytosis via inhibition of the ERK/Stat6 pathway.

Conclusions: Our findings implicate the Mertk/ERK/Stat6 axis as a novel regulator of apoptotic debris clearance in brain injury that is restricted by peripheral myeloid-derived EphA4 to prevent the resolution of inflammation.

Keywords: Apoptosis; Efferocytosis; Eph; Ephrin; Mertk; Microglia; Neuroinflammation; Peripheral-derived macrophages; Traumatic brain injury.

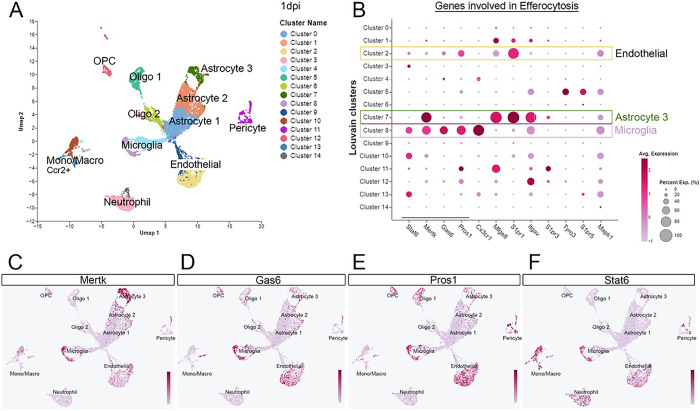

Figure 1. ScRNAseq analysis displays a differential expression of efferocytosis signals in the brain following CCI injury.

(A) Uniform Manifold Approximation and Projection (UMAP) plot showing different cell clusters and their cell-specific annotation in the injured cortex at 1dpi (B) Dot plot of efferocytosis genes expressed by each cluster type. (C-F) Feature maps highlighting the expression across clusters of Mertk (C), Gas 6 (D), Pros1 (E), and Stat6 (F).

Figure 2. Efferocytosis-related gene changes and Mertk expression in the damaged cortex following CCI injury.

A-F) Relative mRNA expression of Mertk (A), Gas6 (B), Pros1 (C), S1pr1 (D), Cx3cr1 (E), and Axl (F) in the ipsilateral cortex of CCI-injured wild type mice at 1, 3, and 7 dpi. G-O) Representative confocal images for Mertk expression in the wild-type Cx3cr1 ^{EYFP-CreER /+} mice at 3 dpi. G) 2×2 tile confocal images for the ipsilateral cortex showing Mertk (purple), Cx3cr1 (green), and IBA1 (red) expression. Mertk is upregulated and colocalized with Cx3cr1 and IBA1 in the ipsilateral cortex (H-K). Mertk expression is low in Cx3cr1+IBA1+ cells in the contralateral cortex (L-O). P-Z) Mertk expression in microglia and PDM in the ipsilateral cortex of CCI-injured GFP⁺ bone marrow chimeric wild type (WT^+WTBMCs) mice. Mertk (red) is upregulated in GFP⁻ IBA1⁺ microglia at 1dpi (P& S-V) and 3dpi (O &W-Z) and in GFP⁺IBA1⁺ PDM at 3 dpi (O& W-Z). The total number of Mertk⁺GFP⁻IBA1⁺ microglia and Mertk⁺GFP⁺IBA1⁺ PDM was counted in the ipsilateral cortex at 1- and 3- dpi using the optical fractionator probe function of Stereoinvestigator. N=5–6 mice/group. *P<0.05; **P<0.01; ***P<0.001, ****P<0.0001. Two-way ANOVA followed by Šídák’s multiple comparisons test.

Figure 3. Engulfment of apoptotic neurons by Cx3cr1-expressing microglia/macrophages in the injured cortex following CCI.

A-E) Representative confocal images for TUNEL (red, D)- and NeuN (purple, B)-stained coronal section of Cx3cr1 ^{EYFP-CreER /+} mice at 3 dpi. F-J) Region of interest (ROI) showing Cx3cr1⁺ cells (green) containing TUNEL⁺ cells (yellow arrowhead) and NeuN+ cells (white arrow) in the peri-lesion cortex.

Figure 4

Peripheral-immune EphA4 deficiency enhances efferocytosis of PDMs and microglia in the damaged cortex following CCI injury. Serial coronal sections of WT ^{+WT BMCs} and WT^{+KO BMCs} mice were stained with IBA1 (red) (A-B), NeuN (red), and IBA1 (gray) (E, F), or TUNEL and IBA1 (I, J). A-B) Representative images showing microglia (IBA1+/GFP−) engulfing GFP+ cells (A, left) and containing 2+ nuclei (A, right) or PDM (IBA1+/GFP+) containing 2+ nuclei (B). C-D) quantification of microglia and PDM containing 2+ nuclei in the core and perilesion at 3dpi. E, F) Microglia (arrowhead) and PDM (arrow) engulfing NeuN+ neurons. G, H) Quantification of microglia and PDM engulfing NeuN+ neurons. I, J) Microglia (arrowhead) and PDM (arrow) engulfing TUNEL+ nuclei. K) quantification of microglia and PDM containing at least one TUNEL+ nuclei and one TUNEL− DAPI+ nuclei in the core at 3dpi. N=4–6 mice/group. Ns = non-significant; *P<0.05; **P<0.01; ***P<0.001, ****P<0.0001. Multiple t-test.

Figure 5

Peripheral EphA4 deficiency promotes P-ERK/P-Stat6/Mertk signaling. A-C) mRNA expression of the efferocytosis receptor (Mertk, A) and its ligands (Gas6, B) and (Pros1, C) in the contralateral and ipsilateral cortex of WT^{+WT BMCs} and WT^{+KO BMCs} mice at 3dpi. N=5–6 mice/group. Ns = non-significant; *P<0.05; **P<0.01; ***P<0.001, ****P<0.0001. Two-way ANOVA followed by Šídák’s multiple comparisons test. D) Western blot analysis shows increased Mertk, ERK, and Stat6 phosphorylation in the ipsilateral cortex of chimeric WT^{+KO BMCs} mice. E-H) Representative images showing peripheral-derived GFP+ cells expressing Mertk (purple) and P-ERK (E, F) and P-Stat6 (G, H) in WT^{+WT BMCs} and WT^{+KO BMCs} mice.

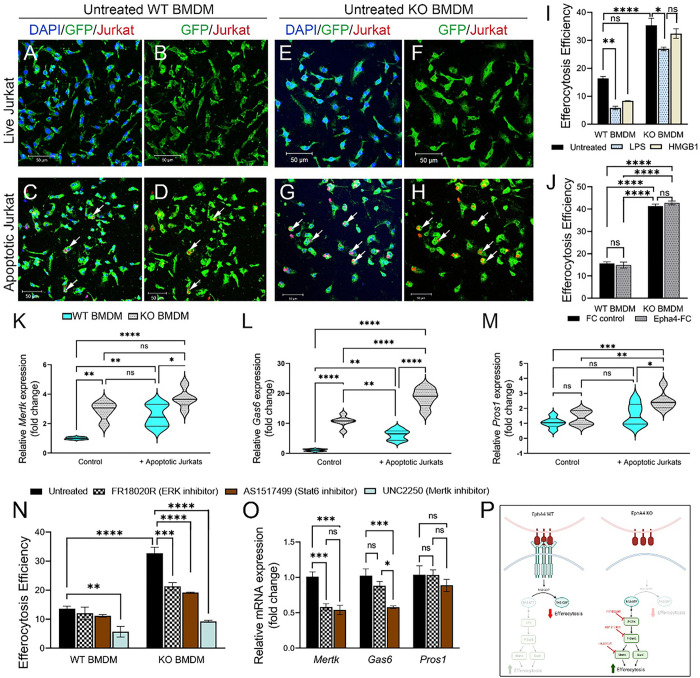

Figure 6

EphA4-null BMDMs show enhanced efferocytosis that is regulated by ERK/ Stat6/Mertk. A-I) EphA4 deletion enhances the efferocytosis efficiency of BMDMS in vitro. A-H) Representative images showing the engulfment of the pHrodo-stained apoptotic (but not live) Jurkat cells (red) by GFP+ untreated WT (A-D) and EphA4 KO (E-H) BMDMS. I) Quantification of the efferocytosis efficiency of WT and EphA4 KO BMDMS after stimulation with LPS and HMGB1 for 4 hours. J) Efferocytosis of EphA4 KO BMDMSs is mediated by the blockade of forward EphA4, not reverse ephrin signals. Treatment of WT and EphA4 KO BMDMS with clustered EphA4-FC to activate reverse ephrin signals did not reduce the efferocytosis of EphA4 KO BMDMS. K-M) mRNA expression of Mertk (K), Gas6 (L), and Pros1 (M) with and without engulfment of apoptotic Jurkat cells. EphA4 KO BMDMSs have higher expression of Mertk and Gas6 than WT. N) The use of Mertk inhibitor reduced efferocytosis of both WT and EphA4 KO BMDMS; however, Stat6 and ERK inhibitors selectively reduced efferocytosis in EphA4 KO BMDMS. O) Stat6 inhibitor reduced Mertk and Gas6 expression, and ERK inhibitor reduced Gas6 expression in KO BMDMS engulfing apoptotic Jurkat cells. P) Suggested pathway for the regulation of efferocytosis by EphA4. N=5–6 mice/group. Ns = non-significant; *P<0.05; **P<0.01; ***P<0.001, ****P<0.0001. Two-way ANOVA followed by Šídák’s multiple comparisons test (I-N) or one-way ANOVA followed by Tukey’s multiple comparisons test (O).

Figure 7

Peripheral EphA4 deficiency reduces cortical cell death and improves cerebral blood flow and BBB stability after CCI injury. A) Experimental outline. B-H) Apoptotic TUNEL+ (Purple) cell count is reduced in WT^{+KO BMCs} (B, D, E) compared to WT^{+WT BMCs} (C, F, G) mice. The total number of TUNEL+ and GFP+/TUNEL+ cells (H) was counted using image J in 3 serial sections using 5×7 tiled z-stack confocal images. I, J) Cerebral blood flow is improved in WT^{+KO BMCs} compared to WT^{+WT BMCs}. Blood flow was measured using laser speckle contrast imaging (LSCI) at 10 minutes and 3 days post-injury and presented as a percentage of the baseline. K) Blood-brain barrier permeability is improved in WT^{+KO BMCs} compared to WT^{+WT BMCs}. The volume of IgG deposition was measured at 3 dpi in serial coronal sections using Cavalieri Estimator from StereoInvestigator. N=5–6 mice/group. Ns = non-significant; *P<0.05; **P<0.01; ***P<0.001. Multiple t-test (I, H) or multiple t-test (K).
