. 2023 Oct;31(10):4430-4436.
doi: 10.1007/s00167-023-07510-z. Epub 2023 Jul 19.

A fast, easy and reliable method for hamstrings graft size prediction in anterior cruciate ligament reconstruction

C Minoli  1   2 , M Travi  3   2 , C Monti  4 , P Ferrua  5   6 , Marco Puce  7   8 , S Radaelli  1 , A Menon  5   6   9 , A L Tassi  1 , P S Randelli  5   6   10
Affiliations

A fast, easy and reliable method for hamstrings graft size prediction in anterior cruciate ligament reconstruction

C Minoli et al. Knee Surg Sports Traumatol Arthrosc. 2023 Oct.

Abstract

Purpose: The aim of this study is to describe and validate a simple and reliable method to pre-operatively predict the size of the ACL graft in the double strand technique with autologous semitendinosus-gracilis tendons on the same MRI used for ACL rupture diagnosis.

Methods: The study included 92 patients, with a median age of 31 years (IQR 26-41 years), 73/92 (79%) of whom were males. All patients that underwent an ACL reconstruction with doubled ST + GT between 2017 and 2022 were counted in the study.

Results: Overall, the median predicted graft diameter from MR imaging was similar to the actual graft diameter with no significant differences (n.s.). Regarding the comparison between predicted and actual graft size, concordance was 78/92 (85%, 95% CI 76-91%), with κ = 0.797 which corresponds to a level of agreement defined as "Strong". Tendon sizes calculated on pre-operative MRI were evaluated both with intra-observer and inter-observer reliability demonstrating a statistically reproducible method. The predicted graft was then compared to the reported one with a statistically significant reliability found.

Conclusion: This study can help the surgeons to perform a fast pre-operative planning of an ACL reconstruction for graft selection. If the planned graft with ST and GT is smaller than 8 mm, the clinician can decide to switch to a different type of graft or plan a different graft preparing technique and, therefore, reduce the risk of post-operative ligament re-rupture. The method proposed is reliable and reproducible. The major strength of the planning technique proposed is that it relies on data that are already available for the clinician before surgery, without the need of further analysis.

Level of evidence: IV.

Keywords: ACL reconstruction; Arthroscopy; Graft; Knee; Size.

PubMed Disclaimer

Conflict of interest statement

The authors declare they do not have any conflict of interesting regarding the present study.

Figures

Fig. 1
Fig. 1
Transverse T2 fat sat cut with the biggest area of the epicondyles present
Fig. 2
Fig. 2
Focus on the transverse section on semitendinosus and gracilis on transverse T2 fat sat cut
Fig. 3
Fig. 3
A Major diameter of gracilis tendon; B minor diameter of gracilis tendon; C major diameter of semitendinosus tendon; D minor diameter of semitendinosus tendon

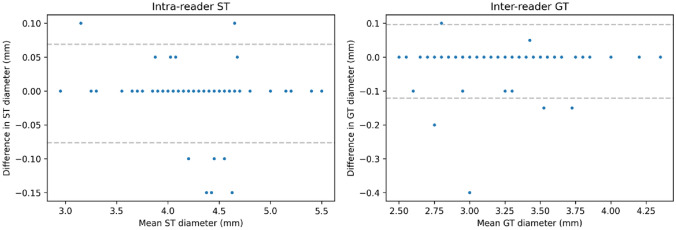

Fig. 4
Fig. 4
Bland–Altman plots for intra-reader reproducibility for the semitendinosus tendon (ST) and gracilis tendon (GT)
Fig. 5
Fig. 5
Bland–Altman plots for inter-reader reproducibility for the semitendinosus tendon (ST) and gracilis tendon (GT)

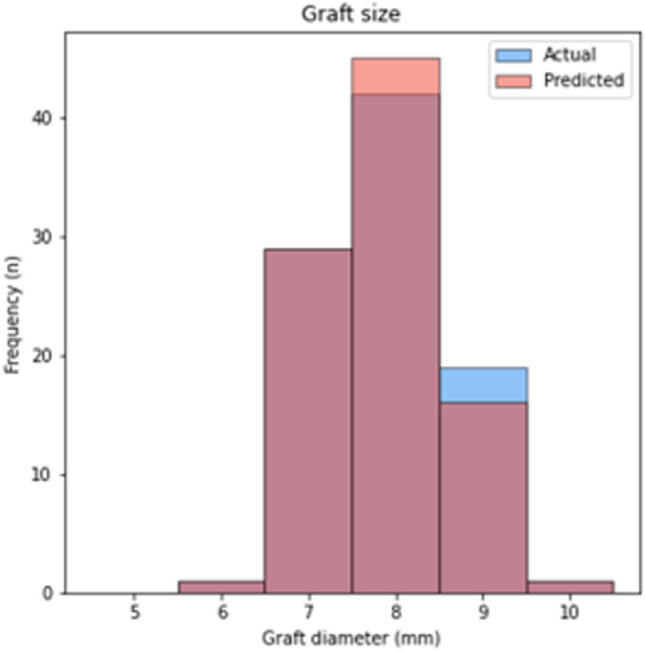

Fig. 6
Fig. 6
Frequencies of actual and predicted total graft size
