. 2023 Aug 1;41(4):483-490.
doi: 10.7518/hxkq.2023.2022027.

Simultaneous implantation and tooth preparation technology guided by 3D-printed guide

[Article in English, Chinese]
Nan Hu  1 , Chunxu Liu  1 , Jing Gao  1 , Chenyang Xie  1 , Jiayi Yu  1 , Luming Jia  1 , Haiyang Yu  1
Affiliations

Simultaneous implantation and tooth preparation technology guided by 3D-printed guide

[Article in English, Chinese]
Nan Hu et al. Hua Xi Kou Qiang Yi Xue Za Zhi. .

Abstract

Using digital technologies in concurrently performing missing tooth implantation and preparation of remaining teeth is a solution to reduce the number of visits and improve efficiency. This paper proposes a digital process for simultaneously implanting and preparing teeth. It integrates implant surgical guide and 3D-printed tooth preparation guide into a single guide and completes guided implant placement and precise tooth preparation. Based on "repair-oriented" virtual implant planning, the implant surgical guide can improve the efficiency and predictability of implant placement, and its linear accuracy is about 1 mm. The tooth preparation guide precisely guides tooth preparation and restoration space visualization, ensuring the quality of the tooth preparation. The two guides have different design accuracy requirements, and thus their combination improves the overall guiding accuracy requirements. The concurrent application of the two guides minimizes the clinical operation time, number of visits, and economic burden of patients.

Keywords: 3D-printed guide; digital design; guiding; oral implant surgery; tooth preparation.

PubMed Disclaimer

Conflict of interest statement

利益冲突声明：作者声明本文无利益冲突。

Figures

图 1
图 1. 患者术前检查
Fig 1 Patient's preoperative photos A：口内唇面照；B：口内formula image面照；C：术前面部照；D：11牙CBCT；E：21牙CBCT。
图 2

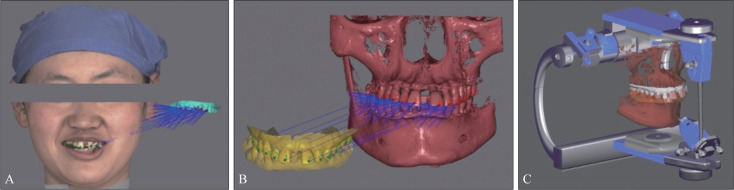

图 2. 数据导入并拟合
Fig 2 Importing and fitting the data A：口内数据与面部数据拟合；B：口内数据与CBCT数据拟合；C：数据转移至formula image架。
图 3

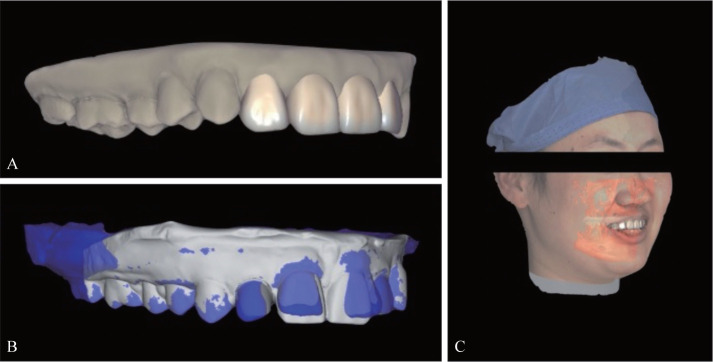

图 3. 结合面部扫描设计TRS虚拟修复
Fig 3 The design of TRS virtual restoration based on facial scanning A：TRS虚拟蜡型；B：虚拟蜡型与口内数据拟合；C：虚拟蜡型与面部扫描数据拟合。
图 4

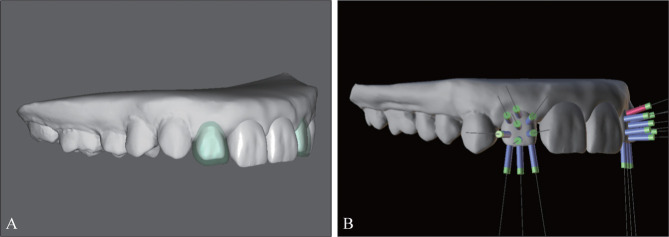

图 4. 基于目标修复体的虚拟牙体预备
Fig 4 Virtual preparation on target restoration A：数字化的牙体预备；B：虚拟牙体预备定深孔设计。
图 5
图 5. 设计种植方案并生成手术导环
Fig 5 The design of implant operation scheme and manufacture of operation guide plate A：虚拟蜡型数据与CBCT数据拟合；B：数字化种植设计；C：生成种植及牙体预备导环；D：导板生成。
图 6
图 6. 在导板全程引导下进行手术
Fig 6 Surgery based on the guidance of the guide plate A：微创拔牙；B：逐级备洞；C：植入种植体旋入愈合帽；D：橡皮障保护创面。
图 7

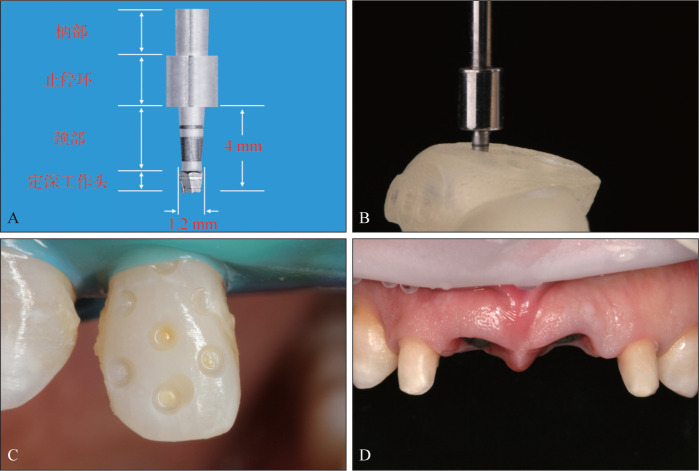

图 7. 三维打印二合一导板引导下进行牙体预备
Fig 7 Clinical procedure of tooth preparation with 3D-printed guide A：HX-1型定深车针；B：预备定深孔；C：定深孔预备后；D：牙体预备完成。
图 8
图 8. 即刻临时修复
Fig 8 Immediate temporary restoration A：即刻临时修复；B：术前与即刻临时修复后面部照。
图 9
图 9. 最终修复
Fig 9 Definitive restoration A：植体动度ISQ值；B：戴牙X线片；C：正式修复口内照；D：6个月复诊X线片；E：1年复诊口内照；F：1年复诊牙龈特写；G：2年复诊曲面断层片；H：2年复诊口内照。
图 10

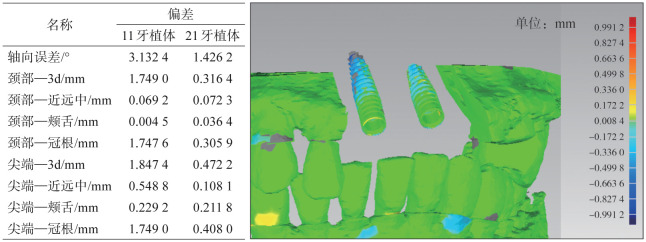

图 10. 种植体植入的精度分析
Fig 10 Analysis of the accuracy of the implant placement
图 11

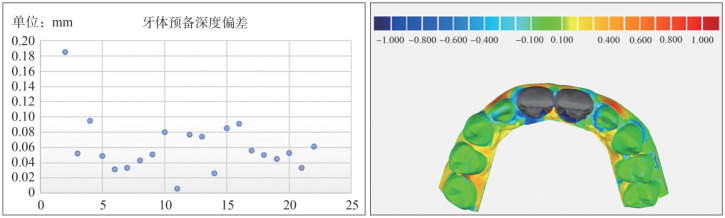

图 11. 实际预备与虚拟预备的匹配偏差分析
Fig 11 Analysis of deviation between actual preparation and virtual preparation
See this image and copyright information in PMC

References

    1. Derksen W, Wismeijer D, Flügge T, et al. The accuracy of computer-guided implant surgery with tooth-supported, digitally designed drill guides based on CBCT and intraoral scanning. A prospective cohort study[J] Clin Oral Implants Res. 2019;30(10):1005–1015. - PubMed
    1. Pessoa R, Siqueira R, Li J, et al. The impact of surgical guide fixation and implant location on accuracy of static computer-assisted implant surgery[J] J Prosthodont. 2022;31(2):155–164. - PubMed
    1. Garcia-Hammaker S, George FM. Use of a surgical template for minimally invasive second-stage surgery: a dental technique[J] J Prosthet Dent. 2019;121(1):37–40. - PubMed
    1. Gao J, Li J, Liu C, et al. A stereolithographic template for computer-assisted teeth preparation in dental esthetic ceramic veneer treatment[J] J Esthet Restor Dent. 2020;32(8):763–769. - PubMed
    1. Ackerman S, Aguilera FC, Buie JM, et al. Accuracy of 3-dimensional-printed endodontic surgical guide: a human cadaver study[J] J Endod. 2019;45(5):615–618. - PubMed
