. 2023 Jul 19;11(7):624.
doi: 10.3390/toxics11070624.

Characterization and Polydispersity of Volcanic Ash Nanoparticles in Synthetic Lung Fluid

Benedetto Schiavo  1 , Ofelia Morton-Bermea  1 , Diana Meza-Figueroa  2 , Mónica Acosta-Elías  3 , Belem González-Grijalva  2 , Maria Aurora Armienta-Hernández  1 , Claudio Inguaggiato  4 , Daisy Valera-Fernández  1
Affiliations

Characterization and Polydispersity of Volcanic Ash Nanoparticles in Synthetic Lung Fluid

Benedetto Schiavo et al. Toxics. .

Abstract

The inhalation of natural nanoparticles (NPs) emitted from volcanic activity may be a risk to human health. However, the literature rarely reports the fate and response of NPs once in contact with lung fluids. In this work, we studied the particle size distribution of ashfall from Popocatépetl volcano, Mexico. The collected ashes (n = 5) were analyzed with scanning electron microscopy (SEM) to obtain the elemental composition and morphology, and to determine the size of the ash particles using ParticleMetric software (PMS). The PMS reported most of the ash to have submicrometric size (<1 μm) and an average equivalent circle of 2.72 μm. Moreover, to our knowledge, this study investigated for the first time the behavior of ash NPs at different times (0 to 24 h) while in contact with in vitro lung fluid, Gamble Solution (GS) and Artificial Lysosomal Fluid (ALF) using dynamic light scattering (DLS). We found a large variability in the hydrodynamic diameter, with values less than 1 nm and greater than 5 μm. Furthermore, aggregation and disaggregation processes were recognized in GS and ALF, respectively. The results of this study increase the knowledge of the interaction between NPs and lung fluids, particularly within the alveolar macrophage region.

Keywords: DLS; Popocatépetl; SEM; lung fluid; nanoparticles; natural hazard; volcanic ash.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

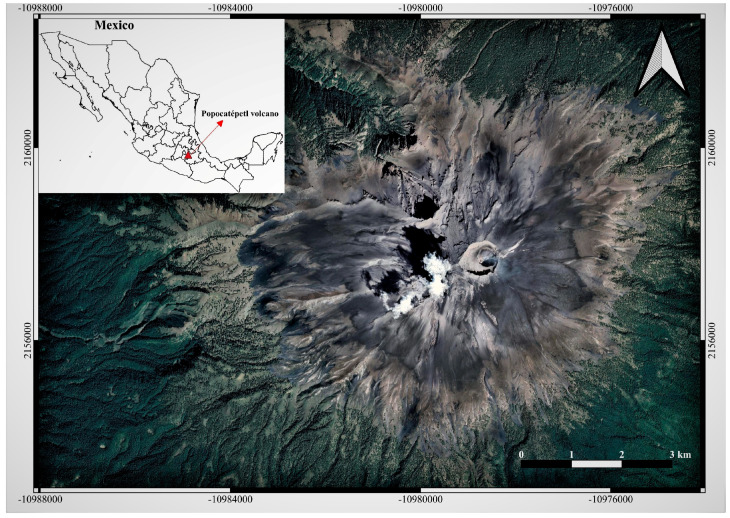

Location and satellite view of Popocatépetl volcano.
Figure 2
Figure 2
(A) General view of particles in ash sample from SEM. Image contains particles with different sphericity, shape, size, and crystallinity. (B) Typical particle types and shapes observed in the studied ashes.
Figure 3
Figure 3

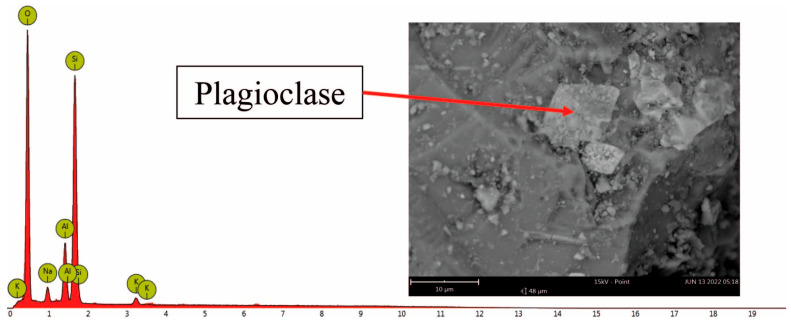

SEM image of Al- and Si-rich particles with EDS spectra.
Figure 4
Figure 4

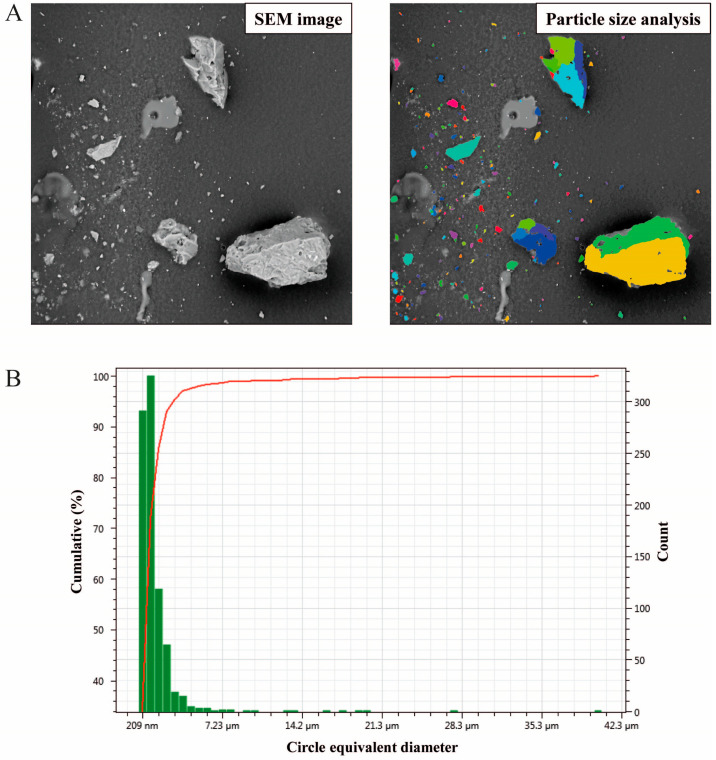

(A) Example of an SEM image (left) and particle count from ParticleMetric software (PMS) (right). (B) Barplot of PMS results in ash sample M3.
Figure 5
Figure 5

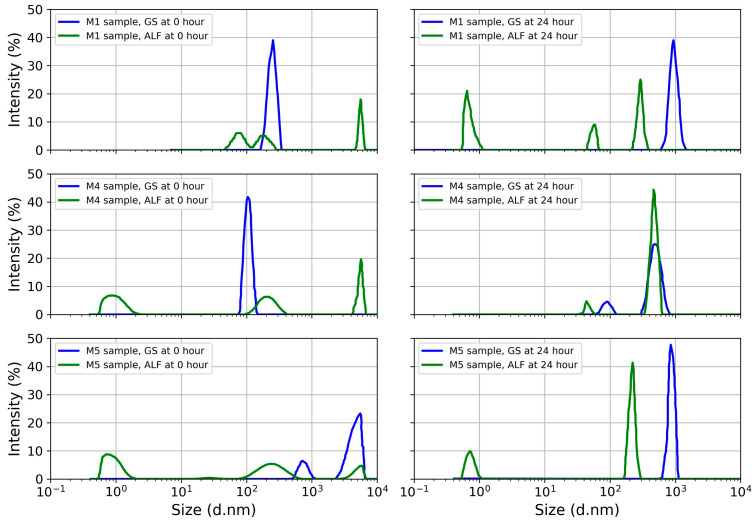

Analysis of the particle size distribution of ashfall samples M1, M4, and M5 by DLS at 0 to 24 h incubation in GS and ALF.
See this image and copyright information in PMC
