In Vivo Assessment of High-Strength and Corrosion-Controlled Magnesium-Based Bone Implants

Abstract

The biodegradable nature of magnesium in aqueous mediums makes it an attractive material for various biomedical applications when it is not recommended that the material stay permanently in the body. Some of the main challenges that hinder the use of magnesium for bone fracture repair are its limited mechanical strength and fast corrosion rates. To this end, we developed a novel Mg-Zn-Ca-Mn-based alloy and post-fabrication methods that can deliver high-strength and corrosion-controlled implant materials to address these challenges. This study is focused on assessing the in vitro corrosion and in vivo biocompatibility of the developed magnesium-based alloy and post-fabrication processes. The developed heat treatment process resulted in an increase in the microhardness from 71.9 ± 5.4 HV for the as-cast Mg alloy to as high as 98.1 ± 6.5 HV for the heat-treated Mg alloy, and the ceramic coating resulted in a significant reduction in the corrosion rate from 10.37 mm/yr for the uncoated alloy to 0.03 mm/yr after coating. The in vivo assessments showed positive levels of biocompatibility in terms of degradation rates and integration of the implants in a rabbit model. In the rabbit studies, the implants became integrated into the bone defect and showed minimal evidence of an immune response. The results of this study show that it is possible to produce biocompatible Mg-based implants with stronger and more corrosion-controlled properties based on the developed Mg-Zn-Ca-Mn-based alloy and post-fabrication methods.

Keywords: biodegradable; bone implants; in vitro; in vivo; magnesium.

Figure 1

Intra-operative image of the Mg-1.2Zn-0.5Ca alloy implant being placed into lateral femoral condyle of a rabbit.

Figure 2

SEM imaging of the surface microstructure for uncoated and MAO-coated samples of Mg-1.2Zn-0.5Ca alloy; (A) shows the as-cast microstructure, (B) shows the as heat-treated microstructure with a finer dispersion of the secondary intermetallic phases into the grains, and (C,D) show the porous MAO coating layer on the coated group.

Figure 3

(A) PDP Tafel curves comparison between different Mg-1.2Zn-0.5Ca-0.5Mn alloy groups (as-cast, heat-treated, heat-treated and MAO-coated), showing an enhancement in the corrosion characteristics after heat treatment and a significant enhancement after the MAO coating. (B) microhardness measurements of different Mg-1.2Zn-0.5Ca-0.5Mn alloy groups (as-cast and heat-treated), showing a significant enhancement in the microhardness after heat treatment.

Figure 4

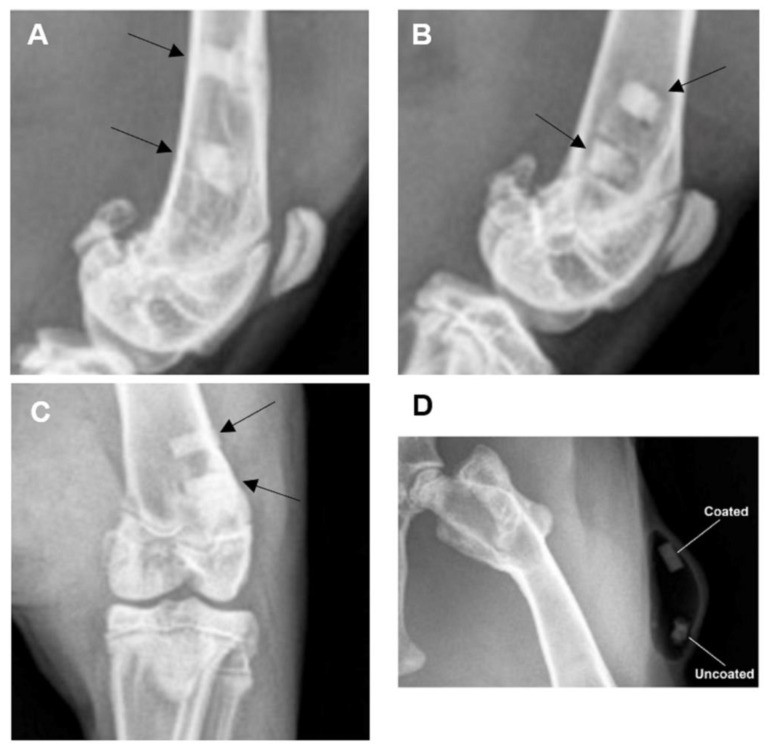

Radiographs demonstrating presence and location of experimental implants. (A) Laterally oriented radiographic image (rabbit #24, timepoint = one month). (B) Laterally oriented radiographic image (rabbit #25, timepoint = one month). (C) Cranial-caudally oriented radiographic image (rabbit #27, timepoint = two months). Black arrows aimed at experimental implants within the bone (distal femur). (D) Radiographs demonstrating faster degradation rates for the uncoated implants with pocket resulting from hydrogen evolution (rabbit #27, timepoint = one month).

Figure 5

Representative images of post-mortem examinations. (A) Image displays the superficial portions of two experimental implants that are within the bone of a partially dissected left hindlimb. Implants are still covered with connective tissue. (B) Image displays two experimental implants within bone (distal femur). Connective tissue has been dissected to expose bone and implants.

Figure 6

Histology images of bone sections containing uncoated implants, one-month timepoint. H&E-stained sections of bone samples demonstrate defects (with implant removed) visualized as (relatively) circular areas of empty (white) space, surrounded by tissue (bone, connective tissue, adipose). (A,D): Evidence of fibrous connective tissue formation around edge of implant site with moderate lymphoplasmacytic infiltration. (A): 5× magnification, (D): 10× magnification. (B,C): Minimal connective tissue formation within implant site. (B): 5× magnification, (C): 10× magnification. (E,F): Evidence of moderate fibrous connective tissue formation and moderate lymphoplasmacytic cellular infiltration. E: 5× magnification, (F): 10× magnification. Black arrows aimed at areas of (fibrous) connective tissue. Implant sites labeled “implant site.”

Figure 7

Histology images of bone sections containing coated implants and soft tissue response to uncoated implants, one-month timepoint. H&E-stained sections of bone samples demonstrate defects (with implant removed) visualized as (relatively) circular areas of empty (white) space, surrounded by tissue (bone, connective tissue, adipose, and cartilage). (A,B): Demonstrate bone defect site with minimal connective tissue formation and mild lymphoplasmacytic cellular infiltration. Vascularization prominent throughout connective tissue. (A): 5× magnification, (B): 10× magnification. (C,D): Section containing bone defect site and overlying soft tissues. Demonstrates vascularization throughout soft tissues and presence of healthy connective tissue with minimal evidence of lymphoplasmacytic cellular infiltration. (C): 5× magnification, (D): 10× magnification. Black arrow aimed at connective tissue. Implant sites labeled “implant site.”
