. 2023;18(2):1351-1368.
doi: 10.1007/s42835-022-01239-4. Epub 2022 Oct 10.

Smart City IoT System Network Level Routing Analysis and Blockchain Security Based Implementation

Samuyelu Bommu  1 , Aravind Kumar M  2 , Kiranmai Babburu  3 , Srikanth N  4 , Lakshmi Narayana Thalluri  5 , V Ganesh G  6 , Anitha Gopalan  7 , Purna Kishore Mallapati  8 , Koushik Guha  9 , Hayath Rajvee Mohammad  10 , S Kiran S  11
Affiliations

Smart City IoT System Network Level Routing Analysis and Blockchain Security Based Implementation

Samuyelu Bommu et al. J Electr Eng Technol. 2023.

Abstract

This paper demonstrates, network-level performance analysis and implementation of smart city Internet of Things (IoT) system with Infrastructure as a Service (IaaS) level cloud computing architecture. The smart city IoT network topology performance is analyzed at the simulation level using the NS3 simulator by extracting most of the performance-deciding parameters. The performance-enhanced smart city topology is practically implemented in IaaS level architecture. The intended smart city IoT system can monitor the principal parameters like video surveillance with a thermal camera (to identify the virus-like COVID-19 infected people), transport, water quality, solar radiation, sound pollution, air quality (O3, NO2, CO, Particles), parking zones, iconic places, E-suggestions, PRO information over low power wide area network in 61.88 km × 61.88 km range. Primarily we have addressed the IoT network-level routing and quality of service (QoS) challenges and implementation level security challenges. The simulation level network topology analysis is performed to improve the routing and QoS. Blockchain technology-based decentralization is adopted to enrich the IoT system performance in terms of security.

Keywords: Blockchain technology; IoT technology; Network simulation; Smart applications.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
IoT devices usage growth in billion (Source: Statista)
Fig. 2
Fig. 2
Smart city parameters
Fig. 3
Fig. 3

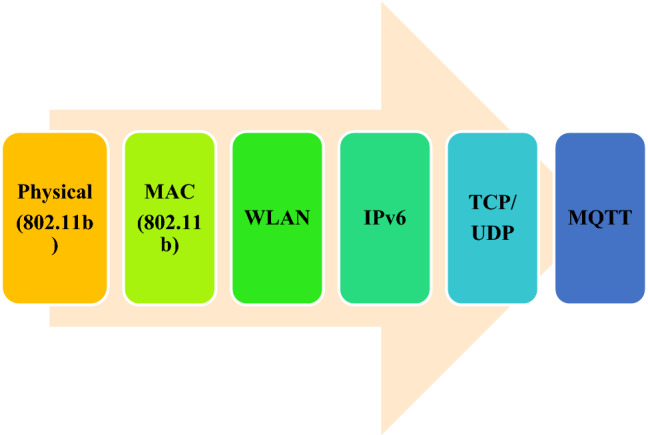

Smart city IoT system protocol stack
Fig. 4
Fig. 4
Network topology for Vijayawada city, Andhra Pradesh, India
Fig. 5
Fig. 5
Network simulation parameters, a Throughput (MBPs), b Average Power Consumption (mW), c Delay(ms), d Packet Delivery Ratio, e Latency
Fig. 6
Fig. 6
Model structure of smart city IoT
Fig. 7
Fig. 7
Smart city, a IoT system with centralized server, b Blockchain enabled IoT system with distributed server
Fig. 8
Fig. 8
Smart city IoT application, a home page, b location based information monitoring
See this image and copyright information in PMC

References

    1. Rahman MA, Rashid MM, Hossain MS, Hassanain E, Alhamid MF, Guizani M (2018) Blockchain and IoT-based cognitive edge framework for sharing economy services in a smart city. IEEE Access 7:18611–18621
    1. Santos PM, Rodrigues JGP, Cruz SB, Lourenc T ¸ d’Orey OPM, Luis Y, Rocha C, Sousa S, Cris´ostomo S, Queir´os C, Sargento S, Aguiar A, Barros J (2018) PortoLivingLab: an IoT-based sensing platform for smart cities. IEEE Internet of Things Journal 5(2):523–532
    1. Kumar K, Saraswat S, Jindal SK et al (2021) Experimental validation of an iot based device selective power cut mechanism using power line carrier communication for smart management of electricity. J Electr Eng Technol 16:67–77
    1. Xu B, Da Xu L, Cai H, Xie C, Hu J, Bu F (2014) Ubiquitous Data accessing method in IoT-based information system for emergency medical services. IEEE Tran Ind Inf 10(2)
    1. Hebal S, Harous S, Mechta D (2021) Energy routing challenges and protocols in energy internet: a survey. J Electr Eng Technol 16:3197–3212
