. 2023 Aug 5;195(9):1018.
doi: 10.1007/s10661-023-11576-0.

Using AI and BES/MFC to decrease the prediction time of BOD5 measurement

Ivan Medvedev  1 , Mariya Kornaukhova  1 , Christoforos Galazis  2 , Bálint Lóránt  3 , Gábor Márk Tardy  3 , Alexander Losev  1 , Igor Goryanin  4   5
Affiliations

Using AI and BES/MFC to decrease the prediction time of BOD5 measurement

Ivan Medvedev et al. Environ Monit Assess. .

Abstract

Biochemical oxygen demand (BOD) is one of the most important water/wastewater quality parameters. BOD5 is the amount of oxygen consumed in 5 days by microorganisms that oxidize biodegradable organic materials in an aerobic biochemical manner. The primary objective of this research is to apply microbial fuel cells (MFCs) to reduce the time requirement of BOD5 measurements. An artificial neural network (ANN) has been created, and the predictions we obtained for BOD5 measurements were carried out within 6-24 h with an average error of 7%. The outcomes demonstrated the viability of our AI MFC/BES BOD5 sensor in real-life scenarios.

Keywords: Biochemical Oxygen demand; Biosensor; Microbial fuel cell; Neural network.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

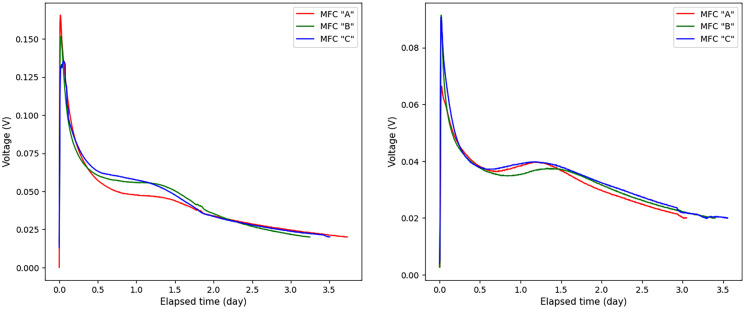

Fig. 1
Fig. 1
Several typical examples of voltage variation over time, when domestic wastewater was used as a sample for MFC

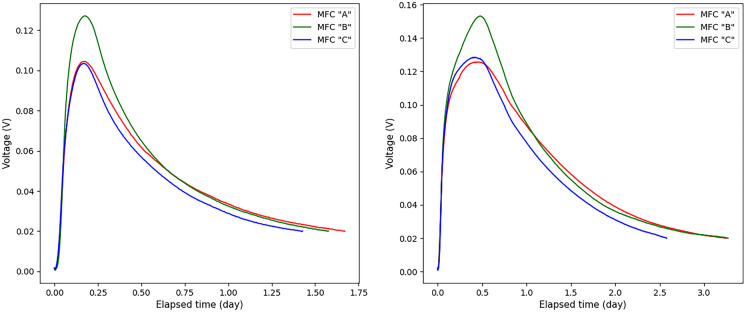

Fig. 2
Fig. 2
Several typical examples of voltage variation over time, are when brewery wastewater was used as samples for MFC
Fig. 3
Fig. 3
Schematic drawing of neural network architectures for a direct prediction approach. Where the input, dense, dropout, and output values correspond to the values from Table 1. After the hidden layers, the neuron values pass through the Relu activation function

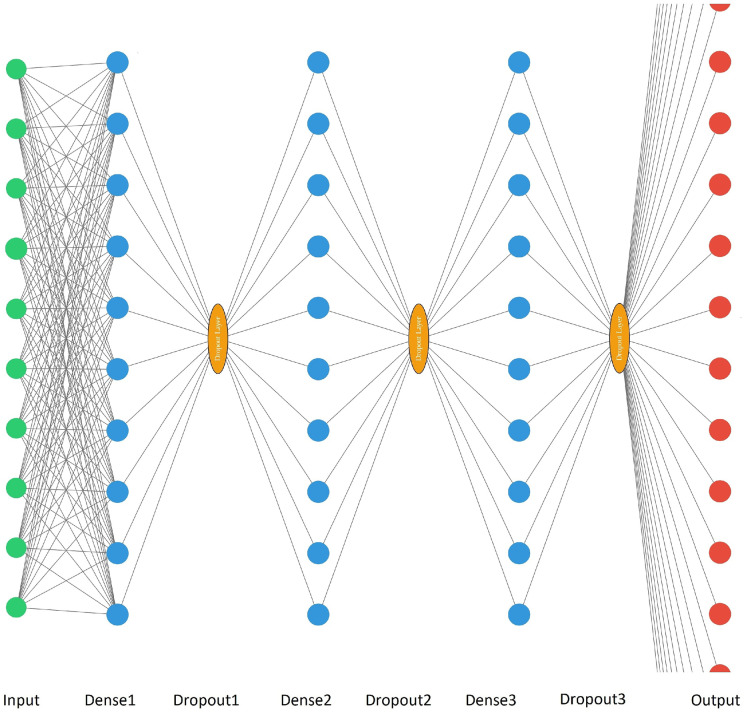

Fig. 4
Fig. 4
Schematic drawing of neural network architectures for an indirect prediction approach. Where the input, dense, dropout, and output values correspond to the values from Table 2. After the hidden layers, the neuron values pass through the Relu activation function

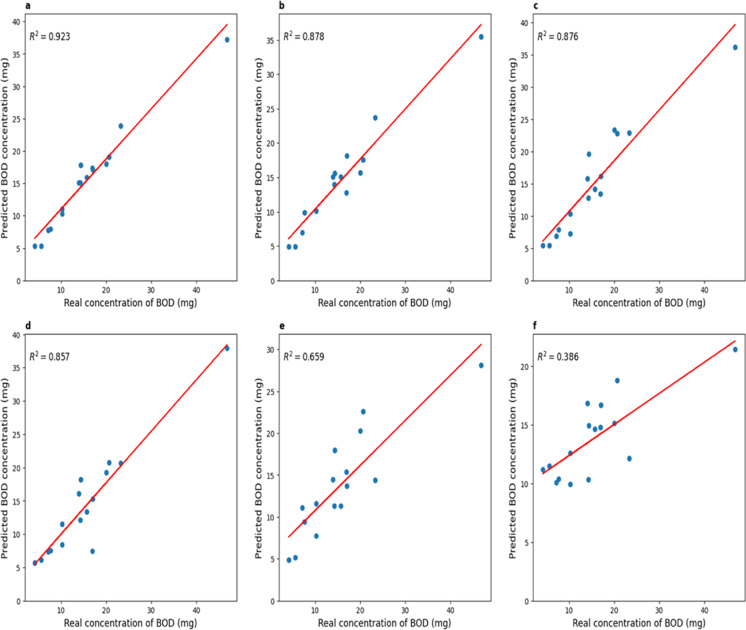

Fig. 5
Fig. 5
Plots comparing actual and predicted BOD5 values (for the direct prediction approach). a When using 24-h voltage data; b. for 16 h; c 12 h before; d. 8 h; e 6 h; f for 2 h
Fig. 6
Fig. 6
A few examples of the ratio of real to predicted voltage when voltage values measured over 12 h were used as input to the ANN. Blue graph—real voltage data; orange—obtained using a neural network

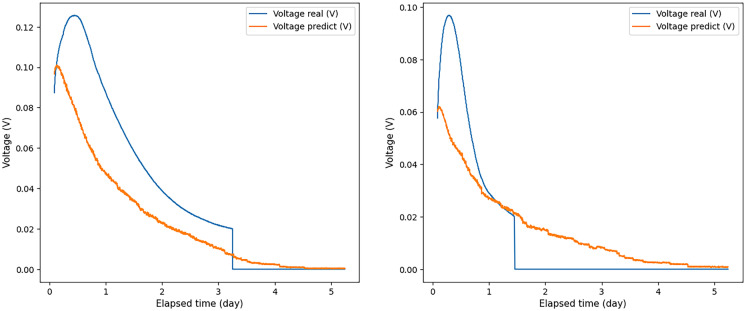

Fig. 7
Fig. 7
A few examples of the ratio of real voltage to predicted voltage, when voltage values measured over 2 h were used as input data for the ANN. Blue graph—real voltage data; orange—obtained using a neural network

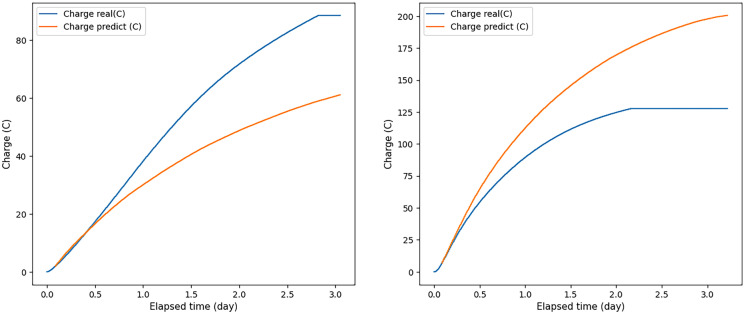

Fig. 8
Fig. 8
The ratio of the real and predicted charge, when voltage values measured over 2 h were applied to the ANN input. Blue graph—charge values obtained from real data; orange—charge values obtained from predicted data
Fig. 9
Fig. 9
The ratio of the real and predicted charge, when voltage values measured over 12 h were applied to the ANN input. Blue graph—charge values obtained from real data, orange—charge values obtained from predicted data

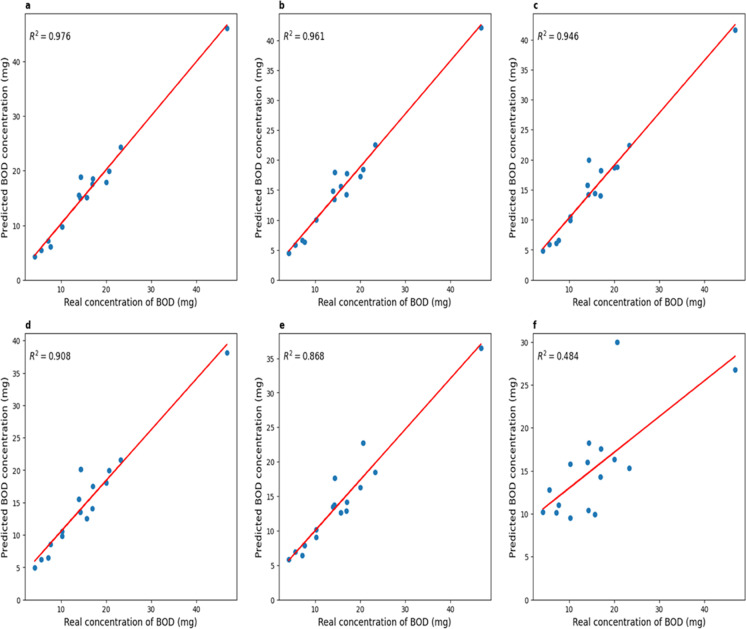

Fig. 10
Fig. 10
Plots comparing actual and predicted BOD5 values (for the indirect prediction approach). a When using 24-h voltage data; b for 16 h; c 12 h before; d 8 h; e. 6 h; f for 2 h
