. 2023 Aug 9;13(1):12927.
doi: 10.1038/s41598-023-39845-5.

Synthesis of trimetallic oxide (Fe2O3-MgO-CuO) nanocomposites and evaluation of their structural and optical properties

A H Al-Hammadi  1 , Adnan Alnehia  1   2 , Annas Al-Sharabi  2 , Hisham Alnahari  3 , Abdel-Basit Al-Odayni  4
Affiliations

Synthesis of trimetallic oxide (Fe2O3-MgO-CuO) nanocomposites and evaluation of their structural and optical properties

A H Al-Hammadi et al. Sci Rep. .

Abstract

In this paper, tri-phase Fe2O3-MgO-CuO nanocomposites (NCs) and pure CuO, Fe2O3 and MgO nanoparticles (NPs) were prepared using sol-gel technique. The physical properties of the prepared products were examined using SEM, XRD, and UV-visible. The XRD data indicated the formation of pure CuO, Fe2O3 and MgO NPs, as well as nanocomposite formation with Fe2O3 (cubic), MgO (cubic), and CuO (monoclinic). The crystallite size of all the prepared samples was calculated via Scherrer's formula. The energy bandgap of CuO, Fe2O3 and MgO and Fe2O3-MgO-CuO NCs were computed from UV-visible spectroscopy as following 2.13, 2.29, 5.43 and 2.96 eV, respectively. The results showed that Fe2O3-MgO-CuO NCs is an alternative material for a wide range of applications as optoelectronics devices due to their outstanding properties.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Figure 1
Figure 1

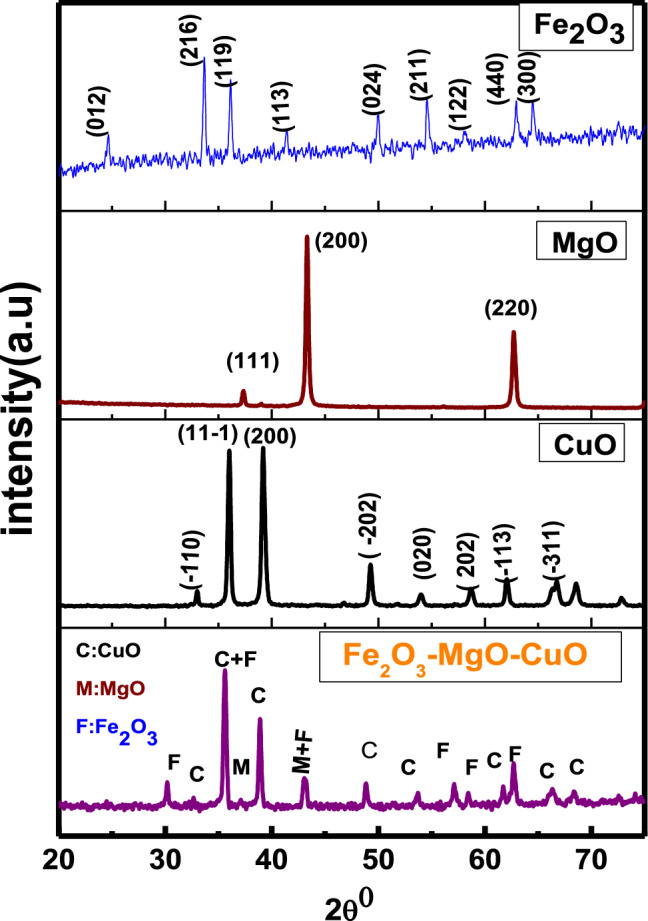

XRD patterns of CuO, Fe2O3, MgO and Fe2O3–MgO–CuO nanocomposites.
Figure 2
Figure 2
SEM images of (A) CuO, (B) Fe2O3, (C) MgO, (D) Fe2O3–MgO–CuO nanocomposites. Inserts are magnification of the shown selected area.
Figure 3
Figure 3

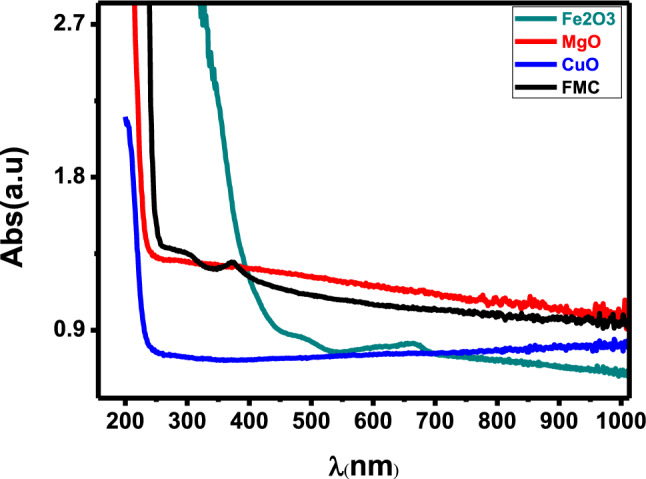

Absorption spectra of CuO, Fe2O3, MgO and Fe2O3–MgO–CuO (FMC) nanocomposites.
Figure 4
Figure 4

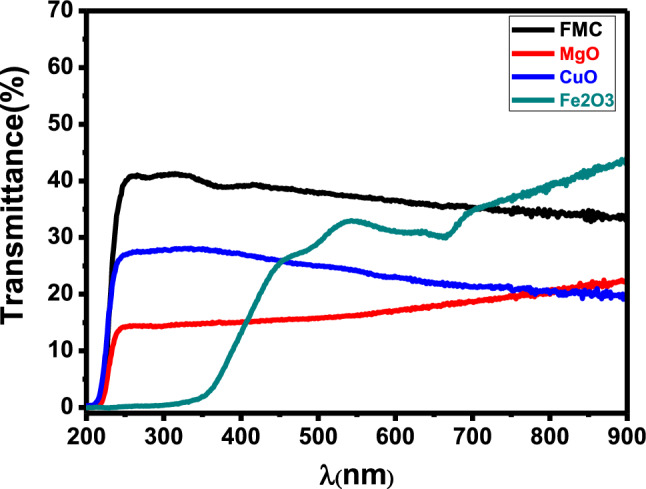

Transmission spectra of CuO, Fe2O3, MgO and Fe2O3–MgO–CuO (CFM) nanocomposites.
Figure 5
Figure 5

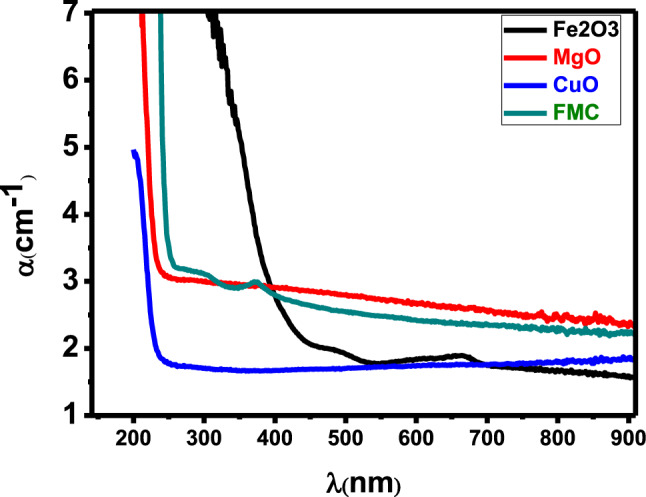

Absorption coefficient versus wavelength of CuO, Fe2O3, MgO and Fe2O3–MgO–CuO (FMC) nanocomposites.
Figure 6
Figure 6

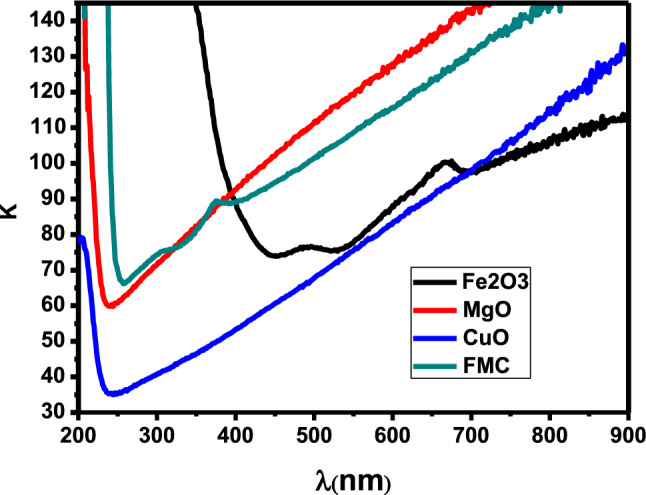

Extinction coefficient (k) versus wavelength of CuO, Fe2O3, MgO and Fe2O3–MgO–CuO (FMC) nanocomposites.
Figure 7
Figure 7

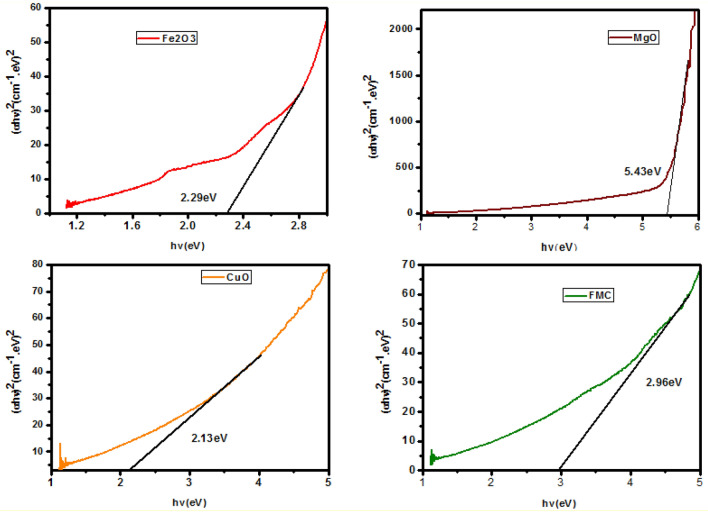

Optical bandgap plots for CuO, Fe2O3, MgO and CuO–Fe2O3–MgO (FMC) nanocomposite.
See this image and copyright information in PMC

References

    1. Rajeh A, Ragab HM, Abutalib MM. Co doped ZnO reinforced PEMA/PMMA composite: Structural, thermal, dielectric and electrical properties for electrochemical applications. J. Mol. Struct. 2020;1217:128447.
    1. Yulizar Y, Apriandanu DOB, Jabbar JLA. Facile one-pot preparation of V2O5–Fe2O3 nanocomposites using Foeniculumvulgare extracts and their catalytic property. Inorg. Chem. Commun. 2021;123:108320.
    1. Sun M, Lei Y, Cheng H, Ma J, Qin Y, Komarneni S, Kong Y. Mg doped CuO–Fe2O3 composites activated by persulfate as highly active heterogeneous catalysts for the degradation of organicpollutants. J. Alloys Compd. 2020;825:154036.
    1. Batool S, Hasan M, Dilshad M, Zafar A, Tariq T, Wu Z, Chen R, Hassan SG, Munawar T, Iqbal F, Saif MS, Waqas M, Shu X. Green synthesis of Cordia myxa incubated ZnO, Fe2O3, and Co3O4 nanoparticle: Characterization, and their response as biological and photocatalytic agent. Adv. Powder Technol. 2022;33:103780.
    1. Alnehia, A., Al-Sharabi, A., Al-Hammadi, A., Al-Odayni, A.-B., Alramadhan, S.A., Alodeni, R.M. Phyto-mediated synthesis of silver-doped zinc oxide nanoparticles from Plectranthus barbatus leaf extract: Optical, morphological, and antibacterial properties. Biomass Convers. Bioref. 1–13 (2023).
