Review
. 2023 Jul 20;57(9):1376-1386.
doi: 10.1007/s43465-023-00947-x. eCollection 2023 Sep.

Posterior Tibial Slope in Anterior Cruciate Ligament Surgery: A Systematic Review

Vipul Mandalia  1 , Morgan Bayley  2 , Nivraj Bhamber  1 , Simon Middleton  1 , James Houston  1
Affiliations
Review

Posterior Tibial Slope in Anterior Cruciate Ligament Surgery: A Systematic Review

Vipul Mandalia et al. Indian J Orthop. .

Abstract

Background: While the literature suggests a correlation between posterior tibial slope and sagittal stability of the knee, there is a lack of consensus relating to how to measure the slope, what a normal slope value would be, and which critical values should guide extra surgical treatment. We performed a systematic literature review looking at the posterior tibial slope and cruciate ligament surgery. Our aims were to define a gold standard measurement technique of posterior tibial slope, as well as determining its normal range and the important values for consideration of adjuncts during cruciate ligament surgery.

Methods: Electronic searches of MEDLINE (PubMed), CINAHL, Cochrane, Embase, ScienceDirect, and NICE in June 2020 were completed. Inclusion criteria were original studies in peer-reviewed English language journals. A quality assessment of included studies was completed using the Methodological Index for Non-Randomized Studies (MINORS) Criteria.

Results: Two-hundred and twenty-one papers were identified; following exclusions 34 papers were included for data collection. The mean MINORS score was 13.8 for non-comparative studies and 20.4 for comparative studies, both indicating fair to good quality studies. A large variation in the posterior tibial slope measurement technique was identified, resulting in a wide range of values reported. A significant variation in slope value also existed between different races, ages and genders.

Conclusion: Cautiously, the authors suggest a normal range of 6-12º, using the proximal tibial axis at 5 and 15 cms below the joint. We suggest 12º as a cut-off value for slope-reducing osteotomy as an adjunct to revision ligament reconstruction.

Keywords: ACL; Knee; Ligament; Tibia.

PubMed Disclaimer

Conflict of interest statement

Conflict of InterestThe authors declare that they have no conflict of interest.

Figures

Fig. 1
Fig. 1

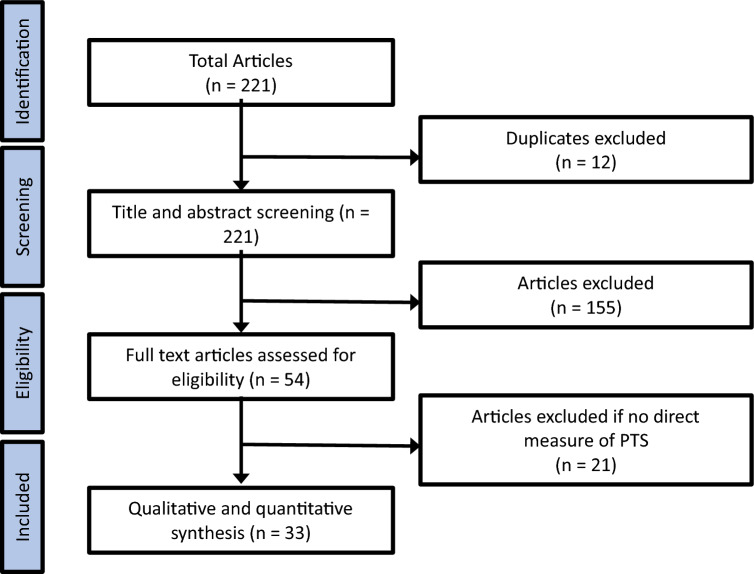

PRISMA Flow diagram of studies’ screening and selection
Fig. 2
Fig. 2
Measurement of posterior tibial slope using mechanical axis on a lateral radiograph
Fig. 3
Fig. 3
Different tibial axes, MA Mechanical Axis, ATC Anterior Tibial Axis, PTC Posterior Tibial Axis, PTA Proximal Tibial Axis, CTA Central Tibial Axis and FSA Fibular Shaft Axis
Fig. 4
Fig. 4
Hudek’s technique for axis calculation with medial and lateral PTS measurement
Fig. 5
Fig. 5
Sagittal MRI comparing Hudek’s technique and a method using two landmarks at approximately 5 and 15 cm distal to the joint to calculate the proximal tibial axis
See this image and copyright information in PMC

References

    1. Abram SG, Price AJ, Judge A, Beard DJ. Anterior cruciate ligament (ACL) reconstruction and meniscal repair rates have both increased in the past 20 years in England: Hospital statistics from 1997 to 2017. British Journal of Sports Medicine. 2020;54(5):286–291. doi: 10.1136/bjsports-2018-100195. - DOI - PubMed
    1. Webb JM, Salmon LJ, Leclerc E, Pinczewski LA, Roe JP. Posterior tibial slope and further anterior cruciate ligament injuries in the anterior cruciate ligament-reconstructed patient. American Journal of Sports Medicine. 2013;41(12):2800–2804. doi: 10.1177/0363546513503288. - DOI - PubMed
    1. Christensen JJ, Krych AJ, Engasser WM, Vanhees MK, Collins MS, Dahm DL. Lateral tibial posterior slope is increased in patients with early graft failure after anterior cruciate ligament reconstruction. American Journal of Sports Medicine. 2015;43(10):2510–2514. doi: 10.1177/0363546515597664. - DOI - PubMed
    1. Han HS, Chang CB, Seong SC, Lee S, Lee MC. Evaluation of anatomic references for tibial sagittal alignment in total knee arthroplasty. Knee Surgery, Sports Traumatology, Arthroscopy. 2008;16(4):373–377. doi: 10.1007/s00167-008-0486-1. - DOI - PubMed
    1. Zhang Y, Wang J, Xiao J, Zhao L, Yan G, et al. Measurement and comparison of tibial posterior slope angle in different methods based on three-dimensional reconstruction. The Knee. 2014;21(3):694–694. doi: 10.1016/j.knee.2014.01.008. - DOI - PubMed
